OPTICHILL Chillers
Chillers
18
Installation & Maintenance : 6564868 08/2008
Installation Data

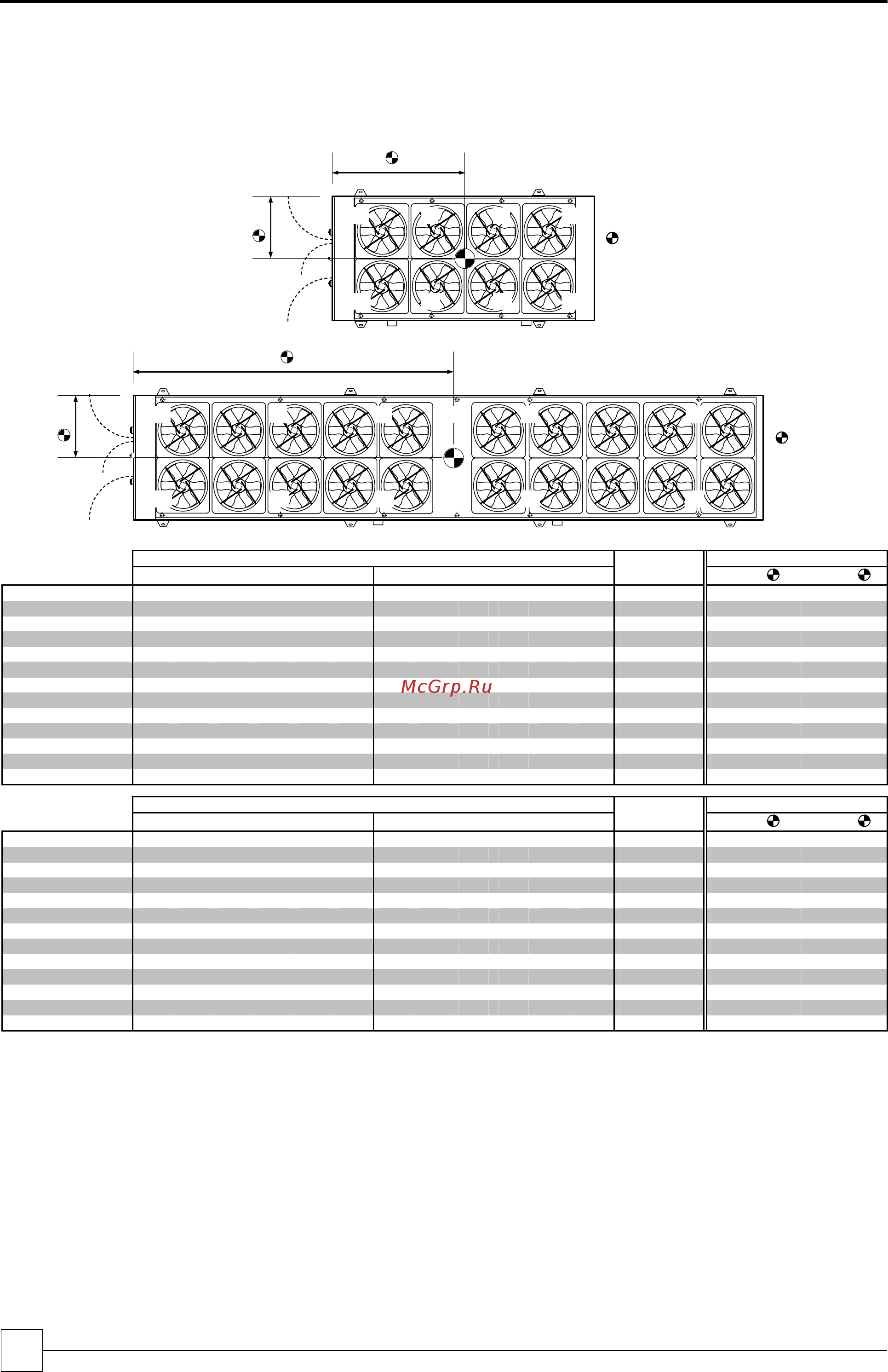

WEIGHTS, POINT LOADINGS & CENTRE OF GRAVITY (C OF G) - NO PUMPS
High Efficiency Plus
1
2
L1
R1
L2
R
2
L3
R3
L4
R4
= (C of G)
1
2
L1 L
2
L3 L4
R1 R
2
R3 R4
L5 L
6
R5 R
6
= C of G
Point Loadings (kg) C of G (mm)
L1 L2 L3 L4 L5 L6 R1 R2 R3 R4 R5 R6
Operating
Weight (kg)
1 2
OPC500HE+D8 670 700 690 480 (1) (1) 920 960 940 650 (1) (1) 6010 1265 2225
OPC525HE+D10 760 890 780 370 (1) (1) 1000 1180 1030 490 (1) (1) 6500 1245 2510
OPC550HE+D10 760 890 780 370 (1) (1) 1000 1180 1040 490 (1) (1) 6510 1245 2515
OPC600HE+D10 760 900 790 370 (1) (1) 1010 1180 1040 500 (1) (1) 6550 1245 2515
OPC650HE+D10 770 910 800 380 (1) (1) 1070 1260 1110 530 (1) (1) 6830 1270 2530
OPC700HE+D12 770 640 840 770 360 (2) 1010 840 1100 1010 480 (2) 7820 1245 3160
OPC750HE+D12 820 690 900 820 390 (2) 1060 890 1160 1060 510 (2) 8300 1235 3250
OPC800HE+D14 810 880 960 850 370 (2) 1030 1120 1220 1090 470 (2) 8800 1230 3520
OPC850HE+D14 810 880 960 850 370 (2) 1030 1120 1230 1090 470 (2) 8810 1230 3520
OPC900HE+D16 890 900 990 900 480 (2) 1120 1130 1240 1130 610 (2) 9390 1220 4280
OPC950HE+D18 920 990 1050 960 510 (2) 1140 1230 1310 1190 640 (2) 9940 1215 4480
OPC1000HE+D18 920 1000 1050 960 520 (2) 1140 1240 1310 1190 640 (2) 9970 1215 4480
OPC1100HE+D18 920 1000 1060 960 520 (2) 1150 1240 1310 1200 640 (2) 10000 1215 4480
Point Loadings (kg) C of G (mm)
L1 L2 L3 L4 L5 L6 R1 R2 R3 R4 R5 R6
Operating
Weight (kg)
1 2
OPC500HE+DQ12 740 620 810 740 350 (2) 930 780 1020 930 440 (2) 7360 1220 3215
OPC525HE+DQ12 750 630 820 750 360 (2) 940 780 1020 940 450 (2) 7440 1220 3215
OPC550HE+DQ12 750 630 820 750 360 (2) 940 790 1030 940 450 (2) 7460 1220 3220
OPC600HE+DQ12 750 630 820 750 360 (2) 940 790 1030 940 450 (2) 7460 1220 3215
OPC650HE+DQ12 750 630 820 750 360 (2) 940 790 1030 940 450 (2) 7460 1220 3220
OPC700HE+DQ14 800 870 950 840 370 (2) 1020 1110 1210 1070 470 (2) 8710 1225 3455
OPC750HE+DQ16 920 930 1030 930 500 (2) 1150 1160 1280 1160 620 (2) 9680 1215 4300
OPC800HE+DQ16 920 930 1030 930 500 (2) 1150 1160 1280 1160 620 (2) 9680 1215 4295
OPC850HE+DQ18 950 1020 1080 990 530 (2) 1160 1260 1330 1210 650 (2) 10180 1210 4480
OPC900HE+DQ20 560 640 1090 1060 910 590 690 770 1320 1290 1110 720 10750 1205 5265
OPC950HE+DQ20 570 640 1100 1070 920 600 690 780 1330 1300 1120 730 10850 1200 5280
OPC1000HE+DQ20 570 640 1100 1070 920 600 690 780 1340 1310 1120 730 10870 1200 5275
OPC1100HE+DQ20 570 640 1100 1080 920 600 690 780 1340 1310 1120 730 10880 1200 5280
(1) Only 8 fixing and loading points to this model.
(2) Only 10 fixing and loading points to this model.
(3) Based on standard unit, for units fitted with options, please contact Airedale.
(4) Operating weight includes refrigerant charge and system water volume.
