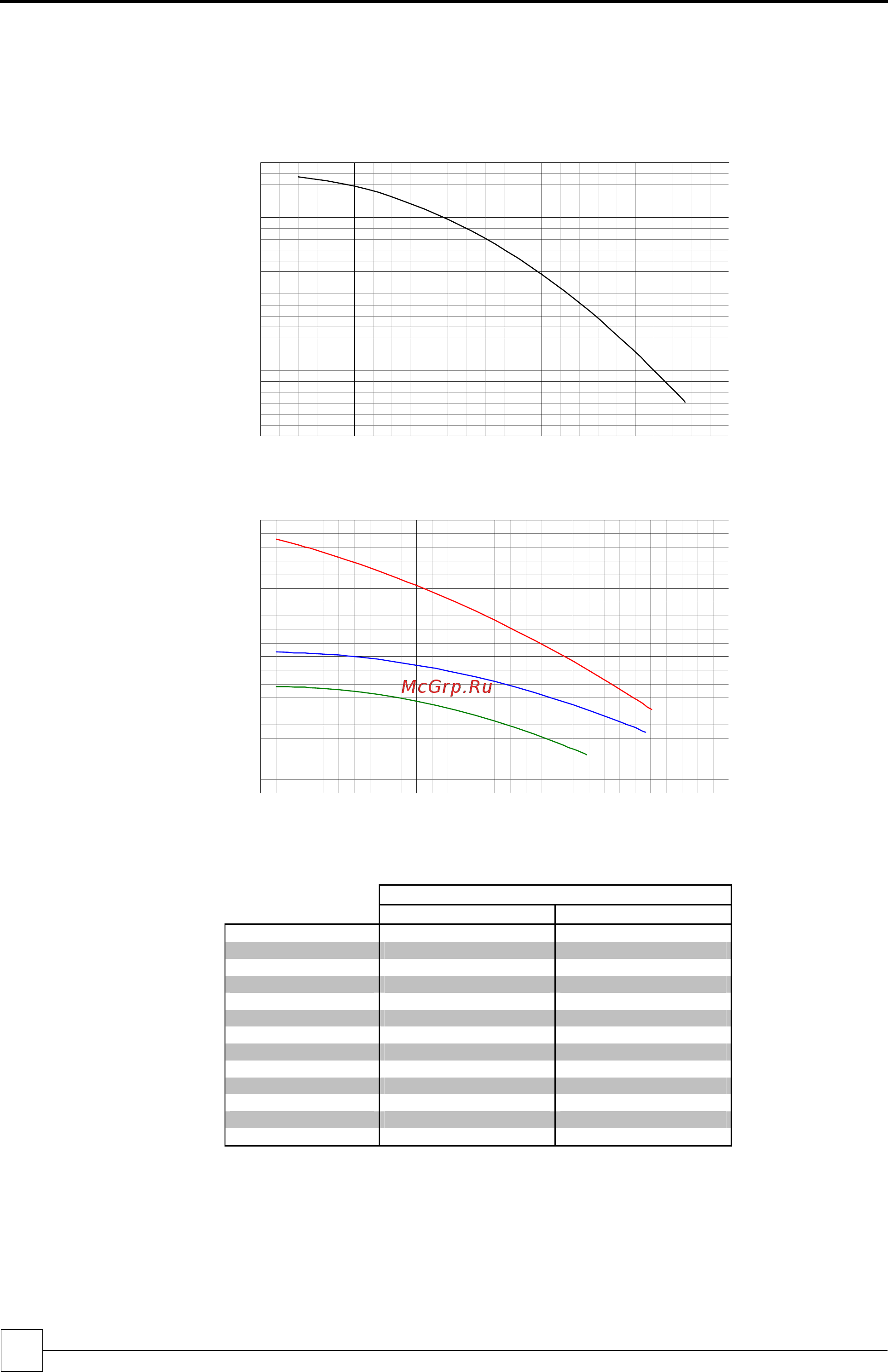

![Airedale OptiChill OPC 500 [48/60] Optichill chillers](/views2/1409430/page48/bg30.png)
OPTICHILL Chillers
Chillers
48
Installation & Maintenance : 6564868 08/2008
Commissioning Data
PUMP PACKAGES (OPTIONAL EXTRAS)
ac Motor - Fixed Speed Option
Total Pump Head Available (kPa)
80
90
100
110
120
130
10 15 20 25 30 35
1
Waterflow (l/s)
Total Pump Head Available (kPa)
50
100
150
200
250
10 20 30 40 50 60 70
2
3
4
Waterflow (l/s)
Single Head
HE / HE+
Standard Head Larger Head
OPC500 13
OPC525 1 3
OPC550 13
OPC600 1 3
OPC650 12
OPC700 4 2
OPC750 42
OPC800 4 2
OPC850 42
OPC900 4 2
OPC950 42
OPC1000 4 2
OPC1100 32
