General unit data

Mains voltage AC 230 V +10 % / -15 %

AC 120 V +10 % / -15 %

Mains frequency 50...60 Hz ±6 %

External primary fuse (Si) 6.3A (slow)

Power consumption 12 VA

Mounting orientation optional

Weight approx. 200 g

Degree of protection IP40 (to be ensured through mounting)

Perm. cable lengths max. 3m at line capacitance of 100 pF/m

Detector cable laid separately 10 m

Remote reset laid separately 20m

LMO14 LMO24 LMO44

Terminal 1 5 A 5 A 5 A

Terminals 3 and 8 3 A 5 A 5 A

Terminals 4, 5 and 10 1 A 1 A 1A

Terminals 6 1 A 1 A 2A

Flame supervision with QRB and QRC

QRB QRC

Min. detector current required (with flame) 45 µA 70 µA

Min detector current permitted (without flame) 5.5 µA 5.5 µA

Max. possible with flame (tipically) 100 µA 100 µA

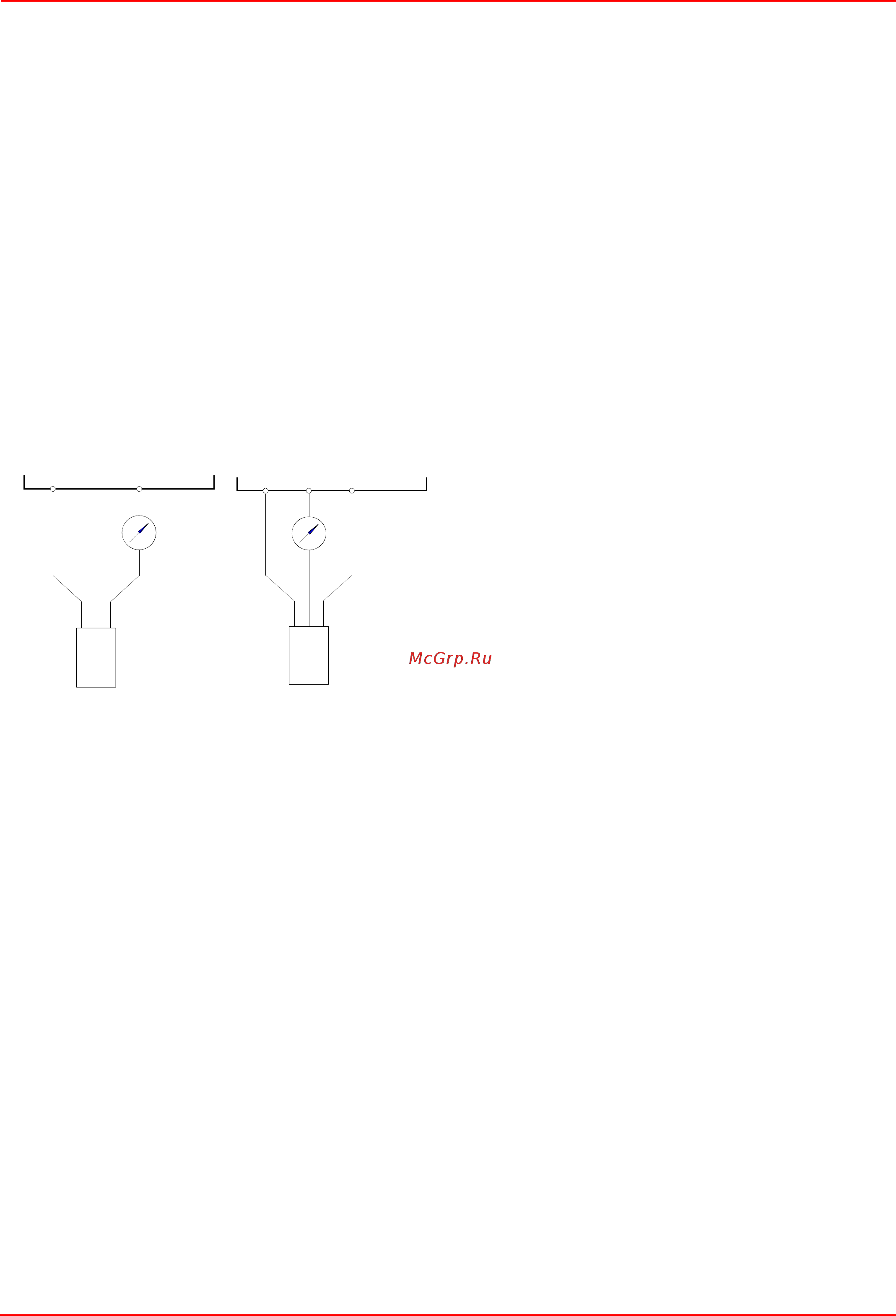

Measurement circuit for detector current

Key

µA DC DC microamperometer with an internal

resistance of 5 k

Ω max.

bl Blue

sw Black

br Brown

LMO...

µA DC

QRB...

7130v01/0700

1211

LMO...

µA DC

QRC1...

7130v02/0700
