D-Link DES-3350SR Standalone Layer 3 Switch
129

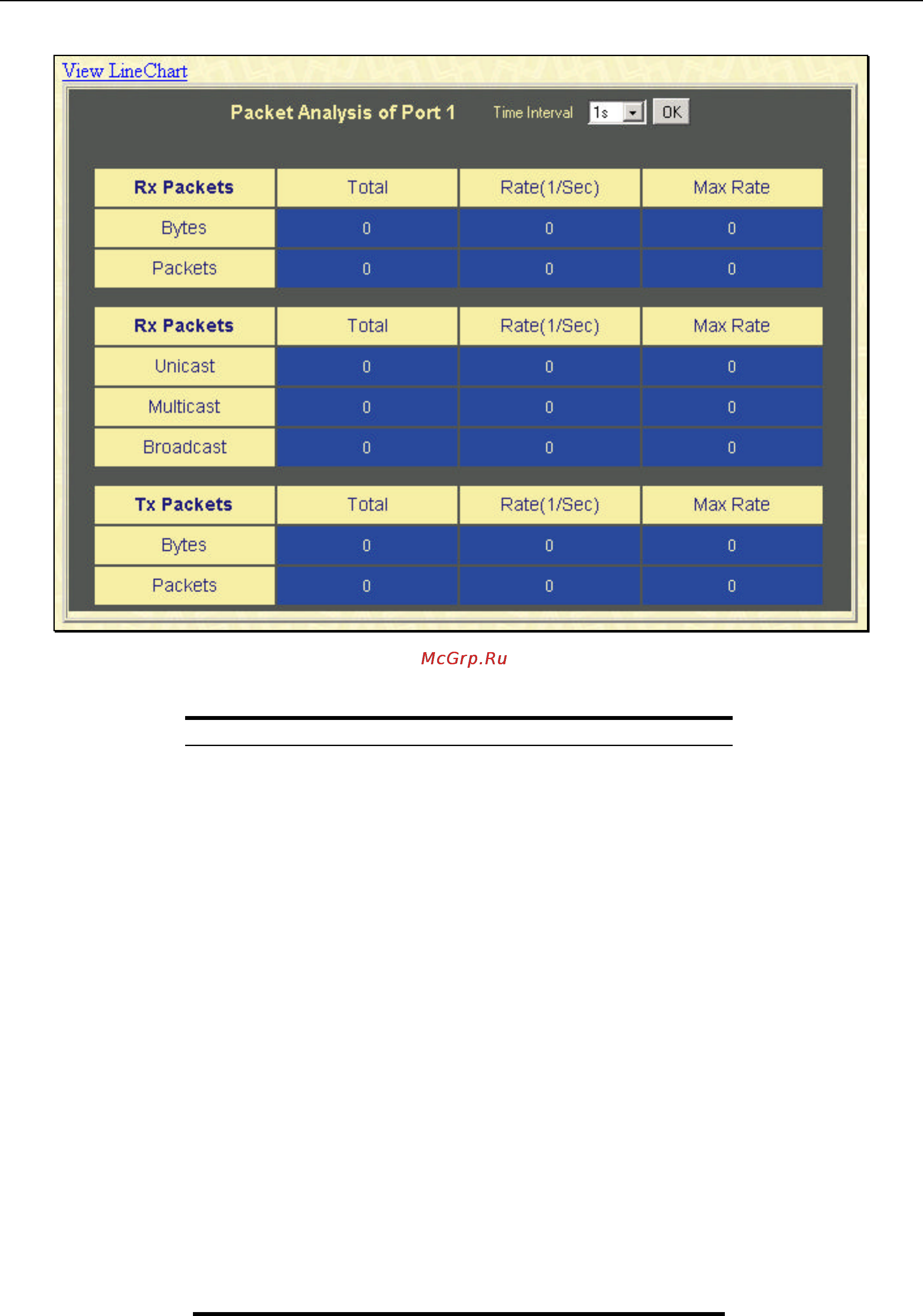

Figure 10 - 6. Rx Packets Analysis window (table for Unicast, Multicast, and Broadcast Packets)
The following fields can be set:
Parameter Description
Time Interval [1s ] Select the desired setting between 1s and 60s,
where “s” stands for seconds. The default
value is one second.
Record Number [200] Select number of times the Switch will be
polled between 20 and 200. The default value
is 20.
Unicast Counts the total number of good packets that
were received by a unicast address.
Multicast Counts the total number of good packets that
were received by a multicast address.
Broadcast Counts the total number of good packets that
were received by a broadcast address.
Show/Hide Check whether or not to display Multicast,
Broadcast, and Unicast Packets.
Clear Clicking this button clears all statistics
counters on this window.
View Table Clicking this button instructs the Switch to
display a table rather than a line graph.
View Line Chart Clicking this button instructs the Switch to
display a line graph rather than a table.
