D-Link DES-3350SR [140/184] Transmitted tx
![D-Link DES-3350SR [140/184] Transmitted tx](/views2/1043627/page140/bg8c.png)
D-Link DES-3350SR Standalone Layer 3 Switch
130
Transmitted (TX)

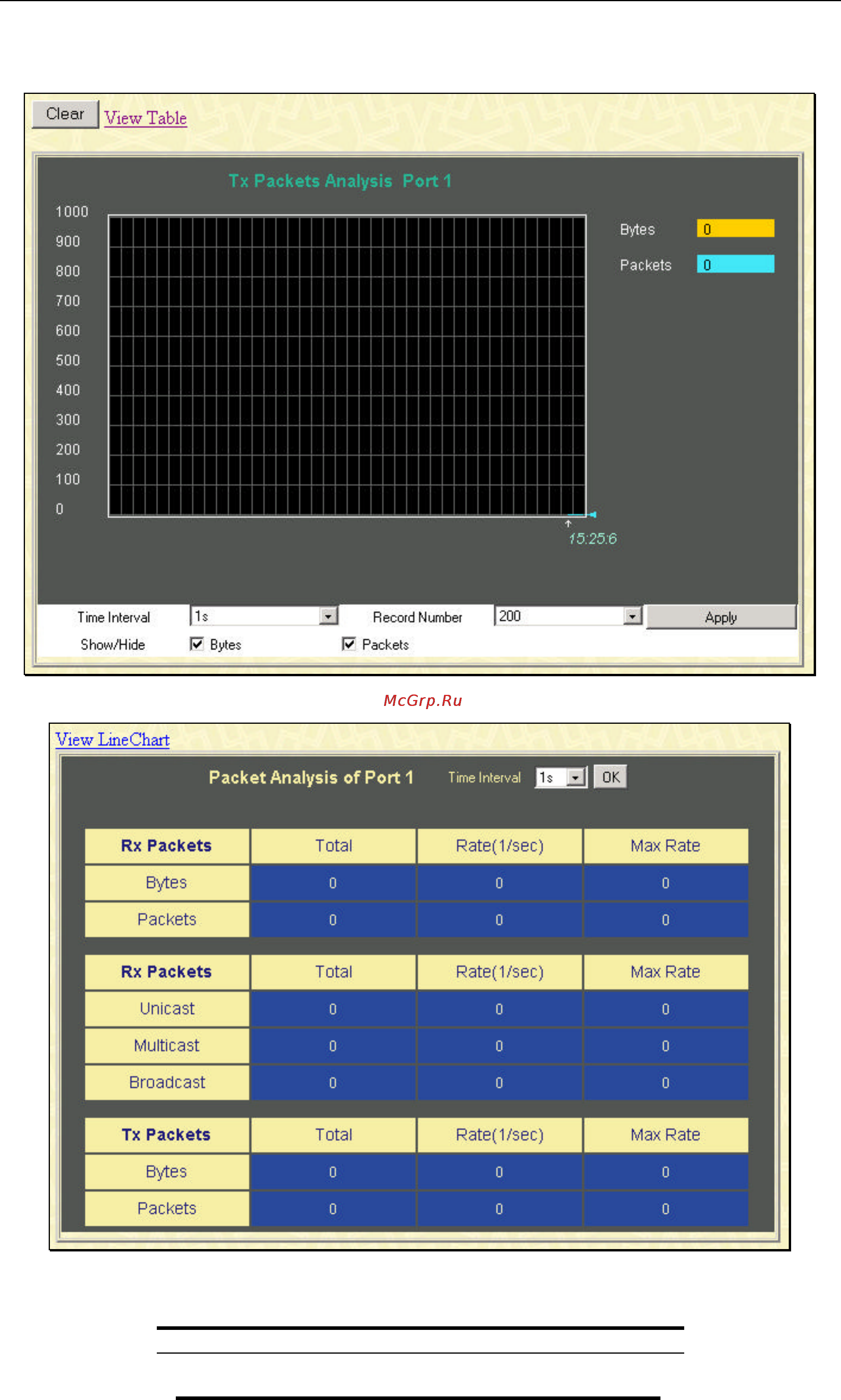

Figure 10 - 7. Tx Packets Analysis window (line graph for Bytes and Packets)
Figure 10 - 8. Tx Packets Analysis window (table for Bytes and Packets)
The following fields can be set:
Parameter Description
Time Interval [1s ] Select the desired setting between 1s and 60s,
where “s” stands for seconds. The de
fault
