D-Link DES-3350SR Standalone Layer 3 Switch

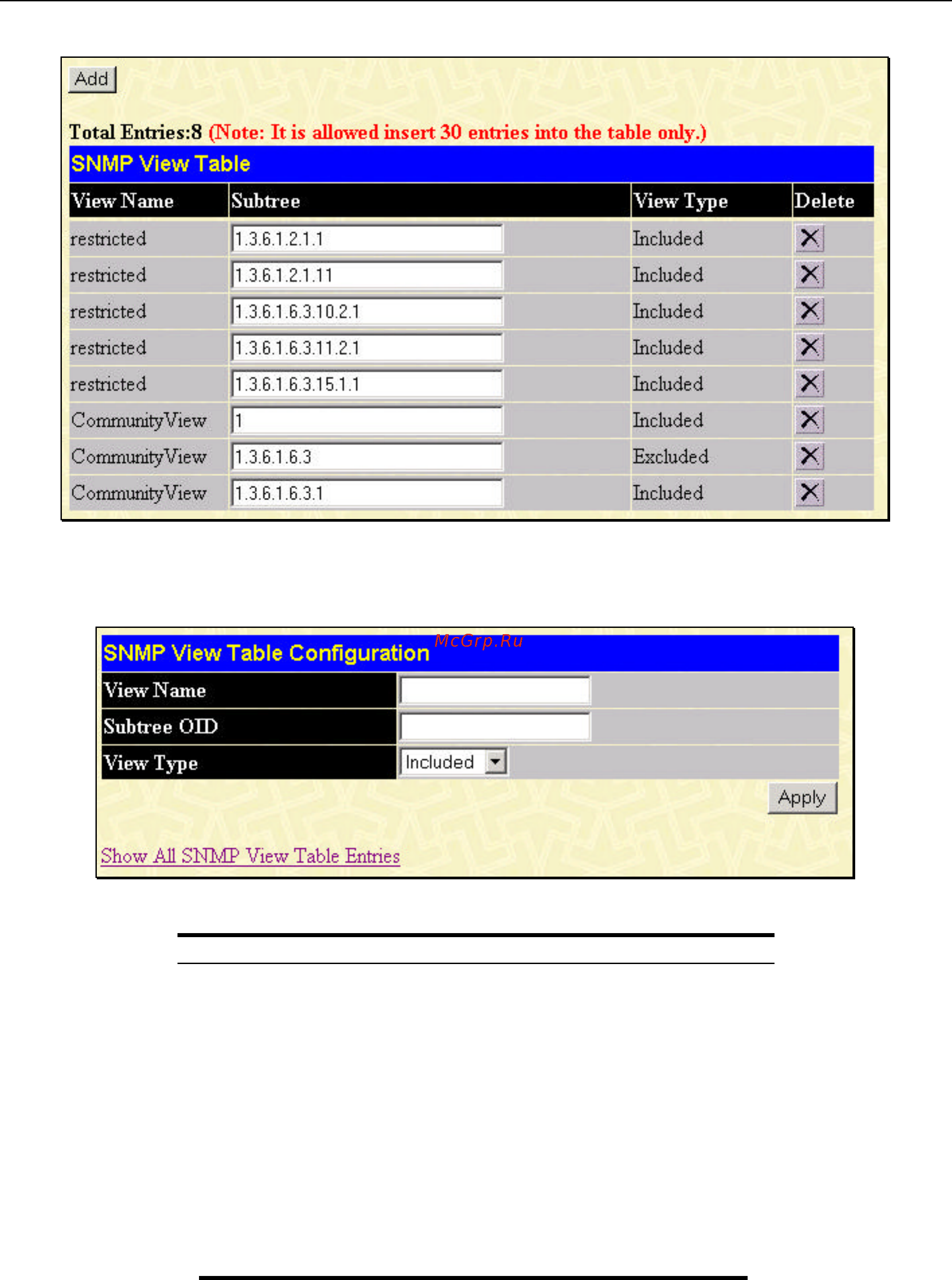

Figure 8 - 7. SNMP View Table window

To delete an existing SNMP View Table entry, click the selection button in the Delete column on the far right that corresponds to

the port you want to configure. To create a new entry, click the Add button, a separate window will appear.

Figure 8 - 8. SNMP View Table Configuration window

Parameter Description

View Name Type an alphanumeric string of up to 32

characters. This is used to identify the new

SNMP view being created.

Subtree OID

Type the Object Identifier (OID) Subtree for

the view. The OID identifies an object tree

(MIB tree) that will be included or excluded

from access by an SNMP manager.

View Type Select Included to include this object in the

list of objects that an SNMP manager can

access. Select Excluded to exclude this object

from the list of objects that an SNMP

manager can access.

SNMP Group Table

The SNMP Group created with this table maps SNMP users (identified in the SNMP User Table) to the views created in the

previous menu.
