D-Link DES-3350SR Standalone Layer 3 Switch
135

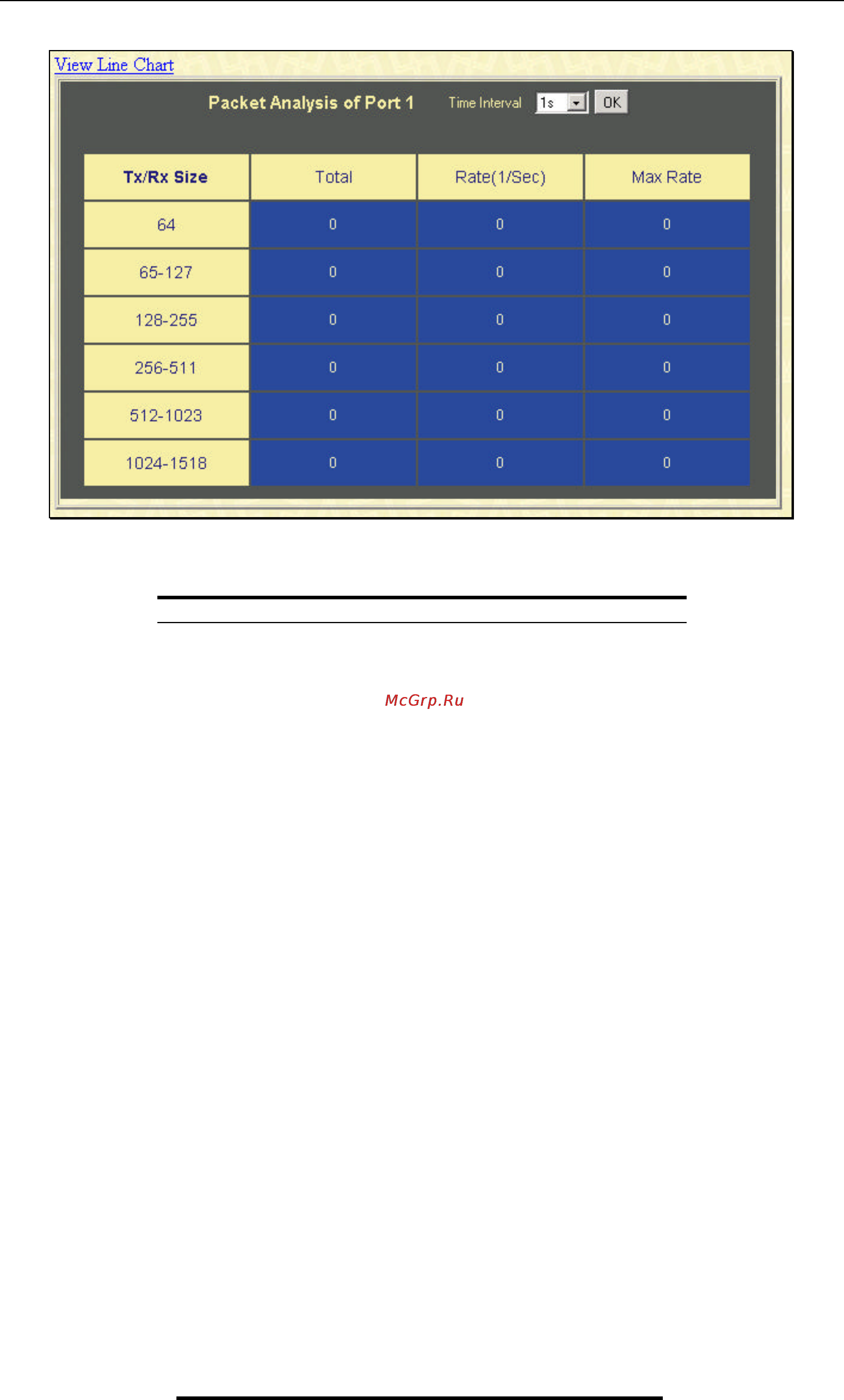

Figure 10 - 14. Rx Size Analysis window (table)
The following fields can be set:
Parameter Description
Time Interval [1s ] Select the desired setting between 1s and 60s,
where “s” stands for seconds. The default
value is one second.
Record Number [200] Select number of times the Switch will be
polled between 20 and 200. The default value
is 20.
64 The total number of packets (including bad
packets) received that were 64 octets in
length (excluding framing bits but including
FCS octets).
65-127 The total number of packets (including bad
packets) received that were between 65 and
127 octets in length inclusive (excluding
framing bits but including FCS octets).
128-255 The total number of packets (including bad
packets) received that were between 128 and
255 octets in length inclusive (excluding
framing bits but including FCS octets).
256-511 The total number of packets (including bad
packets) received that were between 256 and
511 octets in length inclusive (excluding
framing bits but including FCS octets).
512-1023 The total number of packets (including bad
packets) received that were between 512 and
1023 octets in length inclusive (excluding
framing bits but including FCS octets).
1024-1518 The total number of packets (including bad
packets) received that were between 1024
and 1518 octets in length inclusive
(excluding framing bits but including FCS
octets).
Show/Hide Check whether or not to display 64, 65-127,
128-255, 256-511, 512-1023, and 1024-1518
packets received.
