D-Link DES-3350SR Standalone Layer 3 Switch
79
RADIUS Server
The RADIUS feature of the switch allows you to facilitate centralized user administration as well as providing protection against a
sniffing, active hacker. The Web Manager offers three windows.
Click Radius Server on the PAE Access Entity folder on the Configuration menu to open the Radius Server Authentication
Setting window:

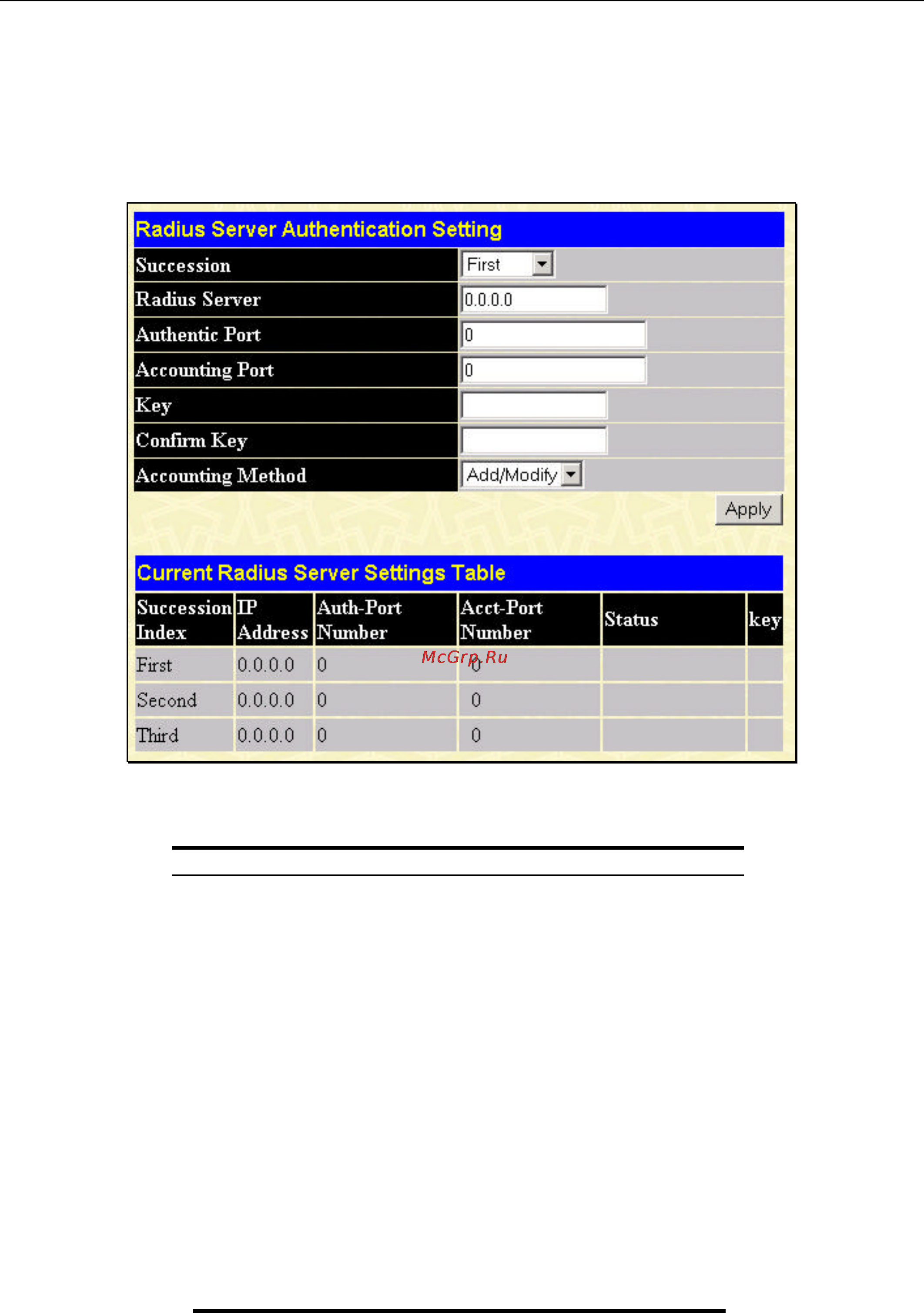

Figure 7 - 68. Radius Server Authentication Setting window
This window displays the following information:
Parameter Description
Succession <First> Choose the desired RADIUS server to
configure: First, Second or Third.
Radius Server
<0.0.0.0>
Set the RADIUS server IP.
Authentic Port <0> Set the RADIUS authentic server(s) UDP
port. The default is 1812.
Accounting Port <0> Set the RADIUS account server(s) UDP port.
The default is 1813.
Key Set the key the same as that of the RADIUS
server.
Confirm Key Confirm the shared key is the same as that of
the RADIUS server.
Accounting Method This allows you to either Add/Modify or
Delete an entry on the table in the bottom
half of this window.
