D-Link DES-3350SR Standalone Layer 3 Switch
64
Figure 7 - 47. Access Rule Table (Packet Content Mask)
To remove a previously created rule, select it and click the button. To add a new Access Rule, click the Add button:

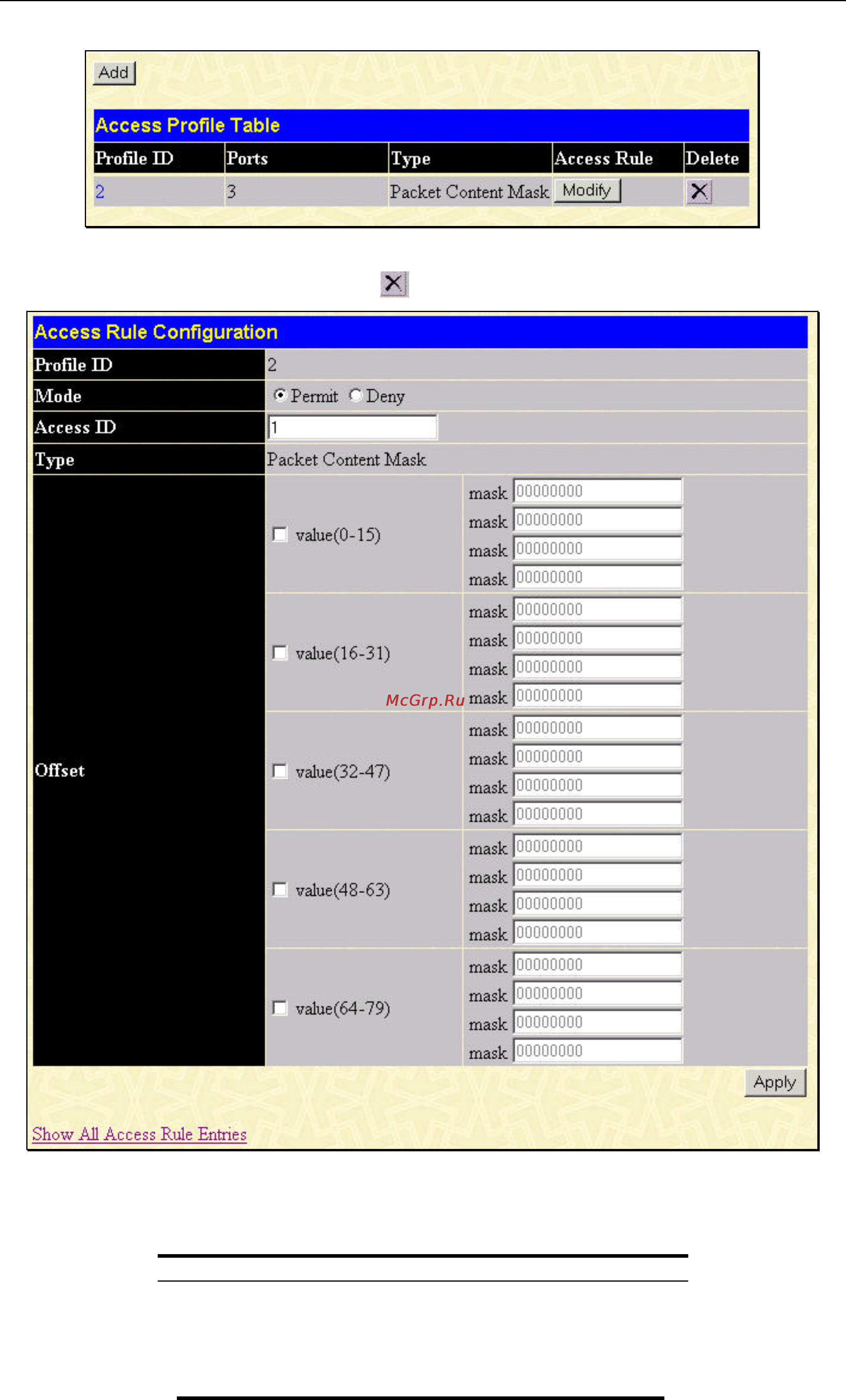

Figure 7 - 48. Access Rule Configuration window (Packet Content Mask)
To set the Access Rule for the Packet Content Mask, adjust the following parameters and click Apply.
Parameter Description
Profile ID
This is the identifier number for this
profile set.
Mode
Select Permit to specify that the packets
that match the access profile are
forwarded by the Switch, according to
any additional rule added (see below).
