D-Link DES-3350SR Standalone Layer 3 Switch
85
are allowed SNMP write privileges to the
switch’s SNMP agent.
Notify View Name Specify a SNMP group name for users that
can receive SNMP trap messages generated
by the switch’s SNMP agent.
Security Model Use the pull-down menu to select the SNMP
version. Select one of the following:
SNMPv1 – Specifies that SNMP version 1
will be used.
SNMPv2 – Specifies that SNMP version 2c
will be used. The SNMP v2c supports both
centralized and distributed network
management strategies. It includes
improvements in the Structure of
Management Information (SMI) and adds
some security features.
SNMPv3– Specifies that the SNMP version 3
will be used. SNMP v3 provides secure
access to devices through a combination of
authentication and encrypting packets over
the network.
Security Level Use the pull-down menu to select the SNMP
version:
NoAuthNoPriv − Specifies that there will be
no authorization and no encryption of packets
sent between the switch and a remote SNMP
manager.
AuthNoPriv − Specifies that authorization
will be required, but there will be no
encryption of packets sent between the
switch and a remote SNMP manager.
AuthPriv − Specifies that authorization will
be required, and that packets sent between
the switch and a remote SNMP manger will
be encrypted.
SNMP Community Table
Use this table to create an SNMP community string to define the relationship between the SNMP manager and an agent. The
community string acts like a password to permit access to the agent on the switch. One or more of the following characteristics can
be associated with the community string:
• An Access List of IP addresses of SNMP managers that are permitted to use the community string to gain access to the
switch’s SNMP agent.
• An MIB view that defines the subset of all MIB objects that will be accessible to the SNMP community.
• Read/write or read-only level permission for the MIB objects accessible to the SNMP community.

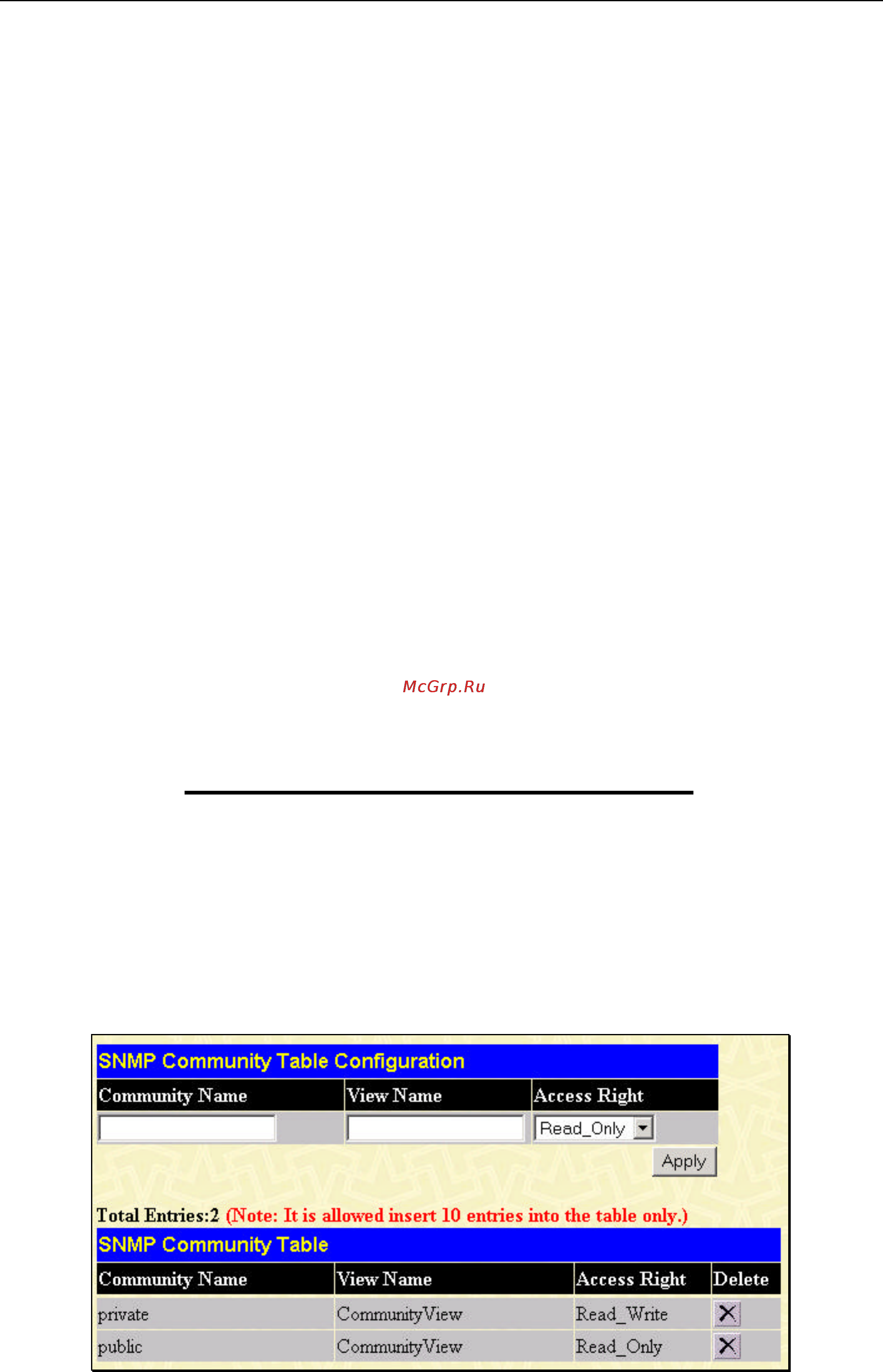

Figure 8 - 12. SNMP Community Table Configuration window
