D-Link DES-3350SR Standalone Layer 3 Switch

Status Toggle between Enabled and Disabled.

IGMP

IGMP Snooping

From the Configuration menu, select the IGMP folder, and then click IGMP Snooping to open the following window:

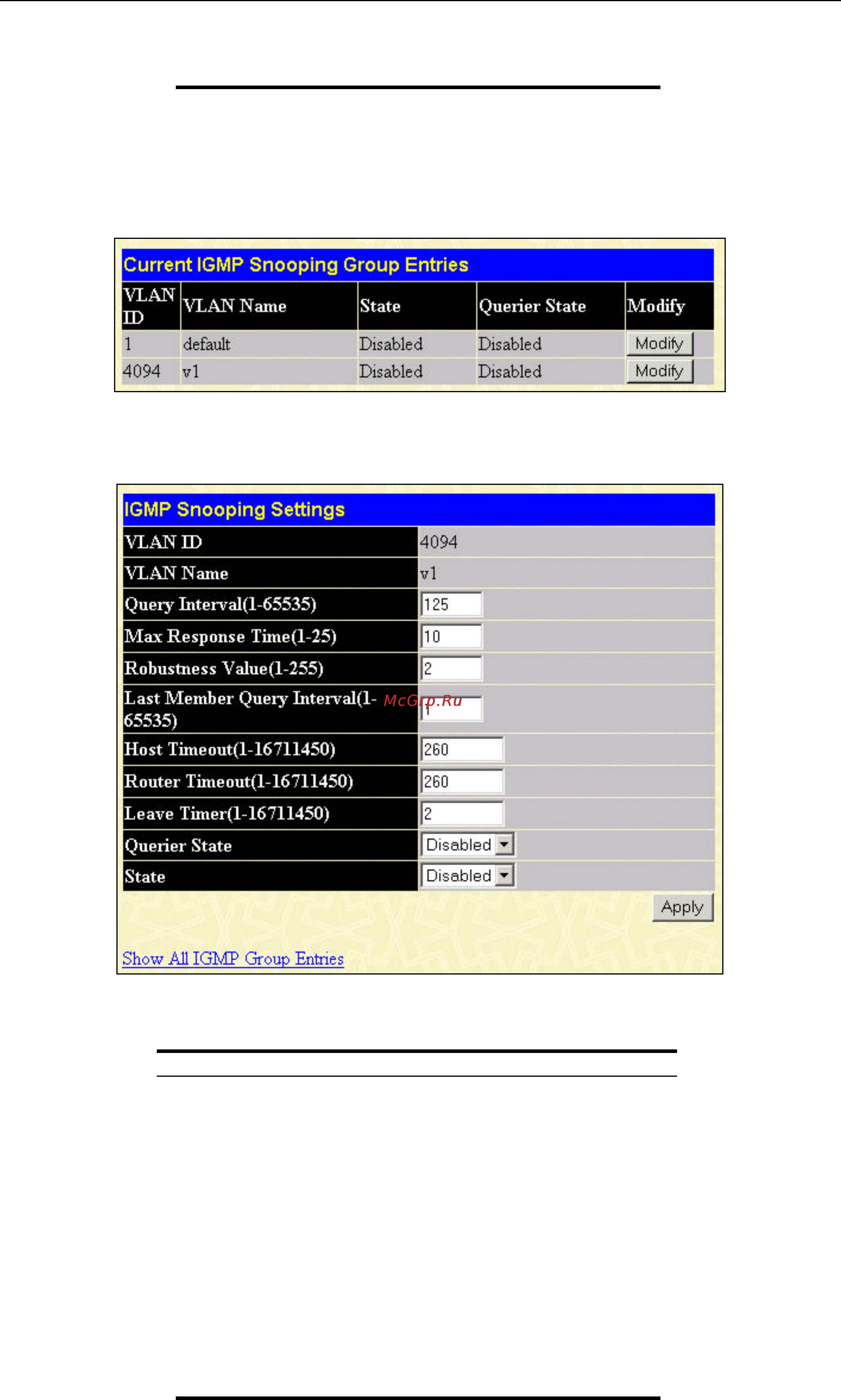

Figure 7 - 7. Current IGMP Snooping Group Entries window

To edit an IGMP Snooping entry on the switch, click the Modify button next to the entry on the Current IGMP Snooping Group

Entries window. The IGMP Snooping Settings window, shown below, will appear.

Figure 7 - 8. IGMP Snooping Settings window

The following fields can be set:

Parameter Description

VLAN ID

Allows the entry of the VLAN ID for which

IGMP Snooping is to be configured.

VLAN Name

Allows the entry of the name of the VLAN

for which IGMP Snooping is to be

configured.

Query Interval (1-

65535)

Allows the entry of a value between 1 and

65535 seconds, with a default of 125

seconds. This specifies the length of time

between sending IGMP queries.

Max Response

Time(1-125)

Sets the maximum amount of time allowed

before sending an IGMP response report.

A value between 1 and 25 seconds can be

entered, with a default of 10 seconds.

Robustness Value

A tuning variable to allow for VLANs that

are expected to lose a large number of

packets. A value between

and

255

can
