D-Link DES-3350SR Standalone Layer 3 Switch
40

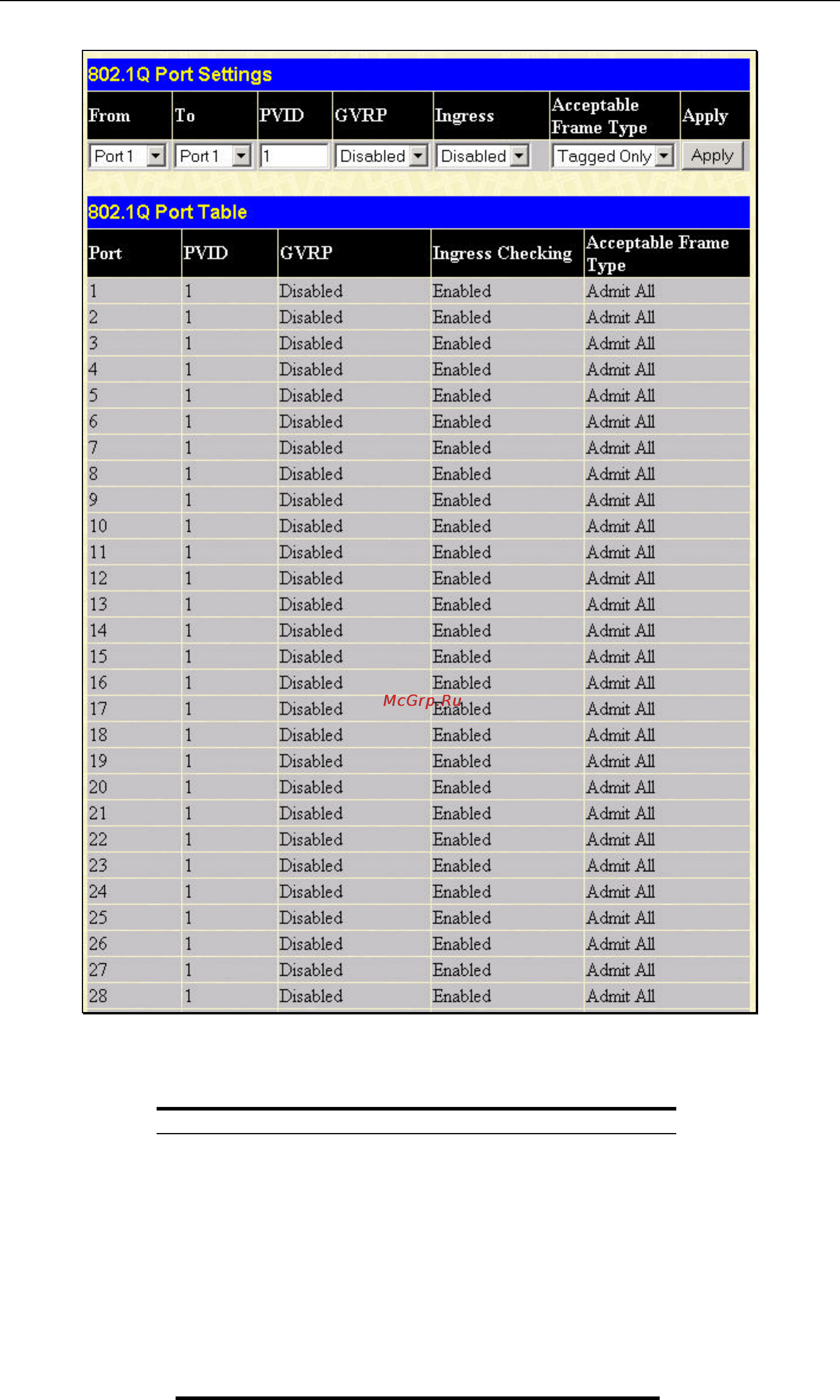

Figure 7 - 22. 802.1Q Port Settings window
The following fields can be set:
Parameter Description
From and To
Enter the desired ports in these two
fields.
PVID
A Port VLAN Identifier is a classification
mechanism that associates a port with a
specific VLAN and is used to make
forwarding decisions for untagged
packets received by the port. For
example, if port #2 is assigned a PVID of
3, then all untagged packets received on
port #2 will be assigned to VLAN 3. This
number is generally the same as the
VID# number assigned to the port in the
Modify 802.1Q VLANs menu above.
