D-Link DES-3350SR Standalone Layer 3 Switch
74

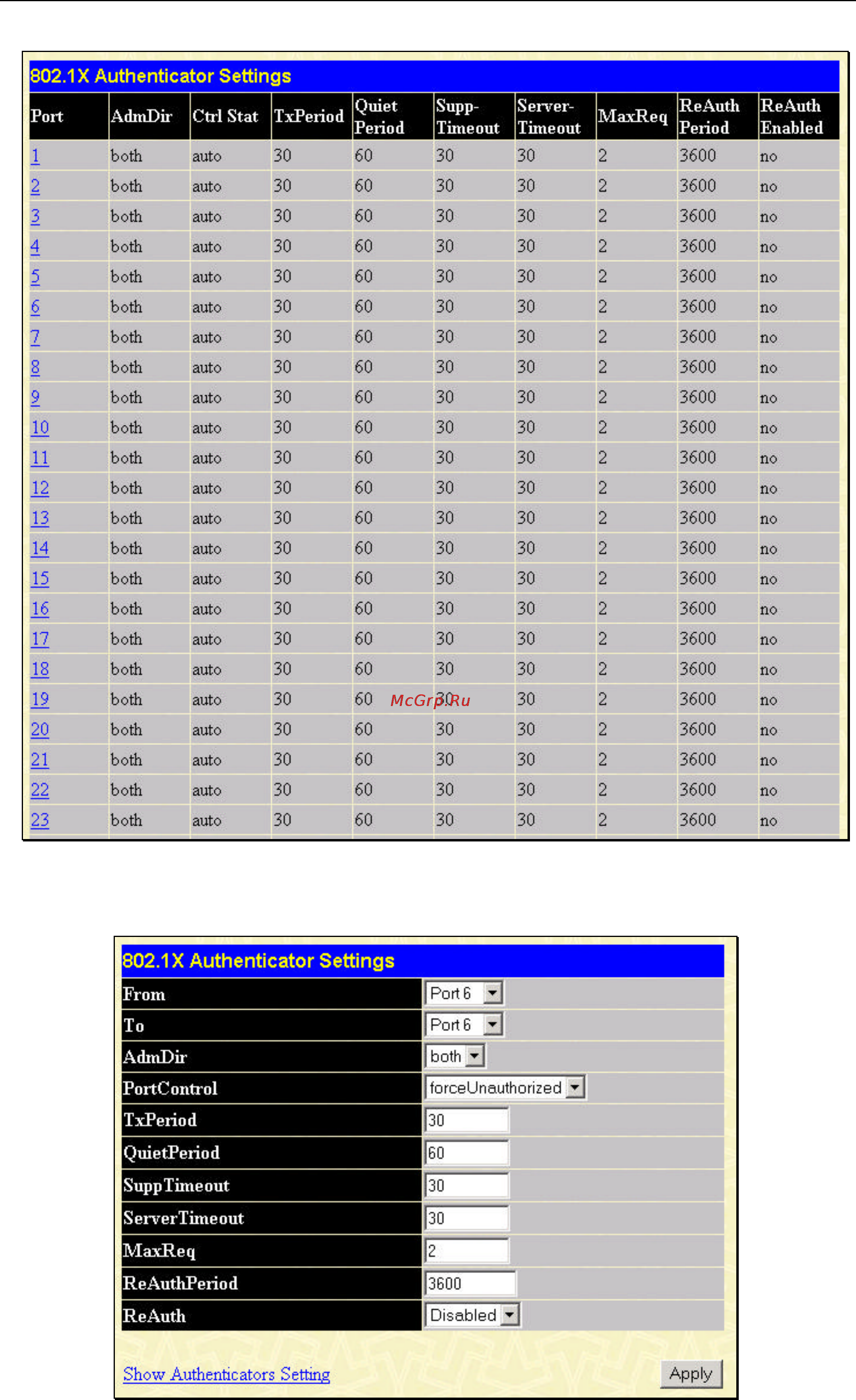

Figure 7 - 61. First 802.1X Authenticator Settings window
Click the selection button on the far left that corresponds to the port you want to configure. Use the Authenticator Settings
window shown below to configure settings on individual ports or on a range of ports.
.
