D-Link DES-3350SR Standalone Layer 3 Switch
87
SNMP host for the switch.
SNMP Version From the pull-down menu select:
V1 – To specifies that SNMP version 1 will
be used.
V2c – To specify that SNMP version 2 will
be used.
V3 – To specify that the SNMP version 3 will
be used.
Community
String/SNMPv3 User
Name
Type in the community string or SNMP V3
user name as appropriate.
SNMP Engine ID
The Engine ID is a unique identifier used for SNMP V3 implementations. This is an alphanumeric string used to identify the
SNMP engine on the switch.

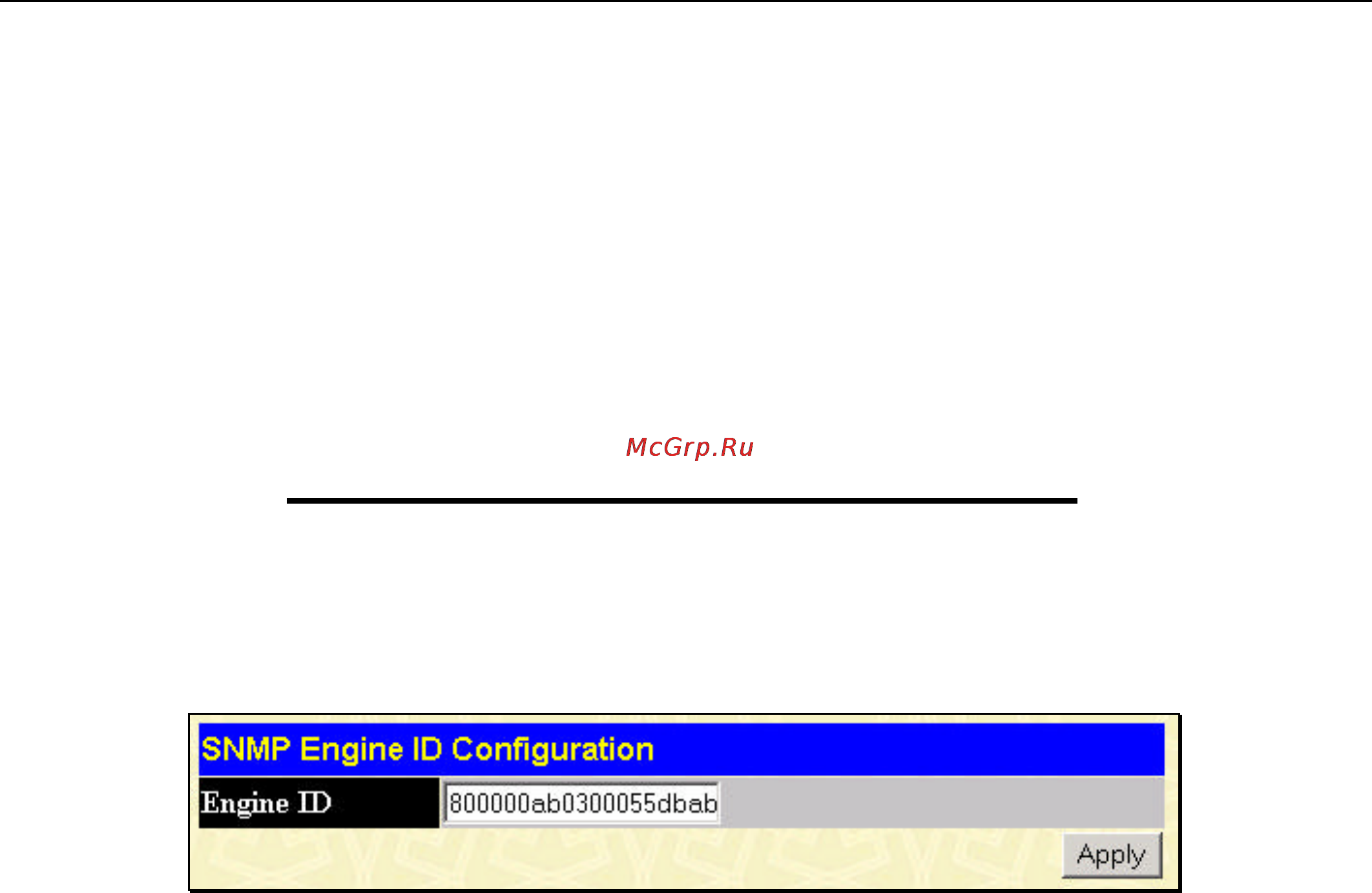

Figure 8 - 15. SNMP Engine ID Configuration window
To change the Engine ID, type the new Engine ID in the space provided and click the Apply button.
