D-Link DES-3350SR Standalone Layer 3 Switch
52

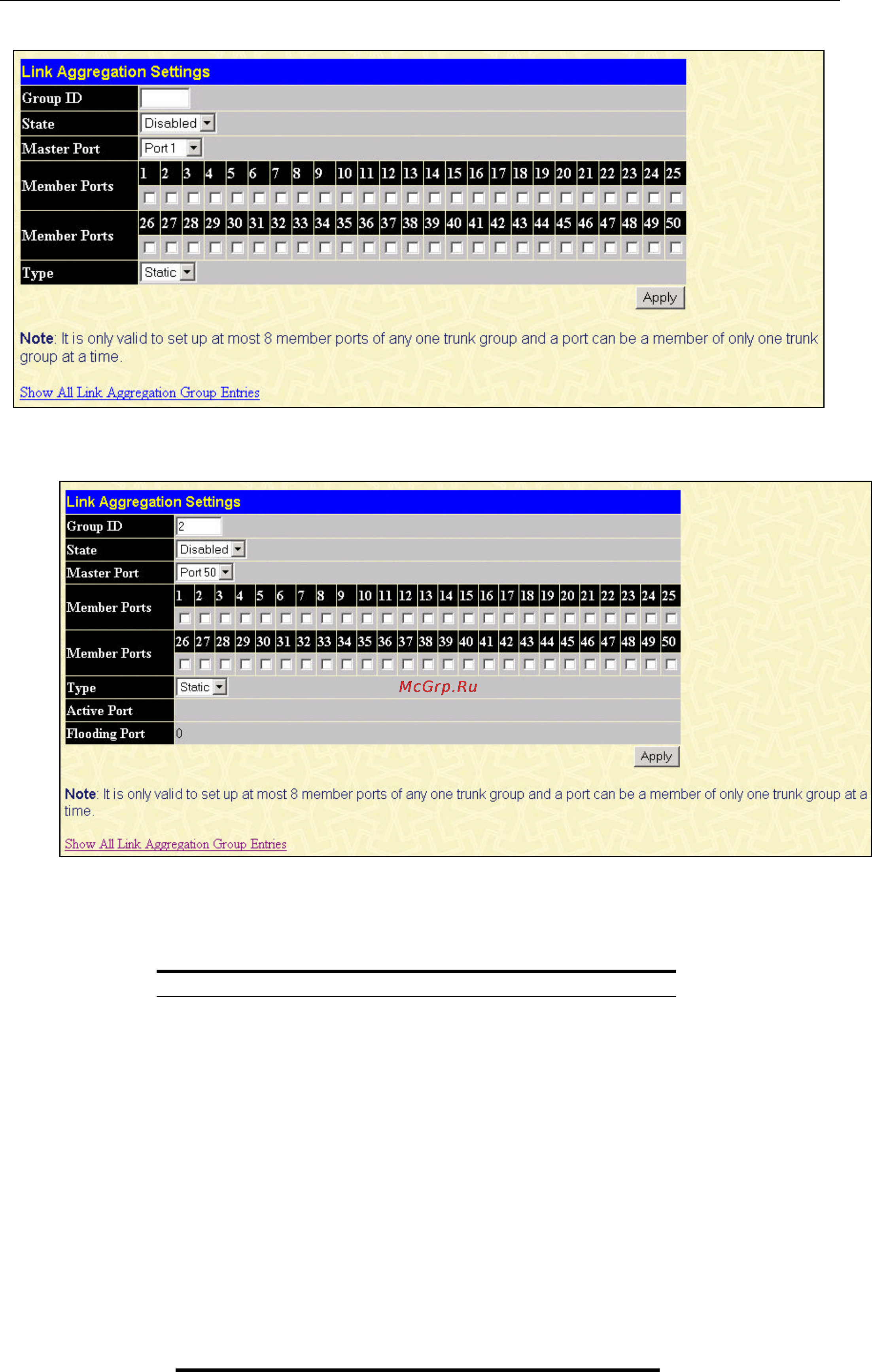

Figure 7 - 34. Port Link Aggregation Settings (Add) window
Figure 7 - 35. Port Link Aggregation Settings (Modify) window
The following fields can be set:
Parameter Description
Group ID(1-6)
Allows the entry of a number used to
identify the link aggregation group −
when adding a new group. Displays the
Group ID of the currently selected link
aggregation group − when editing and
existing entry.
State <Disabled>
This field can be toggled between
Enabled and Disabled. This is used to
turn a link aggregation group on or off.
This is useful for diagnostics, to quickly
isolate a bandwidth intensive network
device, or to have an absolute backup
link aggregation group that is not under
automatic control.
Master Port <Port 1>
The Master port of link aggregation
group.
Member Port
Allows the specification of the ports that
will make up the link aggregation group.
