D-Link DES-3350SR Standalone Layer 3 Switch
156

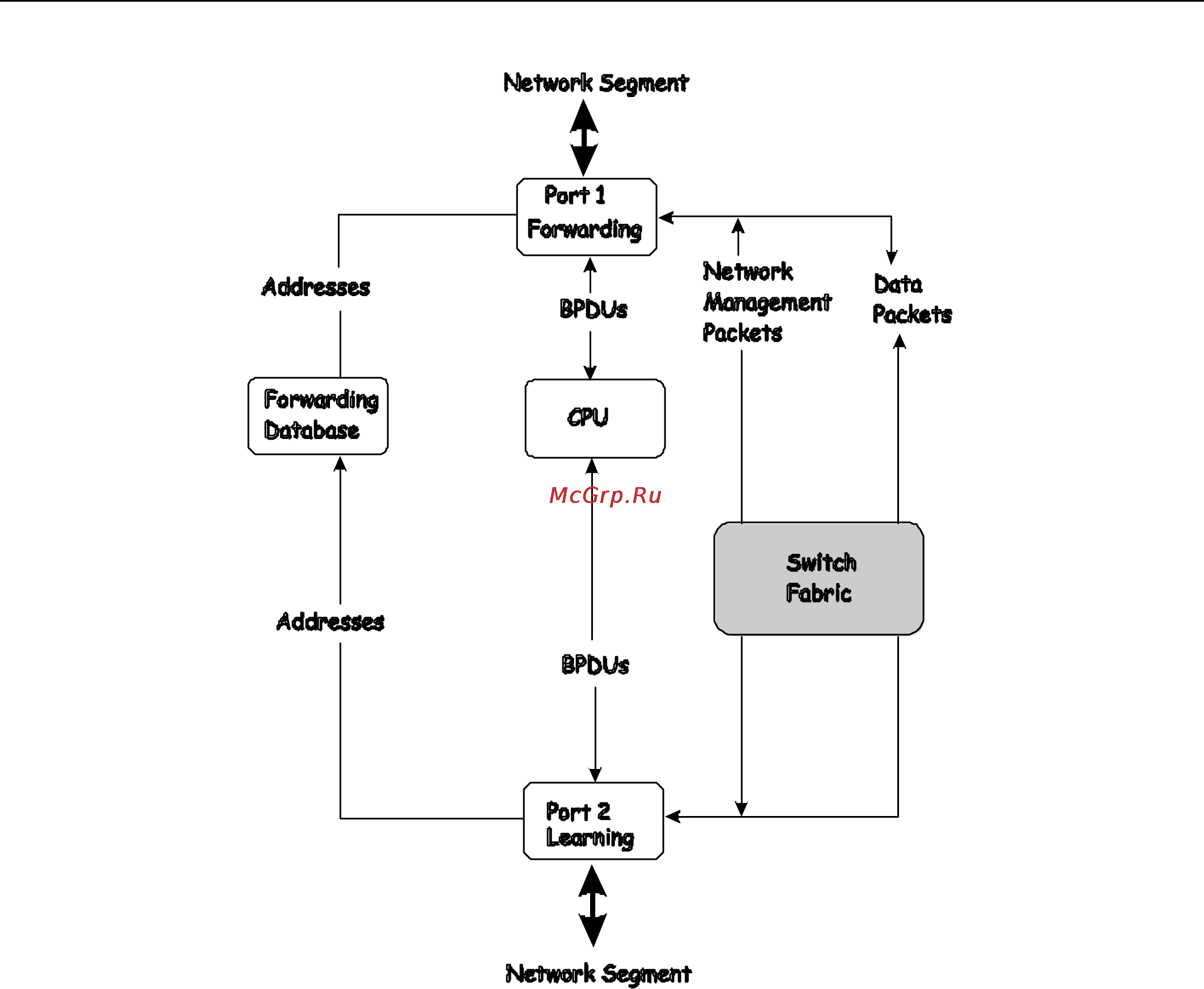

Disabled State
A port in the disabled state does not participate in frame forwarding or STP. A port in the disabled state is virtually non-operational.
A disabled port does the following:
• Discards packets received from the network segment to which it is attached.
• Discards packets sent from another port on the switch for forwarding.
• Does not add addresses to its forwarding database.
• Receives BPDUs, but does not direct them to the system CPU.
• Does not receive BPDUs for transmission from the system CPU.
• Receives and responds to network management messages.
