18D-Link DIR-632 User Manual
Section 3 - Conguration

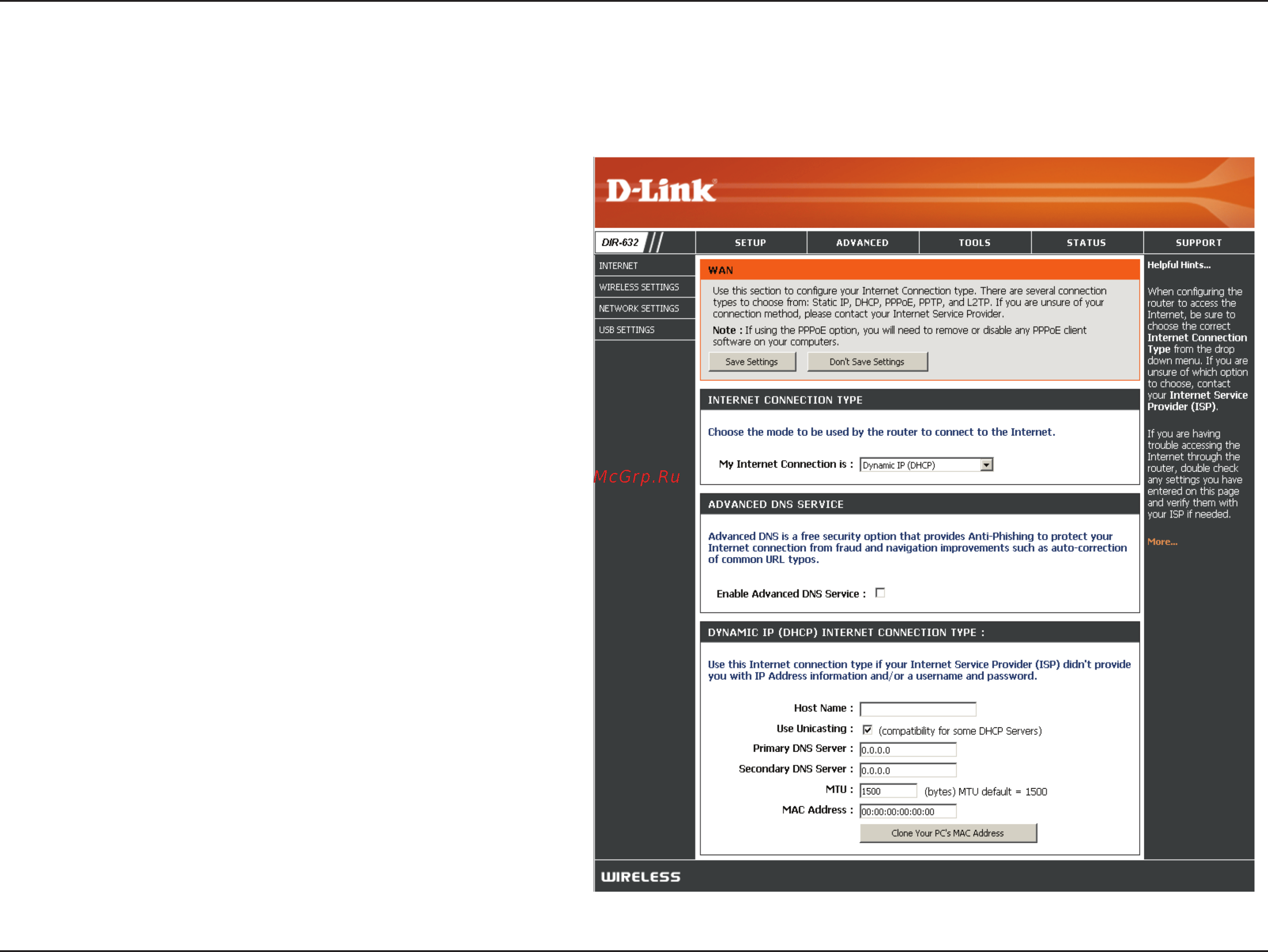

Select Dynamic.IP.(DHCP) to obtain IP Address information
automatically from your ISP. Select this option if your ISP does
not give you any IP numbers to use. This option is commonly
used for Cable modem services.
Check Enable.Advanced.DNS.Service if you wish to use
this free security option.
The Host Name is optional but may be required by some
ISPs.
Check the box if you are having problems obtaining an IP
address from your ISP.
Enter the Primary DNS server IP address assigned by your
ISP.
Maximum Transmission Unit - you may need to change the
MTU for optimal performance with your specic ISP. 1500 is
the default MTU.
The default MAC Address is set to the Internet port’s physical
interface MAC address on the Broadband Router. It is not
recommended that you change the default MAC address
unless required by your ISP. You can use the Clone.Your.PC’s.
MAC.Addres s button to replace the Internet port’s MAC
address with the MAC address of your Ethernet card.
My Internet
Connection:
Host Name:
MAC Address:
Manual Conguration
Dynamic (Cable)
DNS Addresses:
MTU:
Use Unicasting:
Advanced DNS
Service:
