45D-Link DIR-632 User Manual
Section 3 - Conguration
To use the Universal Plug and Play (UPnP
™
) feature check
the En abled.UPnP box. UPNP provides compatibility with
networking equipment, software and peripherals.
Unchecking the box will not allow the DIR-632 to respond to
pings. Blocking the Ping may provide some extra security from
hackers. Check the box to allow the WAN port to be “pinged”.
This section will list any rules that are created. You may click the
Edit icon to change the settings or enable/disable the rule, or
click the Delete icon to remove the rule.
You may set the port speed of the Internet port to 10Mbps,
100Mbps, or auto. Some older cable or DSL modems may
require you to set the port speed to 10Mbps.
Check the box to allow multicast trac to pass through the
router from the Internet.
UPnP:
WAN Ping:
Inbound Filter:
WAN Port Speed:
Multicast streams:

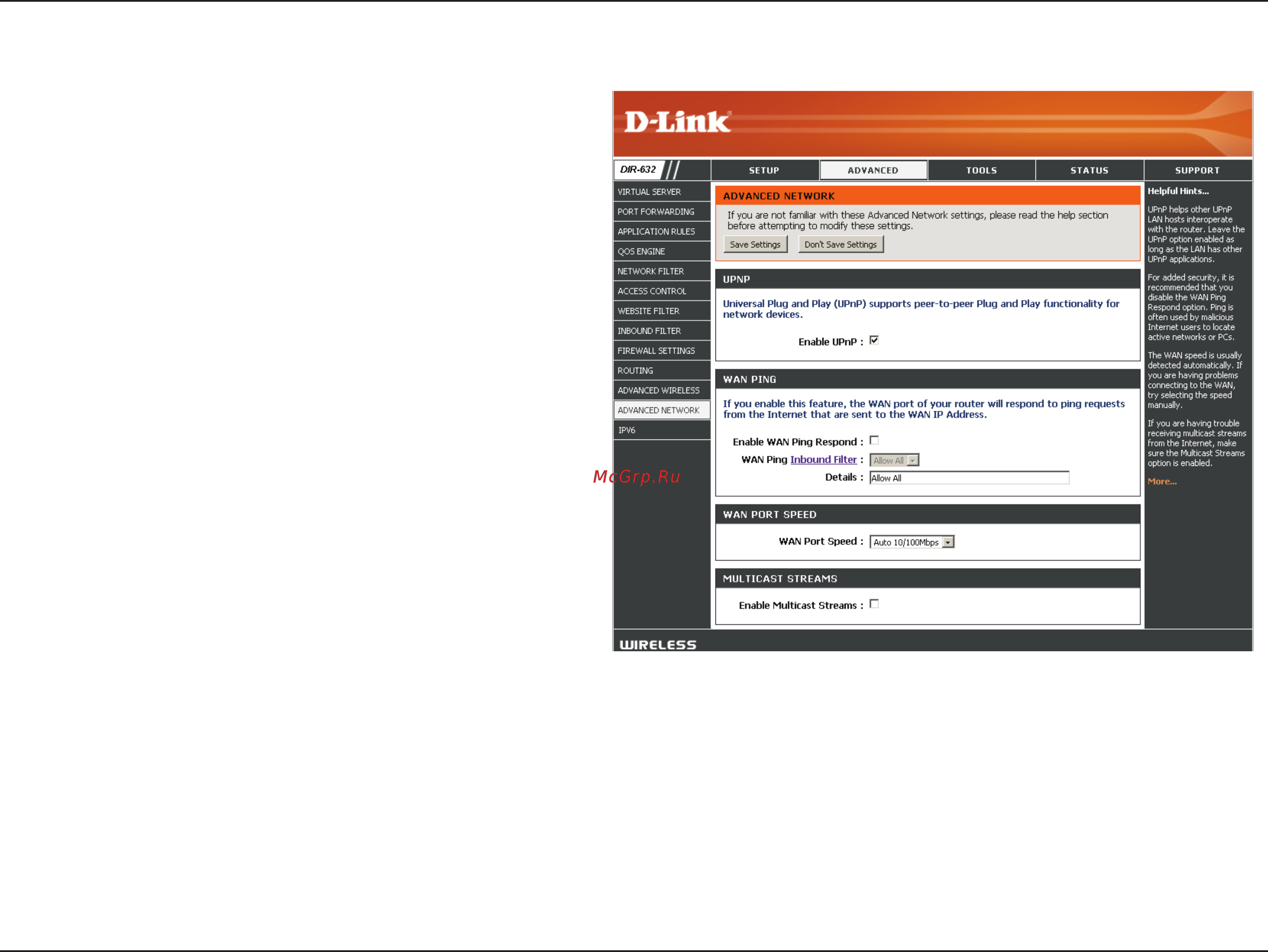

Advanced Network Settings
