35D-Link DIR-632 User Manual
Section 3 - Conguration

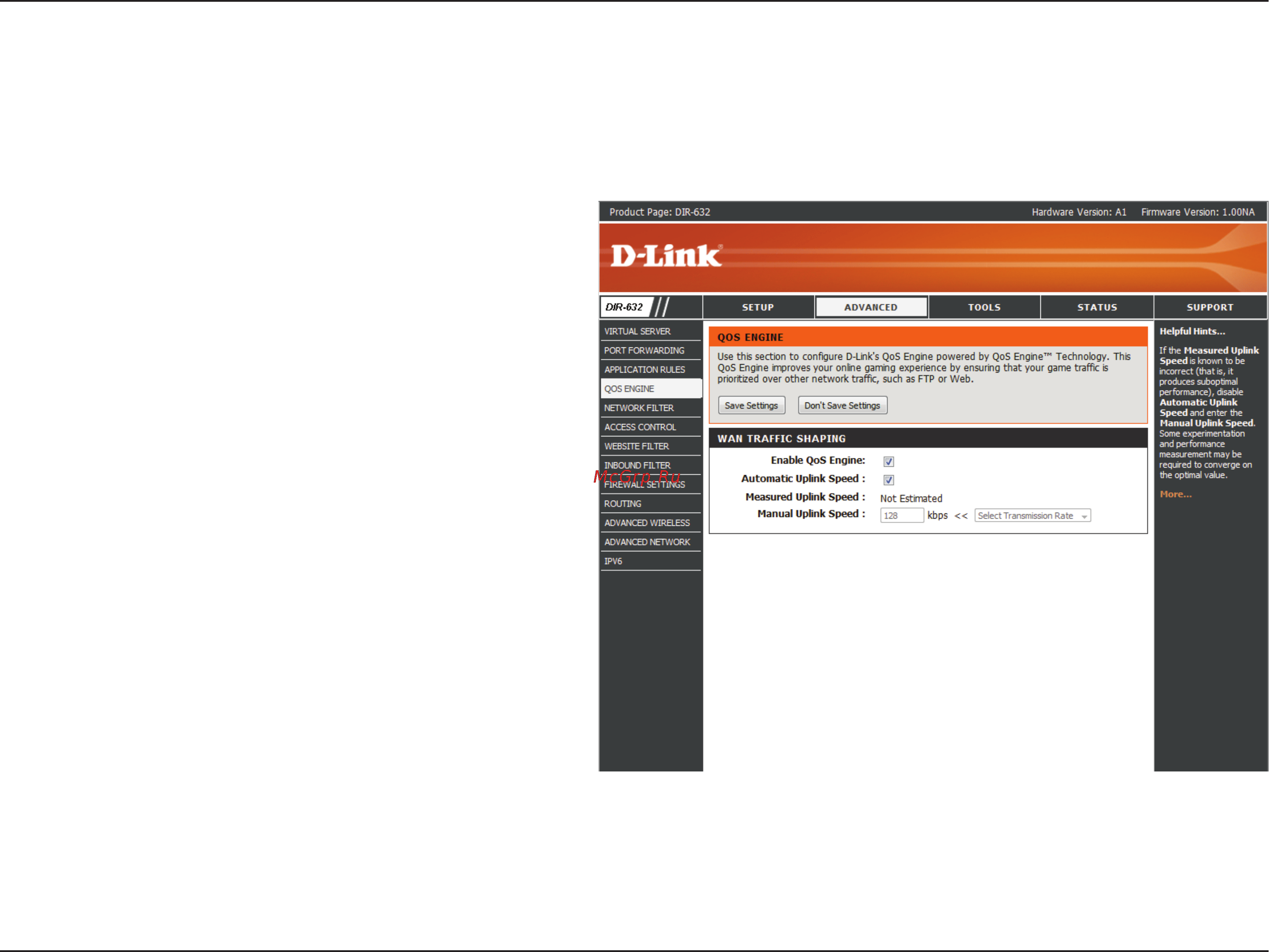

QoS Engine
Check to enable Trac Shaping.
This option is enabled by default when the Trac Shaping option
is enabled. This option will allow your router to automatically
determine the uplink speed of your Internet connection.
This displays the detected uplink speed.
The speed at which data can be transferred from the router to your
ISP. This is determined by your ISP. ISP’s often speed as a download/
upload pair. For example, 1.5Mbits/284Kbits. Using this example,
you would enter 284. Alternatively you can test your uplink speed
with a service such as www.dslreports.com.
Enable Trac
Shaping:
Automatic
Uplink Speed:
Measured
Uplink:
Manual Uplink
Speed:
The QoS Engine option helps improve your network gaming performance by prioritizing applications. By default the QoS Engine settings are
disabled and application priority is not classied automatically.
