71D-Link DIR-632 User Manual
Section 3 - Conguration
Internet Sessions

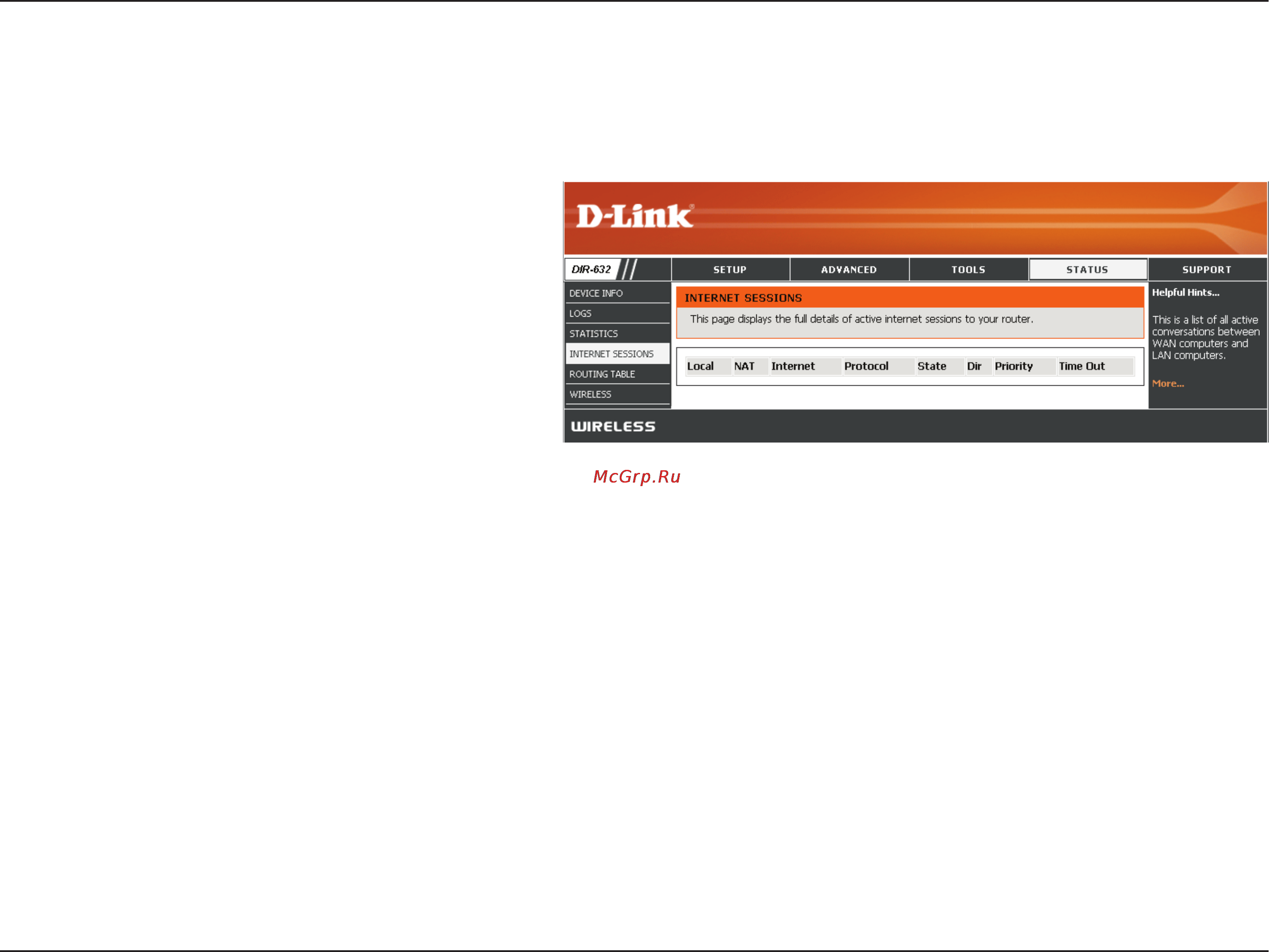

The Internet Sessions page displays full details of active Internet sessions through your router. An Internet session is a conversation between a
program or application on a LAN-side computer and a program or application on a WAN-side computer.
Local:
NAT:
Internet:
Protocol:
State:
The IP address and, where appropriate, port number of the
local application.
The port number of the LAN-side application as viewed by
the WAN-side application.
The IP address and, where appropriate, port number of the
application on the Internet.
The communications protocol used for the conversation.
State for sessions that use the TCP protocol:
NO:.None -- This entry is used as a placeholder for a future connection that may occur.
SS:.SYN.Sent -- One of the systems is attempting to start a connection.
EST:.Established -- the connection is passing data.
FW:.FIN.Wait -- The client system has requested that the connection be stopped.
CW:.Close.Wait -- The server system has requested that the connection be stopped.
TW:.Time.Wait -- Waiting for a short time while a connection that was in FIN Wait is fully closed.
LA:.Last.ACK -- Waiting for a short time while a connection that was in Close Wait is fully closed.
CL:.Closed -- The connection is no longer active but the session is being tracked in case there are any retransmitted packets still pending.
