D-Link DIR-632 [29/116] Manual wireless settings
![D-Link DIR-632 [29/116] Manual wireless settings](/views2/1044518/page29/bg1d.png)
24D-Link DIR-632 User Manual
Section 3 - Conguration

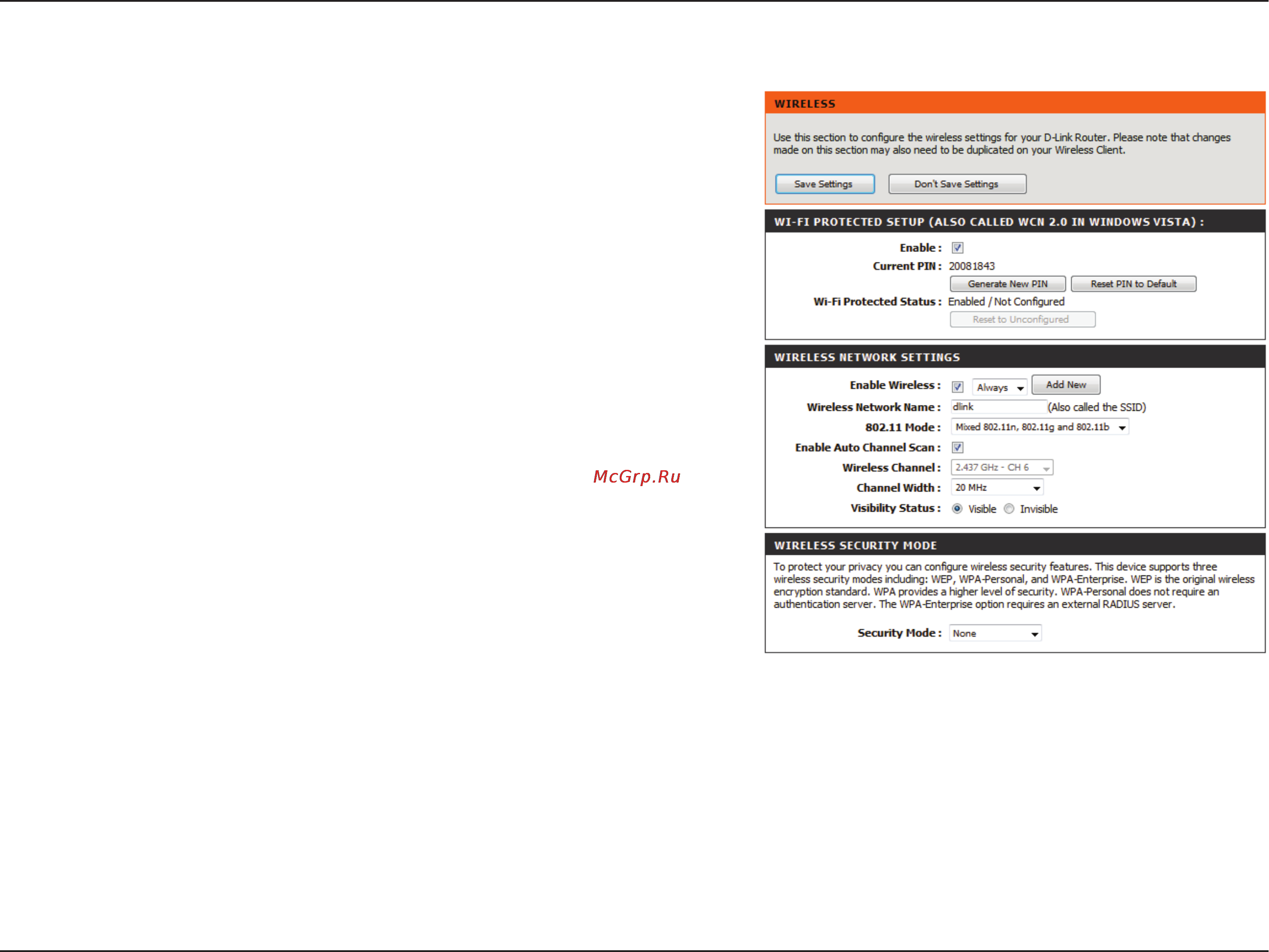

Manual Wireless Settings
Check the box to enable the wireless function. If you do not want to use wireless,
uncheck the box to disable all the wireless functions. Click Add New to create your
own time schedule to enable the wireless function.
Service Set Identier (SSID) is the name of your wireless network. Create a name
using up to 32 characters. The SSID is case-sensitive.
Select one of the following:
802.11g Only - Select if all of your wireless clients are 802.11g.
802.11n Only - Select only if all of your wireless clients are 802.11n.
Mixed 802.11n and 802.11g - Select if you are using a mix of 802.11n and
802.11g wireless clients.
The Auto Channel Scan setting can be selected to allow the DIR-632 to choose the
channel with the least amount of interference.
Indicates the channel setting for the DIR-632. By default the channel is set to 6. The
Channel can be changed to t the channel setting for an existing wireless network
or to customize the wireless network. If you enable Auto Channel Scan, this option
will be greyed out.
Select the transmit rate. It is strongly suggested to select Best (Auto) for best
performance.
Select the Channel Width:
Auto 20/40 - Select if you are using both 802.11n
and non-802.11n wireless devices.
20MHz - Select if you are not using any 802.11n wireless clients. This is the default
setting.
Select Invisible if you do not want the SSID of your wireless network to be broadcasted by the DIR-632. If Invisible is selected, the SSID of the DIR-632 will not
be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DIR-632 in order to connect to it.
Refer to page 76 for more information regarding wireless security.
Enable Wireless:
Wireless Network
Name:
802.11 Mode:
Enable Auto Channel
Scan:
Wireless Channel:
Transmission Rate:
Channel Width:
Visibility Status:
Wireless Security:
