80D-Link DIR-632 User Manual
Section 4 - Security
Congure WPA-Personal (PSK)
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish wireless connectivity before
enabling encryption. Your wireless signal may degrade when enabling encryption due to the added overhead.

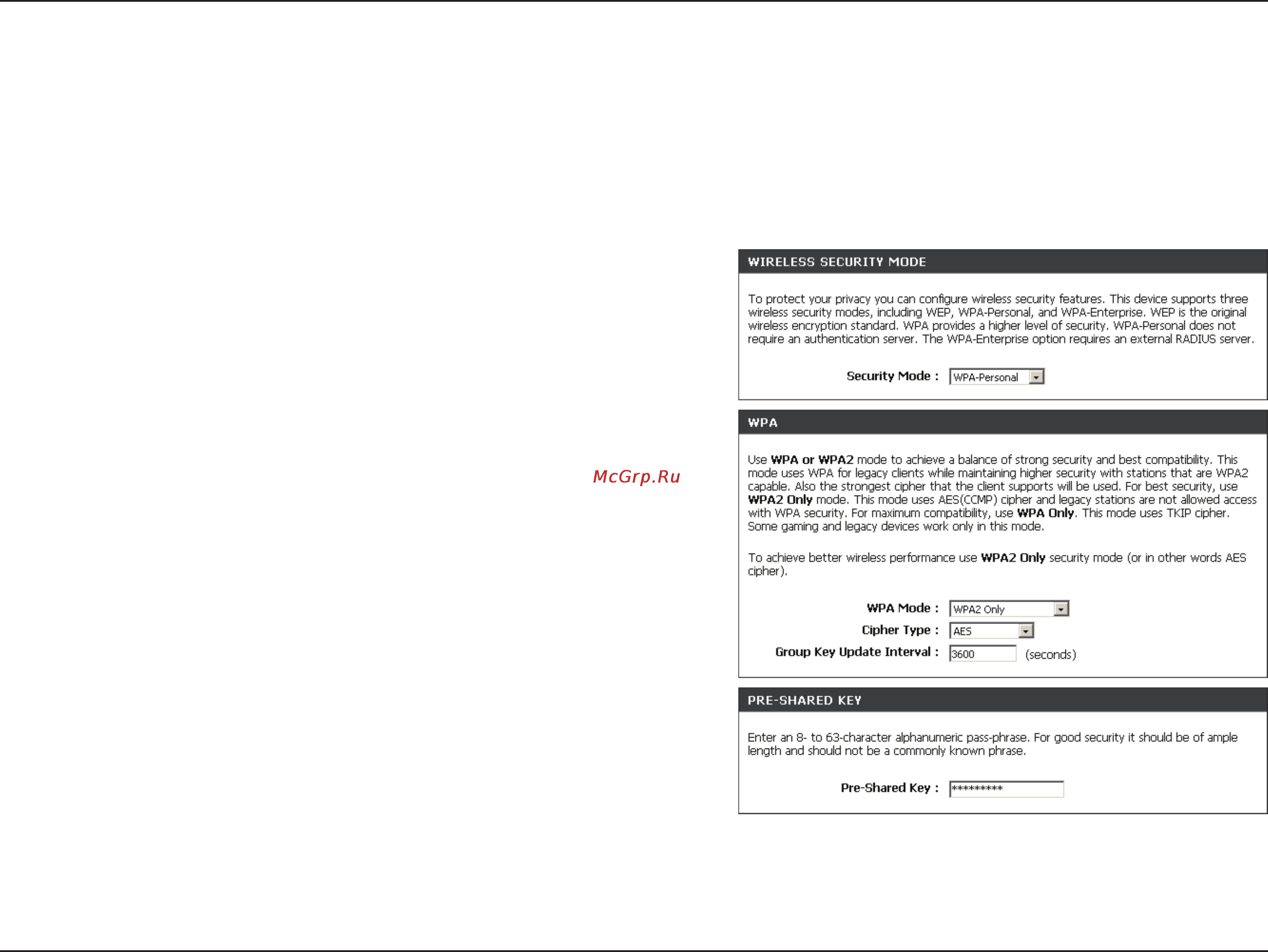

1.. Log into the web-based conguration by opening a web browser and entering the IP address of the router (192.168.0.1). Click on.Setup.and
then click.Wireless.Settings on the left side.
2. Next to Security Mode, select WPA-Personal.
3. Next to WPA Mode, select Auto, WPA2.Only, or.WPA.O nly. Use Auto if you have
wireless clients using both WPA and WPA2.
4. Next to Cypher Type, select TKIP.and.AES, TKIP, or AES.
5. Next to Group Key Update Interval, enter the amount of time before the group
key used for broadcast and multicast data is changed (3600 is default).
6. Next to Pre-Shared Key, enter a key (passphrase). The key is entered as a passpharsein
ASCII format at both ends of the wireless connection. The passpharsemust be between
8-63 characters.
7. Click Save.Settings to save your settings. If you are conguring the router with
a wireless adapter, you will lose connectivity until you enable WPA-PSK on your
adapter and enter the same passphrase as you did on the router.
