D-Link DIR-632 [24/116] Internet setup

19D-Link DIR-632 User Manual

Section 3 - Conguration

Select PPPoE.(Username/Password) from the drop-down menu.

This is a free security option that provides Anti-Phishing and auto correction of URL

typos. Check Enable.Advanced.DNS.Service if you wish to use this free security option.

Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS

server addresses. In most cases, select D ynamic.

Enter the IP address (Static PPPoE only).

Enter your PPPoE user name.

Enter your PPPoE password and then retype the password in the next box.

Enter the ISP Service Name (optional).

Select either Always-on, On-Demand, or Manual.

Enter a maximum idle time during which the Internet connection is maintained during

inactivity. To disable this feature, enable Auto-reconnect.

Enter the Primary and Secondary DNS Server Addresses (Static PPPoE only).

Maximum Transmission Unit - you may need to change the MTU for optimal

performance with your specic ISP. 1492 is the default MTU.

The default MAC Address is set to the Internet port’s physical interface MAC address on

the Broadband Router. It is not recommended that you change the default MAC address

unless required by your ISP. You can use the Clone.Your.PC’s.MAC.Address button to

replace the Internet port’s MAC address with the MAC address of your Ethernet card.

My Internet

Connection:

Advanced DNS

Service:

Address Mode:

IP Address:

User Name:

Password:

Service Name:

Reconnection

Mode:

Maximum Idle Time:

DNS Addresses:

MTU:

MAC Address:

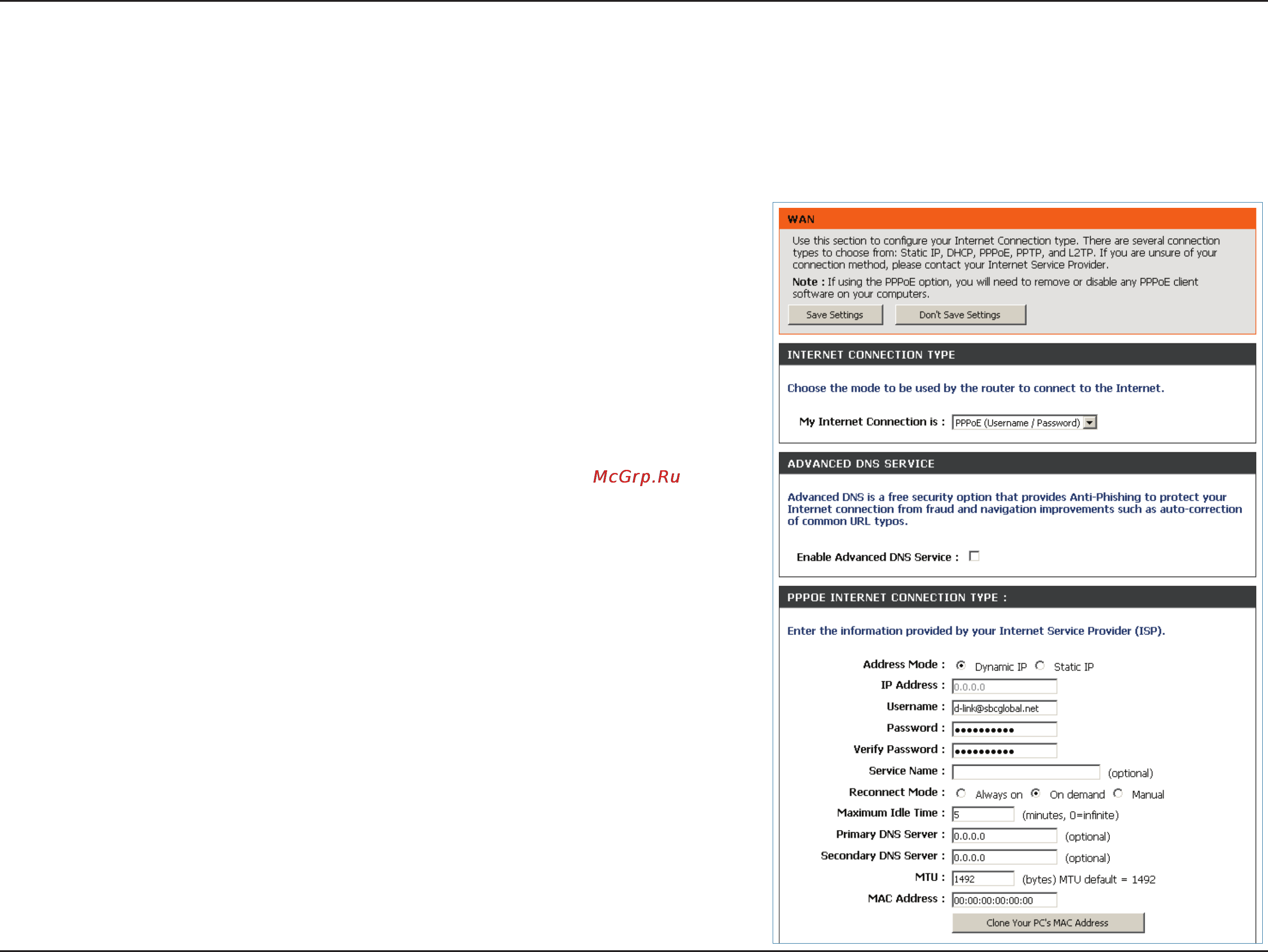

Internet Setup

PPPoE (DSL)

Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a username and password.

This option is typically used for DSL services. Make sure to remove your PPPoE software from your computer. The software is no longer needed and

will not work through a router.
