D-Link DIR-632 [78/116] Routing table
![D-Link DIR-632 [78/116] Routing table](/views2/1044518/page78/bg4e.png)
73D-Link DIR-632 User Manual
Section 3 - Conguration
Routing Table

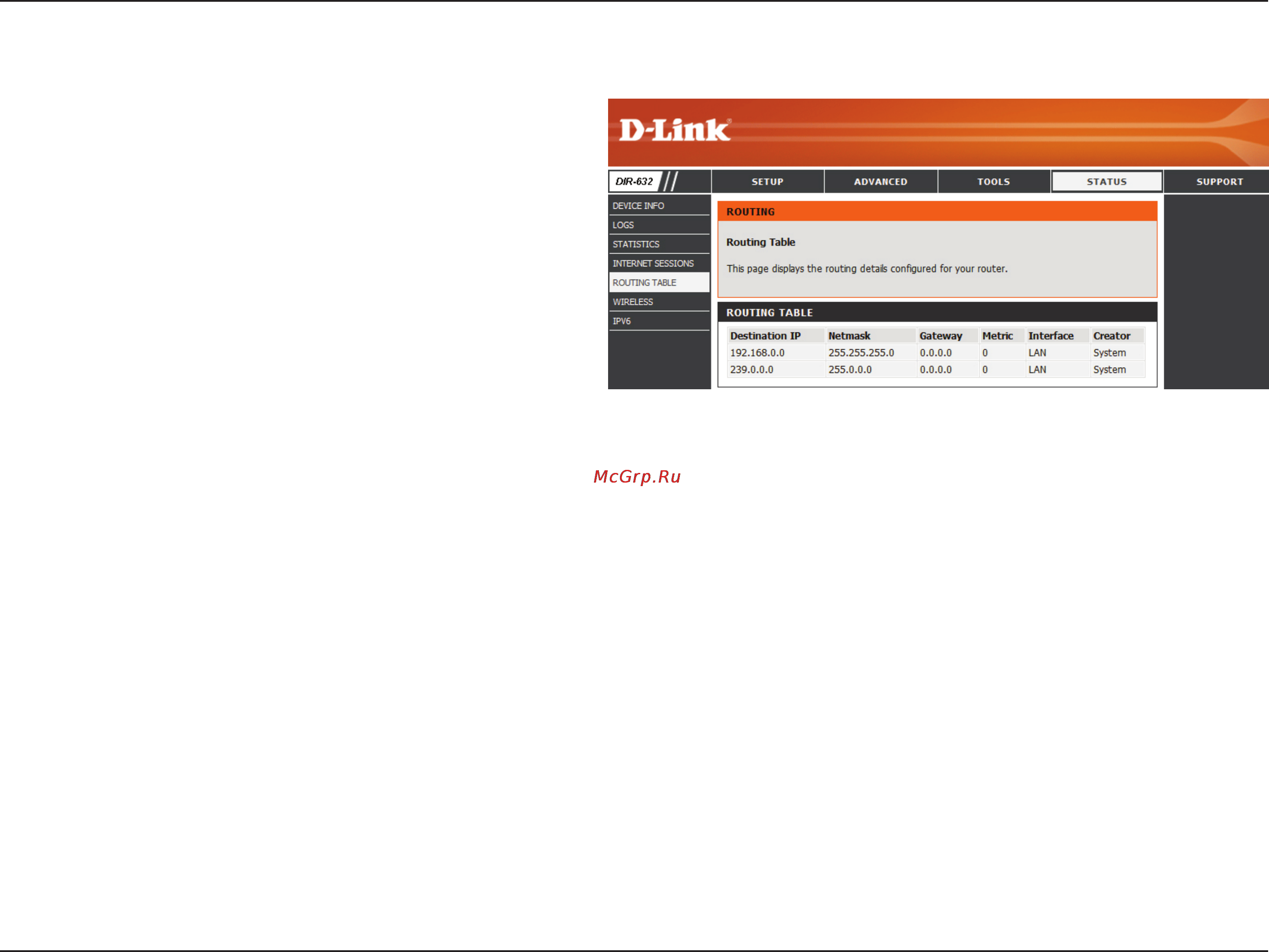

This page displays the routing details congured for your router.
