70D-Link DIR-632 User Manual
Section 3 - Conguration
Stats

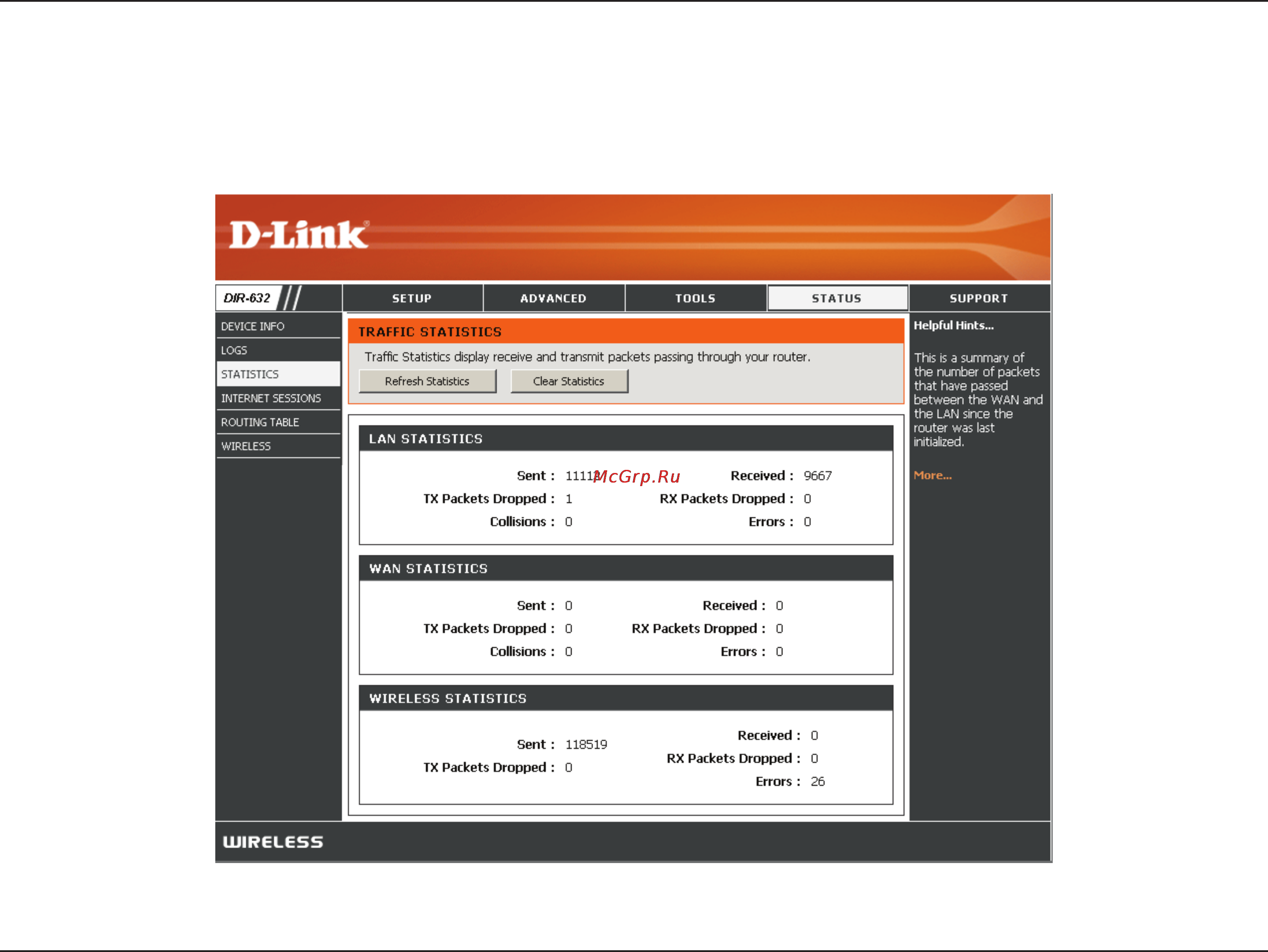

The screen below displays the Trac Statistics. Here you can view the amount of packets that pass through the DIR-632 on both the WAN and the LAN
ports. The trac counter will reset if the device is rebooted.
