Pentax ECY-1575K [10/80] Preparation and inspection for use
![Pentax ECY-1575K [10/80] Preparation and inspection for use](/views2/1513340/page10/bga.png)
– 10 –
2. PREPARATION AND INSPECTION FOR USE
Prior to use, the endoscope, video processor and endoscopic accessory instruments must be
carefully inspected for cleanliness and proper function to determine that they are appropriate
for patient use:
NOTE:
ECY-1575K endoscopes are only compatible with PENTAX video processor model
EPK-i series and EPK-1000.
CAUTION:
To avoid discontinuation of endoscopic procedure, have an extra (spare) instrument
available as a standby device, should any unforeseen event or circumstance render
the original instrument inoperable and/or unsafe for patient.
2-1. Inspection of the Video Processor
Please refer to the Owner’s Manual of the specic model of PENTAX video processor for
complete instructions.
1) Plug the processor into a properly grounded receptacle with the power switch in
the OFF position.

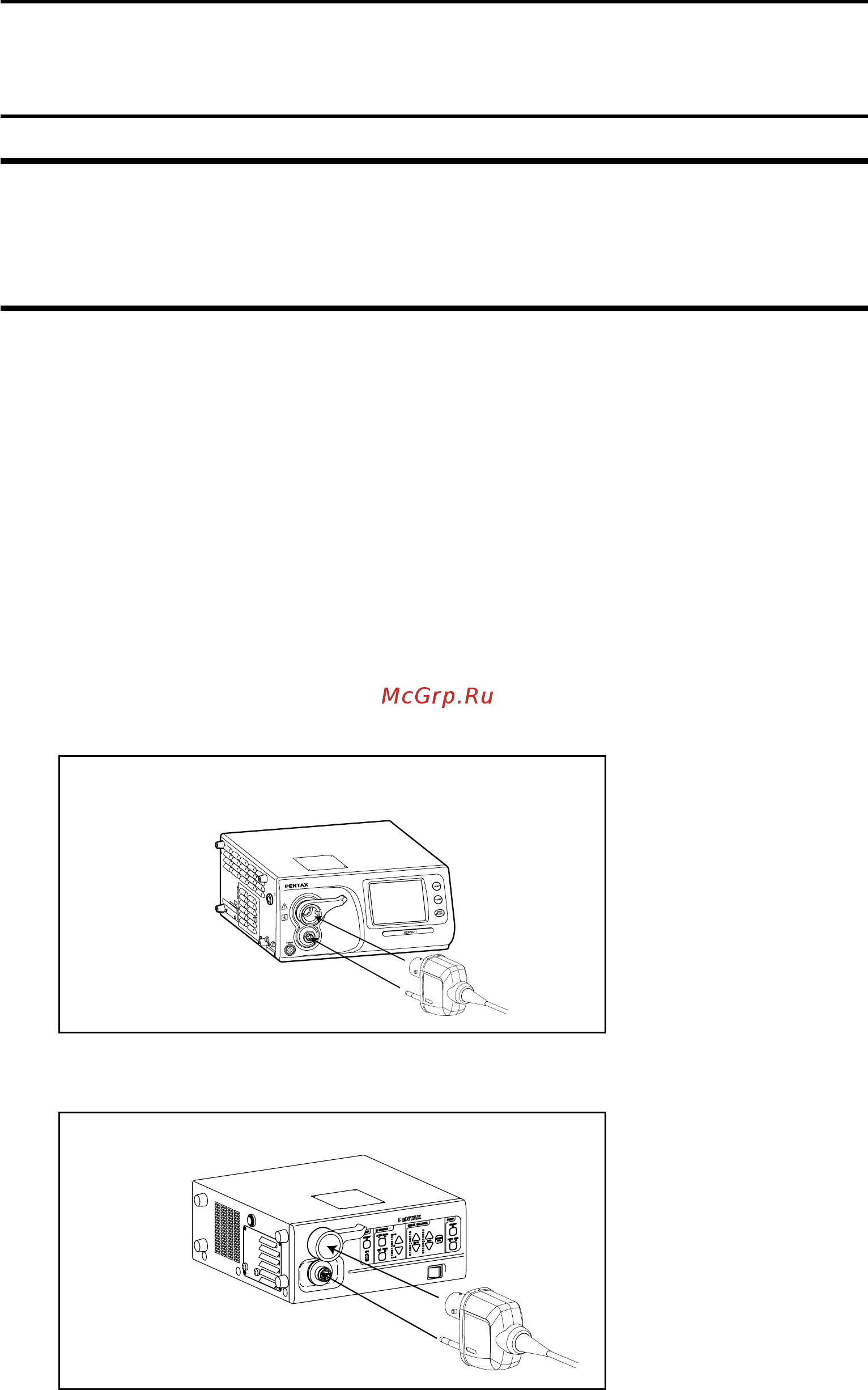

2) Make sure that the PVE connector is aligned with the interface socket on the front
panel of the processor.
3) Connect the endoscope to the interface socket on the processor as illustrated.
Rotate the lever of the interface socket clockwise after insertion.
EPK-i series
Figure 2.1
EPK-1000
EPK-1000
Figure 2.2
