– 8 –
1-3. Video Processors
NOTE:
●Water bottle and air pump are not used with these endoscopes.
●Please read the manual supplied with the processor.
WARNING:
●Do not install, operate or store electro-medical equipment in a dusty environment.
Accumulation of dust within these units may cause malfunction, smoke, or ignition.
●The lamp life is 500 hours for EPK-i series, and 400 hours for EPK-1000. Replace
the lamp before the lamp life expires. Prior to use, check the lamp life indicator.
Excessive use of the lamp beyond the lamp life could cause the lamp to explode
resulting in damage to the video processor.
●The lamp life could be affected by frequency of use, in which case, the actual
lamp life might become shorter than the rated lamp life.

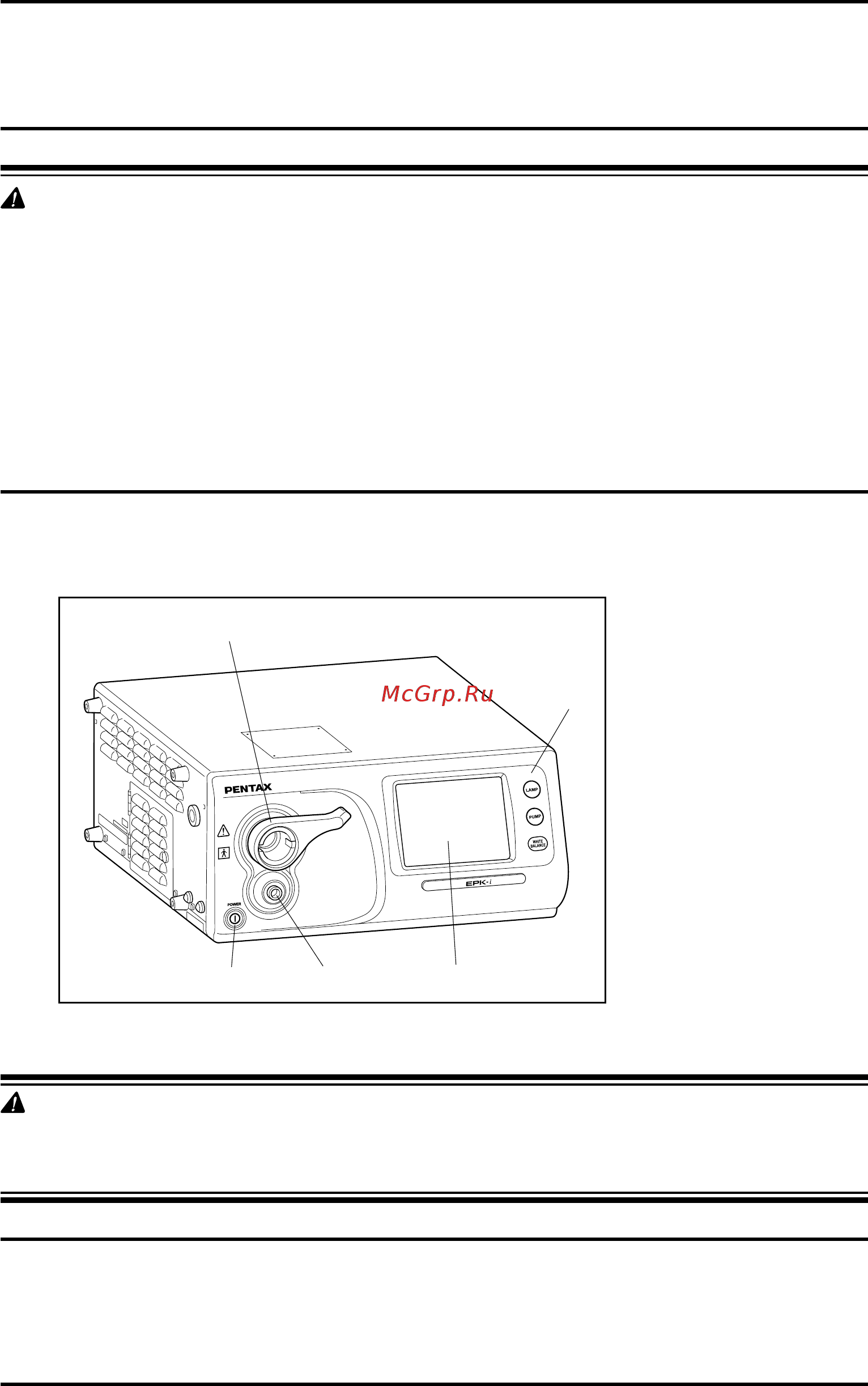

(1) EPK-i series
(3)
(1)
(5)(4) (2)
(1) Endoscope Electrical
Connector
(2) Operation Panel
(3) LCD Display with
Touch Panel
(4) Light Guide
Attachment
(5) Power Switch
Figure 1.6
WARNING:
Replace the lamp cartridge if one of the bars on the LIFE indicator on the Touch Panel
appears red and the message [Please replace the lamp] appears on the monitor.
NOTE:
Software update may be required depending on the software version of the EPK-i
series processor. If the software is not updated, the image will not be displayed. If the
images are not displayed correctly, please contact your local PENTAX service facility.
