Pentax ECY-1575K [6/80] 2 accessories

– 6 –

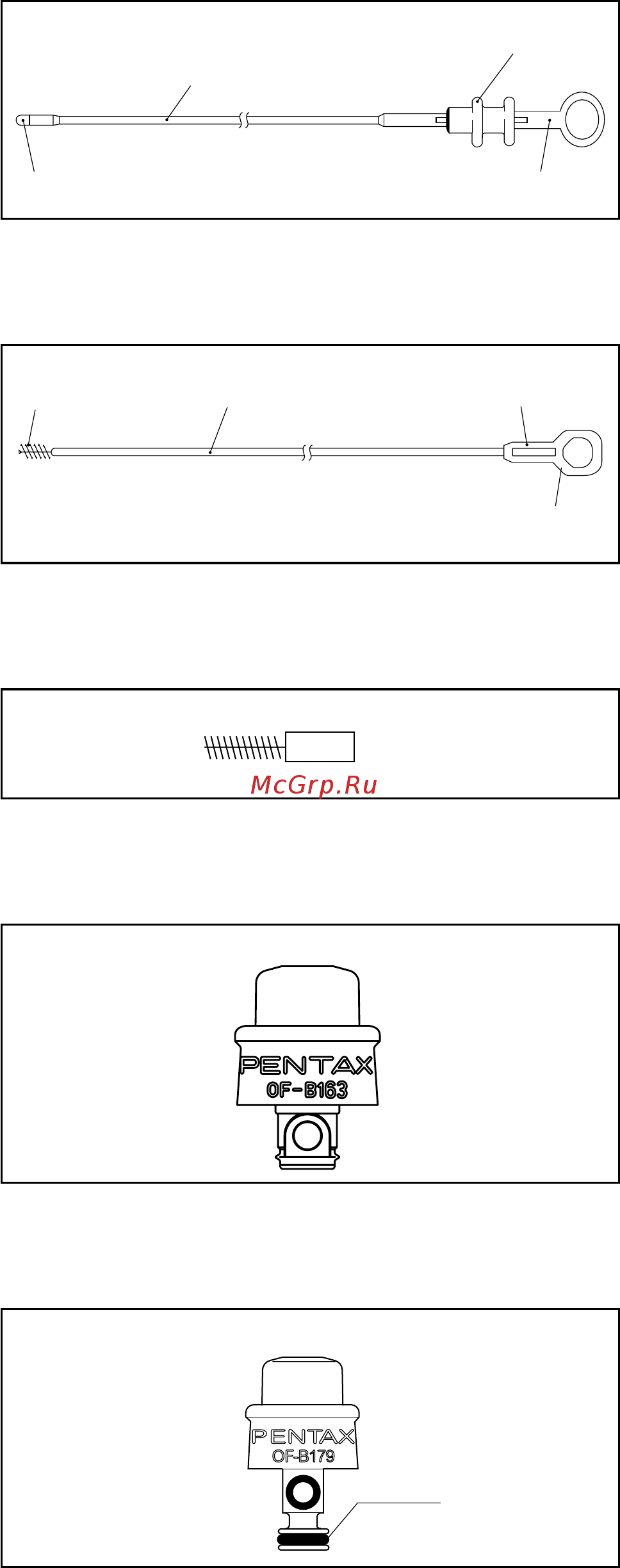

1-2. Accessories

1) Biopsy Forceps

(1)

(2)

(3)(4)

(1) Flexible Shaft

(2) Grip

(3) Handle

(4) Cups/Jaws

Figure 1.1

2) Cleaning Brush

(1) (2) (3)

(4)

(1) White Bristle

(2) Flexible Shaft

(3) Handle

(4) (CS6015ST,

CS6002SN)

Figure 1.2

3) Suction Cylinder Cleaning Brush

(1)

(1) (CS-C3S)

Figure 1.3

4) Irrigation Control Valve

(1) OF-B163

Figure 1.4

5) Suction Control Valve

(1) OF-B179

(2) O-Ring OF-B181

Figure 1.5

(1)

(2)

(1)

Содержание

Ecy 1575k 1
Caution 2
Contraindication 2
Conventions 2
Intended use 2
Prescription statement 2
Sterility statement 2
Warning 2
1 general 5 3
1 inspection of the video processor 0 2 2 inspection of endoscope 2 2 3 preparation just before insertion of endoscope 5 3
1 pretreatment 7 3 2 insertion and withdrawal 7 3 3 biopsy 9 3 4 laser 0 3 5 electrosurgery 2 3
1 servicing 4 5 2 care and maintenance tips 6 3
1 video endoscope 1 2 accessories 1 3 video processors 3
2 cleaning disinfection sterilization procedures for endoscopes 9 3
3 endoscopic accessory instruments eais and endoscope components 2 3
Care after use 5 3
Caution 3
Directions for use 7 3
Important 3
Nomenclature and function 3
Post reprocessing 3 3
Preparation and inspection for use 0 3
Specifications 8 3
Table of contents 3
1 video endoscope 4
Nomenclature and function 4
1 cs c3s 6
1 flexible shaft 2 grip 3 handle 4 cups jaws 6
1 of b163 6
1 of b179 2 o ring of b181 6
1 white bristle 2 flexible shaft 3 handle 4 cs6015st cs6002sn 6
2 accessories 6
Biopsy forceps 6
Cleaning brush 6
Irrigation control valve 6
Suction control valve 6
Suction cylinder cleaning brush 6
1 epk i series 8
3 video processors 8
2 epk 1000 9
Warning replace the lamp cartridge if the indicator turns red and the image quality starts to deteriorate 9
1 inspection of the video processor 10
Preparation and inspection for use 10
2 inspection of endoscope 12
Before reprocessing and or immersion in any fluids pentax endoscopes should be tested for the loss of integrity in their watertight construction by using pentax brand leak testers for specific details on pentax recommended leak detection procedures please refer to the instructions supplied with pentax leak testers 12
Inspection of the insertion tube a check the entire surface of the insertion tube for abnormal conditions such as dents crush marks wrinkles bumps buckles excessive bending protrusions peeling of outer sheath cuts holes or other irregularities any crush or indentation of the flexible shaft of the endoscopes can cause damage to the internal mechanisms of the endoscopes b similarly check the condition of the umbilical cable for outward signs of damage such as buckling crush marks etc 12
Inspection of angulation controls slowly manipulate the angulation control lever to see that it functions smoothly be certain that a full and appropriate range of angulation is possible 18
Inspection of irrigation mechanism a prior to use the irrigation control valve of b163 should be inspected remove the valve from the control body and make sure that the rubber portion is not damaged or worn 19
E any accessory should be slowly inserted through the instrument channel inlet with the endoscope in a straight position there should be no resistance encountered if resistance is encountered do not attempt to introduce the accessory further the instrument channel may be damaged and the endoscope should not be used contact the pentax service department 23
3 preparation just before insertion of endoscope 25
Gently clean the objective lens and the light guides with a cotton tip applicator moistened with 70 90 medical grade ethyl or isopropyl alcohol a lens cleaner anti fogging agent may also be applied via gauze or other applicator 3 check the endoscopic image and confirm that it is of acceptable quality for clinical use refer also to the owner s manual supplied with the pentax video processor for inspection of the image quality 4 apply a medical grade water soluble lubricant to the insertion tube do not use petroleum based lubricants 25
If the endoscope has just recently been reprocessed has been prepared or stored properly and passed all pre procedure inspections the instrument should be ready to use if necessary the endoscope s insertion tube may be wiped down with a gauze dampened with 70 90 medical grade ethyl or isopropyl alcohol 25
1 pretreatment 27
2 insertion and withdrawal 27
Adjust the intensity of the video processor to obtain a brightness level suitable for observation 27
Begin flow of irrigant then insert the endoscope slowly under direct vision 27
Directions for use 27
The angulation control should be used as needed to position the endoscope angulation of the tip should be performed under direct vision in a gentle and deliberate manner should resistance be encountered never apply excessive force 27
The patient should be prepared in your normal endoscopy regimen 27
Image capture hard copy documentation video recording etc may be carried out as necessary 5 when attempting to withdraw the endoscope return the angulation control lever to its neutral position always withdraw the endoscope under direct visualization 28
3 biopsy 29
4 laser 30
Should the distal tip of the endoscope be moved closer than 20 mm from the irradiated tissue surface the aiming beam may create a smear in the image as shown below if this smear affect becomes too severe and distorts the visual field the intensity of the aiming light should be decreased 31
When activating the laser at high power about 100w for yag laser and 60w for diode laser and or if the endoscope tip comes to within 10 mm of the irradiated tissue flare may appear at the corners of the image as shown below 31
5 electrosurgery 32
The operator and assistant s should wear rubber gloves and face masks to avoid burns during use of electrosurgical devices 2 the electrosurgical accessories should be introduced through the endoscope in the same manner as described for biopsy forceps in section 3 3 32
1 1 application 35
1 general 35
As for accessories not listed above please refer to the manual supplied with each accessorry 35
Care after use 35
X available depending upon country and or local pentax distributor each pentax accessory may be an optional accessory 35
1 2 important instructions 36
1 3 internal channels of pentax endoscopes 38
The following internal schematics have been provided as a service to help users better understand the intricate construction of pentax endoscopes please note that all solution entrance ports and flow pathways are illustrated below 38
2 1 pre cleaning 39
2 cleaning disinfection sterilization procedures for endoscopes 39
2 1 1 items required for pre cleaning 40
2 1 2 pre cleaning in a procedure room 41
2 2 leak testing 42
Before reprocessing and or immersion in any fluids pentax endoscopes should be tested for the loss of integrity in their watertight construction by using pentax brand leak testers for specific details on pentax recommended leak detection procedures please refer to the instructions supplied with pentax leak testers 42
Disconnect tubing from the endoscope irrigation nipple and attach the syringe filled to the endoscope irrigation nipple 15 place the distal end of the endoscope into the basin 16 using the syringe flush the 20 ml detergent solution or water into the irrigation channel 17 while the endoscope distal end still immersed in the basin using a 30 ml syringe flush air to purge detergent solution or water out of the endoscope irrigation channel 42
Remove the endoscope pve connector from the video processor 19 carry the endoscope to a cleaning room 42
Transport to the cleaning room 42
2 3 cleaning 43
2 3 1 items required for cleaning 44
2 3 2 preparatory procedure 44
2 3 3 external surfaces 44
2 3 4 channel cleaning with brushes 45
Always immerse the endoscope during brushing 45
Remove the rubber inlet seal of b190 this should be cleaned with the endoscope 45
Still immersed in detergent solution wash the entire surfaces of the endoscope and the rubber inlet seal with clean gauze make sure that the recessed areas such as the endoscope distal tip channel opening valve cylinder etc should be cleaned thoroughly using the brushes provided open the cap when cleaning the rubber inlet seal 45
1 attach the cleaning cap of b155 2 attach the rubber inlet seal of b190 47
1 cs c3s 47
2 3 5 channel cleaning with detergent solution 47
Alwaysimmersetheendoscopeduringflushingthedetergentsolutionintothe endoscope channel 47
Attach 30 ml syringe to the suction irrigation nipple and flush detergent solution 47
Caution 47
Cylinder cleaning 47
Ifresistanceisencounteredduringflushingthedetergentsolutionintothechannel never apply excessive forces to avoid damage to the endoscope do not use the endoscope and contact your local pentax service facility or sales representative 47
Insert the specially designed cleaning brush cs c3s while rotating to scrub clean the surfaces inside the suction irrigation control valve receptacle on the control head do not insert the brush excessively 11 withdraw the brush while rotating clean the debris off the brush by rubbing with fingers 12 brush this cylinder at least 3 times and until it is visibly clean 47
Install the instrument channel cleaning adapter of b155 as illustrated below figure 4 3 the rubber inlet seal of b190 should be in place 47
Warning during flushing detergent solution avoid introduction of air the presence of air bubbles could prevent contact of the detergent solution with channel surfaces 47
2 3 6 immersion in the detergent 48
2 3 7 rinse 49
2 4 high level disinfection 50
Before any attempt is made to disinfect the endoscope the complete cleaning procedure described elsewhere in this manual must have been completed prior to high level disinfection the end user should confirm the minimum effective concentration mec of reused disinfectant as per the manufacturer s instructions before complete immersion in any disinfecting solution the endoscope should have been leak tested as described elsewhere in this manual 50
2 4 1 items required for disinfection 51
2 4 2 preparatory procedure 51
2 4 3 channel disinfection with disinfecting solution 51
2 4 4 immersion in disinfecting solution 52
2 4 5 rinse 53
2 5 sterilization 54
Attach a 30 ml syringe and flush the channel with air 30 ml or more to expel residual alcohol 13 ensure no alcohol exits the endoscope tip if any repeat the step 12 above 14 detach the cleaning cap of b155 and the rubber inlet seal of b190 from the endoscope 15 gently dry all external surfaces of the endoscope the cleaning cap of b155 and the rubber inlet seal of b190 with sterile gauze moistened with disinfectants for disinfection of environmental surfaces 54
Drying of the channel 54
2 5 1 1 preparation 55
2 5 1 eto 55
Ensure the cleaning cap of b155 and the rubber inlet seal of b190 are removed from the endoscope 55
Ethylene oxide eto gas sterilization can be performed on these endoscopes provided the following special instructions are followed to ensure the proper performance of the instrument adhere to the sterilizer manufacturer s instructions and always use chemical and or biological indicator 55
Remove the soaking cap oe c9 from the endoscope 3 attach the eto cap of c5 to the endoscope 55
2 5 1 2 wrap prior to the eto sterilization wrap the endoscope with sterilization wrap or pack 56
2 5 1 3 parameter 56
2 5 2 sterra 56
Systems 50 100s nx 56
The following parameters for ethylene oxide gas sterilization are proposed 56
2 5 3 other methods of sterilization 61
3 endoscopic accessory instruments eais and endoscope components 62
Endoscopic accessory instruments eais and endoscope components can be subjected to the following cleaning and disinfection or sterilization for other items not listed below please refer to the manual supplied with those items 62
Eto or sterra 62
Not all manufacturers of automated endoscope reprocessors aers washer disinfectors wds make specific claims nor provide special instructions for reprocessing all of the removable endoscope components that are integral to the safe and effective operation of flexible endoscopes therefore should the aer wd manufacturer s instructions not specifically address reprocessing of any particular endoscope component suction irrigation valve inlet seal etc in the aer wd then those components must be reprocessed manually as described in pentax instructions labeling prior to use check with each aer wd manufacturer as to their specific claims with respect to reprocessing individual endoscope components 62
Sterilization depending upon country and or local pentax distributor each pentax eai and component may be an optional accessory 62
The soaking cap oe c9 should be attached to the endoscope during cleaning and disinfection the eto cap of c5 should be attached to the endoscope during the 62
X available 62
3 1 1 items required for cleaning 63
3 1 2 cleaning procedure 63
3 1 cleaning 63
3 1 3 ultrasonic cleaning 65
3 1 4 rinse 65
3 2 high level disinfection 66
Manipulate the biopsy forceps kw1811s in the basin 66
Remove all the accessories and the components from the detergent solution 10 using a 10 ml syringe flush air into the lumen of the suction valve of b179 11 wipe all the surfaces of the accessories and the components gently with clean gauze 66
3 2 1 items required for disinfection 67
3 2 2 disinfecting procedure 67
3 2 3 rinse 67
3 3 1 eto 68
3 3 sterilization 68
For the eto sterilization of the accessories and the components follow the instructions supplied with each item 68
3 3 1 1 wrap prior to the eto sterilization wrap the accessories and the components with sterilization wrap or pack 69
3 3 1 2 parameter 69
3 3 2 steam sterilization autoclaving 69
For the steam sterilization of the accessories and the components follow the instructions supplied with each item 69
3 3 2 1 wrap prior to the steam sterilization wrap the accessories and the components with sterilization wrap or pack 70
3 3 2 2 parameter 70
3 3 3 sterra 70
After the sterilization ensure that the package is intact if there are any signs of abnormalities such as stains tears or any other indications that the packaging has previously been damaged or opened repeat the sterilization with a new packaging 70
Autoclave can be performed under the following conditions 70
Caution 70
Contact the manufacturer regarding directions for use of the wrap or pack 70
For countries except usa 70
For usa 70
Note for usa 70
Of b190 can be subjected to sterra 70
Prior to sterilization clean and dry the components thoroughly failure to do so could result in ineffective or incomplete sterilization 70
Sterilization 70
Systems 50 100s nx 70
The suction valve of b179 the irrigation valve of b163 and the rubber inlet seal 70
Use chemical indicator ci and or biological indicator bi to control the sterilizationprocessandensuresterilizationefficacy 70
Use the wrap suitable to steam sterilization 70
Validation testing of these parameters was performed using kimberly clark wrap kc 600 70
Warning 70
Following reprocessing the endoscope may either be reused or placed in storage 2 prior to reuse ensure that instrument has been properly inspected and fully prepared for the next clinical procedure 3 prior to storage ensure that all internal channels endoscope components instrument surfaces and accessories are thoroughly dry 4 a cotton tipped applicator moistened with 70 90 medical grade ethyl or isopropyl alcohol may be used to carefully remove any films or residues left upon the lens surfaces such as the distal objective lens 5 the endoscope should be hung in a clean dry well ventilated storage cabinet at room temperature the insertion tube and light guide cable should be hung and kept as straight as possible during storage 73
Post reprocessing 73
1 servicing 74
2 care and maintenance tips 76
1 light guide 2 objective lens 3 light guide 4 instrument channel 78
Distal end 78
Specifications 78
Notice 80
These instruments are used with class b medical equipment specified cispr11 and are intended for hospital or health care districts 80
To avoid and resolve adverse electromagnetic effects do not operate these instruments near the rf energy equipment 80
Together these endoscopes and the compatible processor comply with en 60601 1 2 for eu iec 60601 1 2 for other countries 80
When used in clinical or residential areas near radio and tv receiver units these instruments may be subjected to radio interference 80
