– 41 –
4-2-1-2. Pre-cleaning in a procedure room
1) Wear the protective garments.
2) Prepare a 500 mL basin with water or detergent solution per manufacturer’s
instructions.

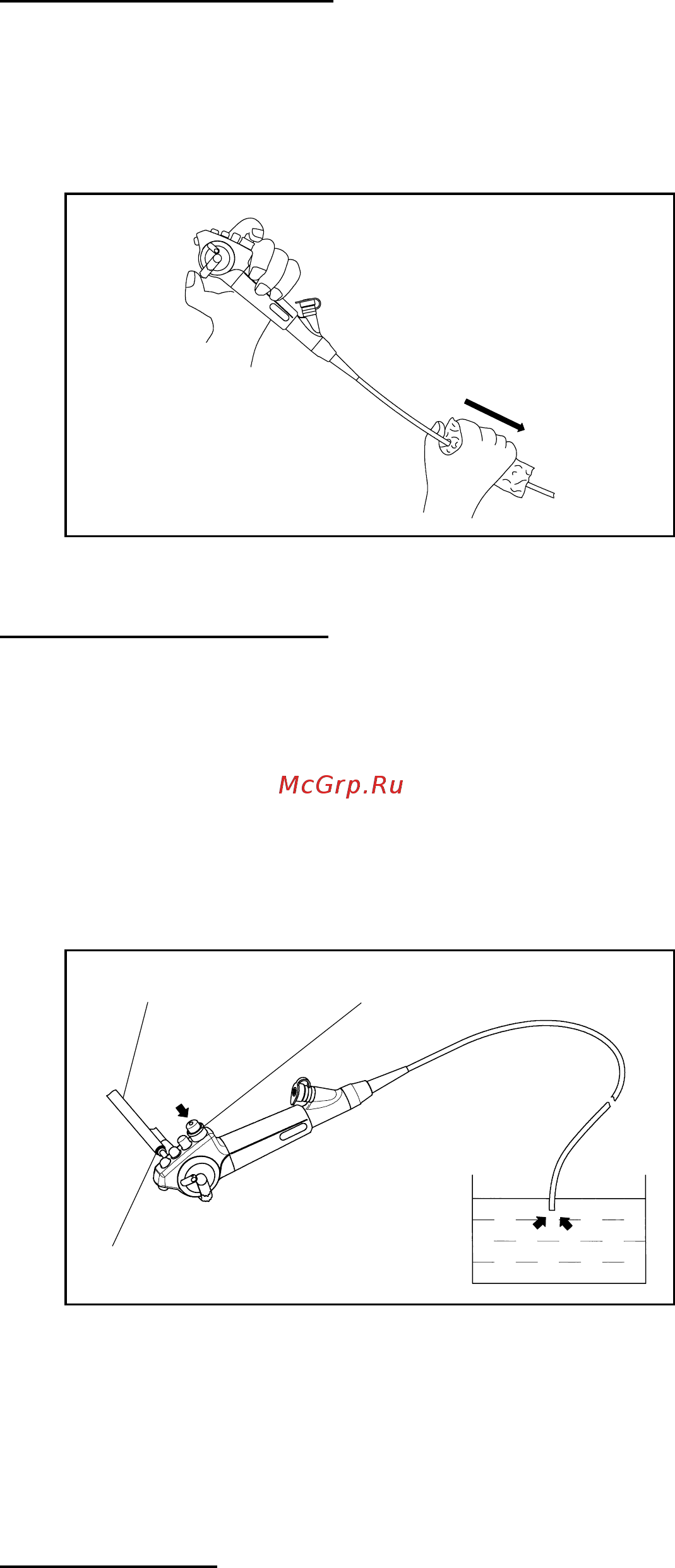

Wiping of the insertion tube
3) Turn off the lamp switch of the processor.
4) Immediately after removing the endoscope from the patient, gently wipe all
debris from the insertion tube with gauze moistened with water or detergent
solution.
Figure 4.3
Suction/instrument channel
5) Ensure the rubber inlet seal (OF-B190) and the suction valve (OF-B179) are
attached.
6) Ensure a suction tube from an external suction source is connected to the
endoscope suction nipple.
7) Turn on the external suction source.
8) Place the distal end of the endoscope into the basin and aspirate through the
channel for 5 ~ 10 seconds.
(1)
(4)
(2)
(3)
(1) Suction Tube
(2) Depress
(3) Suction Control Valve
(4) Suction Nipple
Figure 4.4
9) Remove the distal end from detergent solution or water and aspirate air through
the endoscope channel to remove any residual detergent or water.
10) Turn off the external suction source.
11) Disconnect tubing from the endoscope suction nipple.
Irrigation channel
12) Ensure the rubber inlet seal (OF-B190) and the irrigation valve (OF-B163) are
attached.
13) Fill a 30 mL syringe with detergent solution or water from the basin.
