Pentax ECY-1575K [4/80] Nomenclature and function
![Pentax ECY-1575K [4/80] Nomenclature and function](/views2/1513340/page4/bg4.png)
BUTTON 1
Push to freeze an image.
BUTTON 2
Push to activate the
hardcopy system that
was selected between
“FILE” and “HARD
COPY”.
RUBBER STRAIN RELIEF
IRRIGATION NIPPLE
For attachment to external
suction source
BUTTON 3
Push to activate the VCR for
recording live procedures.
BUTTON 4
Push to change the intensity of
enhancement that was previously
assigned.
ANGULATION CONTROL LEVER
Angulates the distal end.
RUBBER INLET SEAL (OF-B190)
Allows passage of accessories while
preventing escape of uids and air.
UMBILICAL CABLE
IRRIGATION CONTROL VALVE (OF-B163)
Press down to reduce or stop ow of
irrigant.
CONTROL BODY
INSTRUMENT
CHANNEL INLET
RUBBER STRAIN RELIEF
STERRAD
®
system material compatibility identication symbol.
This symbol denotes this endoscope’s material compatibility with the
STERRAD
®
50/100S/NX™ sterilization systems.
The endoscope that does not have this symbol is incompatible to
STERRAD
®
50/100S/NX™ system. Never try to perform STERRAD
®
sterilization to those endoscopes.
– 4 –

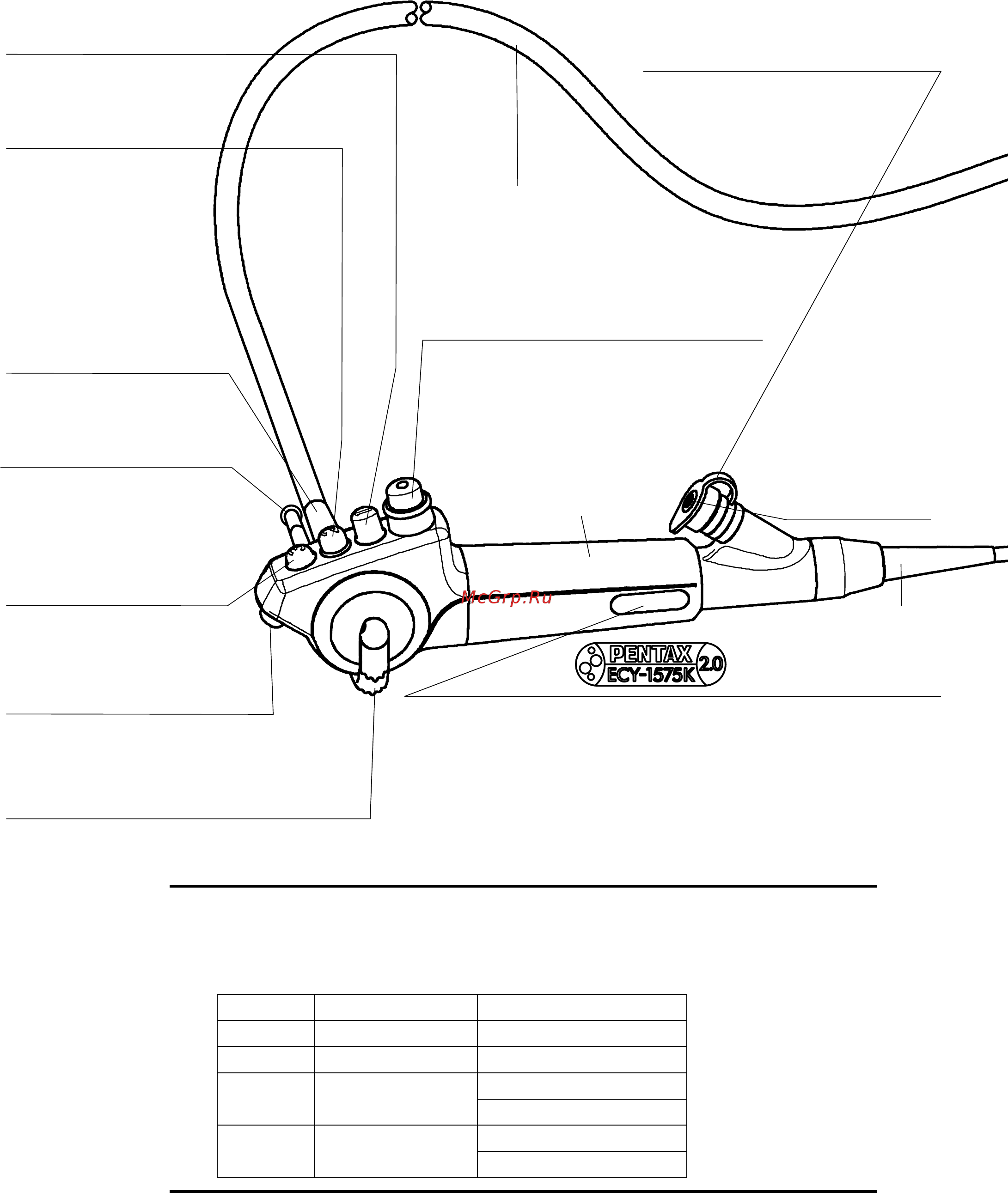

1. NOMENCLATURE AND FUNCTION
1-1. Video Endoscope
NOTE:
Function of each button depends upon the processor. The function can be changed. For more
details, refer to the manual supplied with the processor. The following table shows the factory
setting.
EPK-i series EPK-1000
Button 1 Freeze Freeze
Button 2 Hard Copy Hard Copy
Button 3 VCR
VCR (for NTSC)
Enhance (for PAL)
Button 4 Enhance
Enhance (for NTSC)
AVE/PEAK (for PAL)
