12
AUTO BOOSTER
Original Instructions
4 Operation
4.1 Setting up the AUTO
BOOSTER
The AUTO BOOSTER is desig-
ned as a user-friendly, self-
service product, where the user
can buy operation time to wash
his vehicle.
Several features are adjustable
by the owner, in order to pro-
vide a certain offering for a
certain price.
● The owner must decide
which payment to accept –
coins of national currency
and/or tokens,
● and how long washing time
should be assigned to speci-
4.1.2 Coin selector settings The coin selector (17) in the
AUTO BOOSTER is European
type, accepts €, £ and CHF and
tokens
fi c coins / tokens.
The AUTO BOOSTER provides
5 different program steps with
the possibility to add 2 different
detergents.
● The owner must decide if
the individual program steps
should run with hot or cold
water.
● Also the detergent concen-
tration of the 2 detergents
must be determined within
the range of Nilfi sk-ALTO
recommendations.

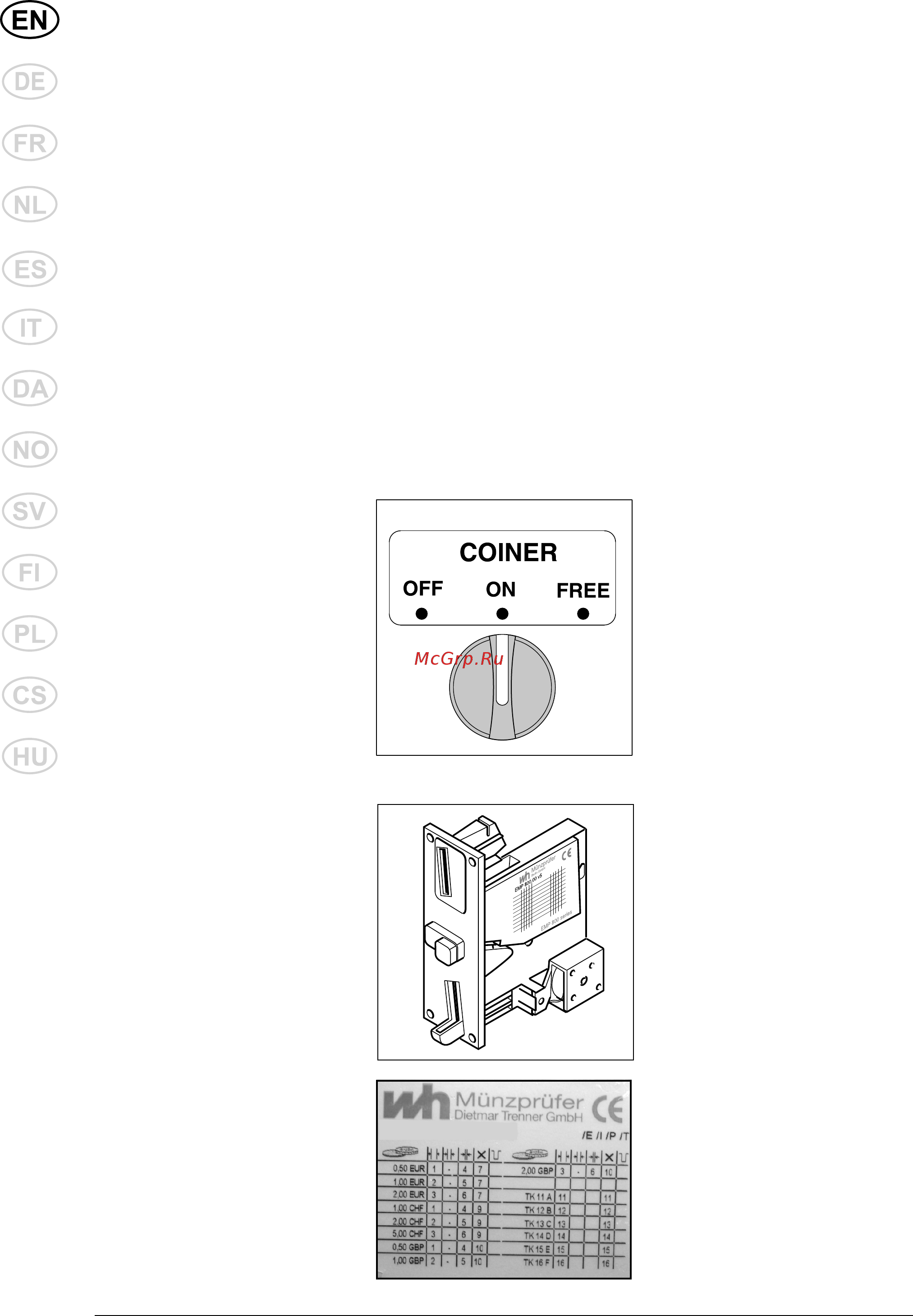

4.1.1 Coin operation Normally the AUTO BOOSTER
can only be started and used
when appropriate payment is
done.
OFF: Machine cannot be used.
Coin will return.
ON: Normal operation. Coin
selector active.
FREE: Machine can be used
without inserting coins.
The type is shown at the label
on the side of the coin selector.
European type
