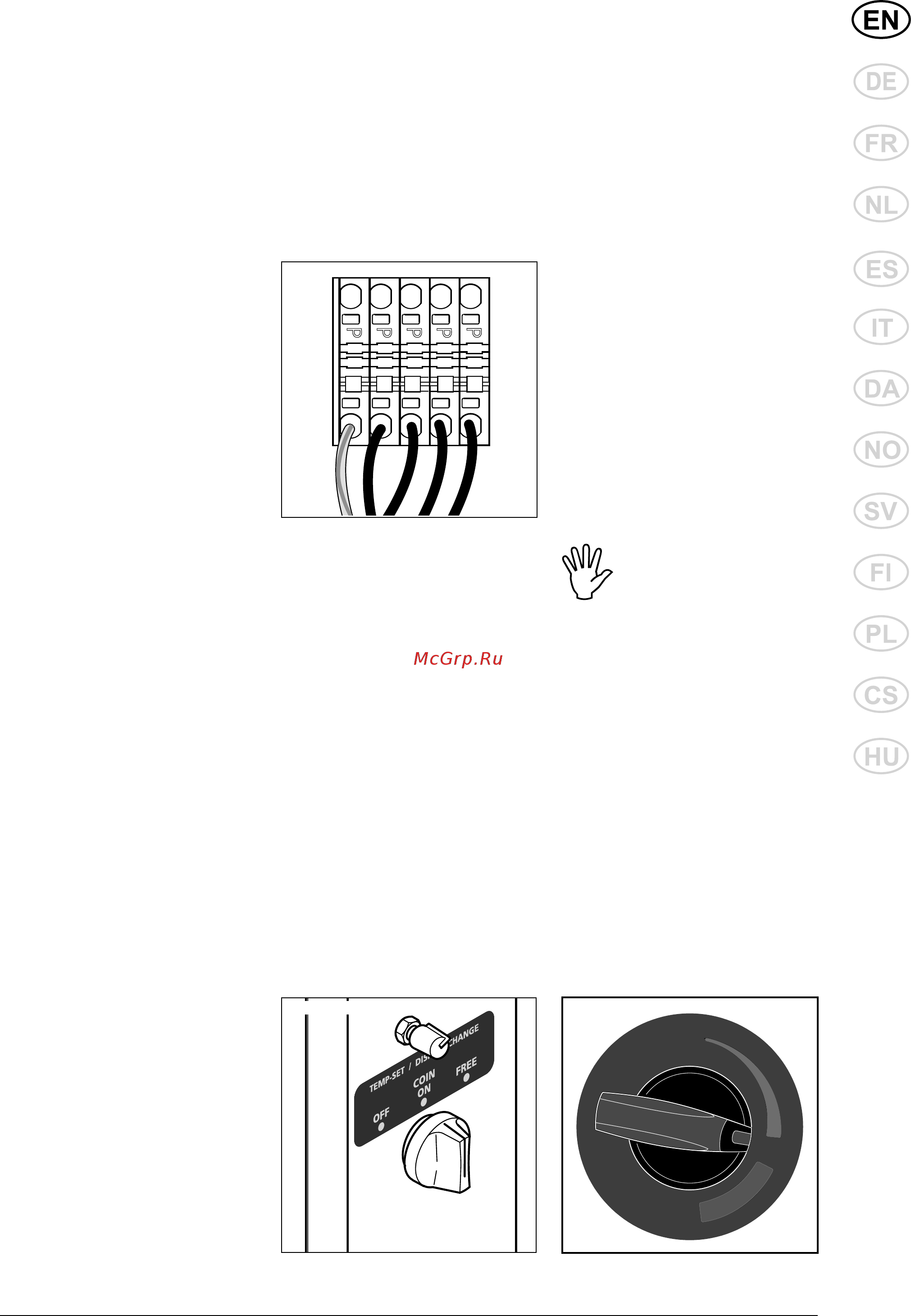

9
AUTO BOOSTER
Original Instructions
The electric cable can be lead
in through:
1. The bottom plate
2. The punch-out pieces in the
rear plate and through the
relief ring into the junction
box.
(see foldout at the end of this
manual).
• Connect protective earth
wire to the earthing terminal.
• Check and measure the
protective earth connection
according to legislation.
• Connect the other end of
the cable to an approved
pluggeed socket outlet of a
correct dimensioned main
supply.
All terminals are placed in junc-
tion box X2.
Make sure that the cable is
properly guided and relieved
between the fi xed installation
and the machine and that the
cable is without any damage to
the insulation.
Also see notes in section
“1 Safety precautions and
warnings”!
Note: Beware that the
electric cables of the
machine are not mixed
up. The wires 1, 2, 3, 4 MUST
keep the illustrated positions.
Assembly box, mains cable
(see pos. 18 on foldout at the
end of this manual)
3.6 Venting of HP-pump,
fuel pump and detergent
pumps
When the AUTO BOOSTER is properly connected to supply water,
electrical installation and the wash boom / high-pressure hose
are fi tted, the AUTO BOOSTER’s hydraulic and fuel lines must be
vented before it is operational.
● Set thermostat (5) to 40 ºC. AUTO BOOSTER D: Adjustment on
the side of the electric box. Temperature appears from display.
Change of digital readout - press potentiometer.
● Fill fuel into the fuel container (9).
● Fill No Scale into the container (22).
● Fill detergent containers (8) with the appropriate detergents (see
section 4.1.8).
20°
40°
60°
C°
Connect the phase cords of
the supply cable to the con-
nection terminals L1, L2 and
L3. Connect the neutral cord
to N. For single phase machi-
nes use L1 and N to connect
phase and neutral cords.
1
N
PE L1 L2 L3
AUTO BOOSTER EAUTO BOOSTER D
