16
AUTO BOOSTER
Original Instructions

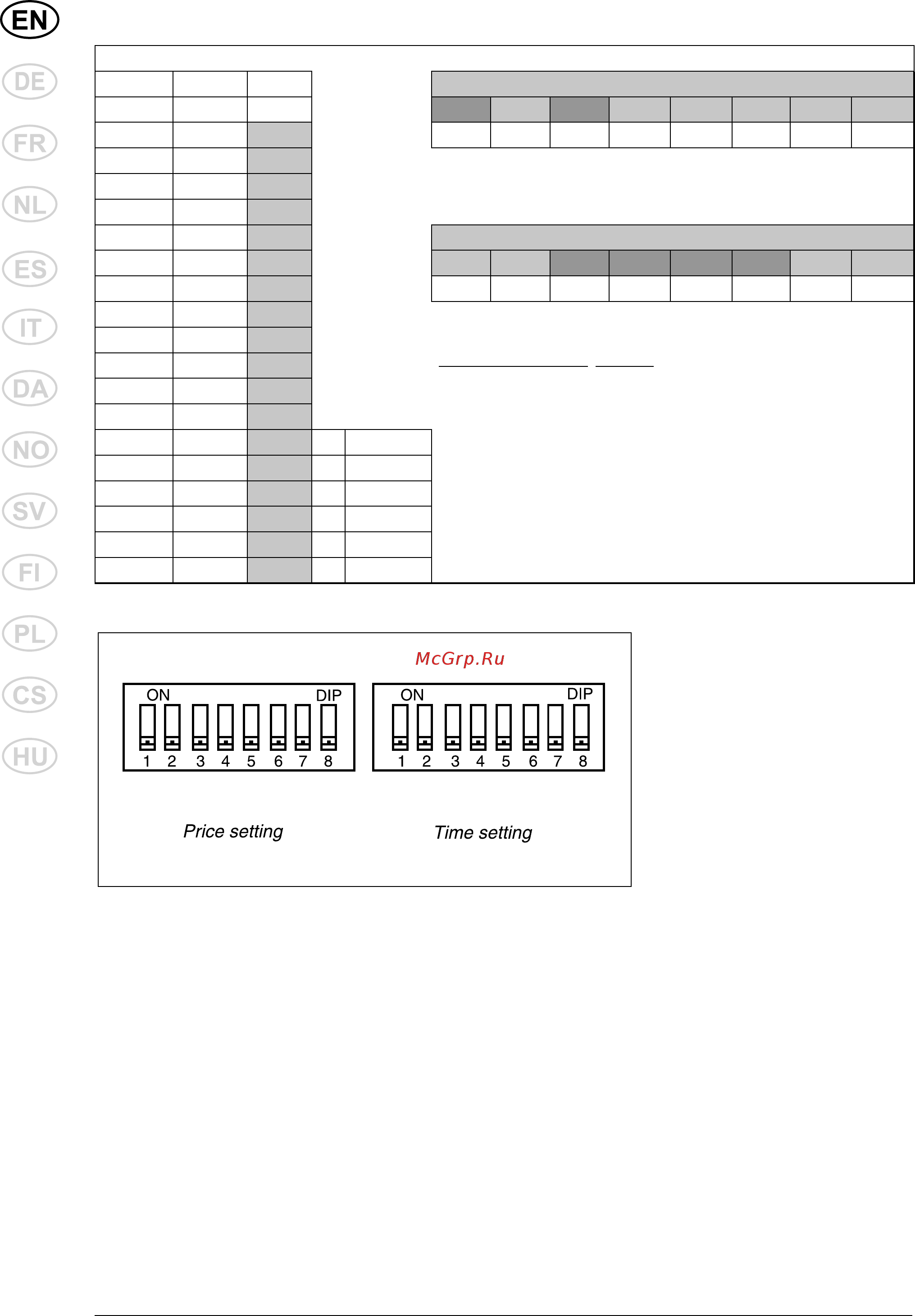

See below table for coin selector:
Settings for Coin Selector
Price Setting: Select minimum price (basis for time setting)
Coin type Currency Pulses
Minimum price switch
Switch 3
1234 567 8
0,50 EUR 1
Price
0,50 1,00 2,00 4,00 8,00 16,00 32,00 64,00
1,00 EUR 2
2,00 EUR 4
Select time value in Sec's for selected "minimum price"
1,00 CHF 2 Time setting (Time / minimum price)
2,00 CHF 4
Switch 4
1234 567 8
5,00 CHF 10
Value
1 2 4 8 16 32 X10
Sec./Min.
SW8 ON = Minutes, SW8 OFF = Seconds
0,50 GBP 1
Example of setting in €-country:
Owner wants 2,5 € to be inserted before machine can start:
Flip SW1 & SW3 (0,50 € + 2,00 €) on "Minimum price switch" (# 3).
Owner wants to assign 11 minutes to the minimum price 2.5 €:
Flip SW1, SW2, SW4, SW8 (1+2+8+Sec./Min. = 11 Min.) on "Time Set-
ting Switch" (# 4).
All other coin values will be adjusted proportionally by the timer - i.e. 1€
will be 240 sec's, or 4 minutes.
Owner also wants to use a coin with an assigned value of 3 €:
As 1 € corresponds to 2 impulses, 3 € equals 6 impulses - so owner
teaches "TK13C" to recognize the coin (see how in sect. 4.1.3).
1,00 GBP 2
2,00 GBP 4
TK11 A 2 1 €, CHF, £
TK12 B 4 2 €, CHF, £
TK13 C 6 3 €, CHF, £
TK14 D 8 4 €, CHF, £
TK15 E 10 5 €, CHF, £
TK16 F 12 6 €, CHF, £
Switch # 3
Switch # 4
Minimum price setting:
Use pins to set minimum price
Time setting:
Use pins to set time value of
minimum price.
4.1.5 Maintenance of coin
selector
The coin selector should be cleaned at regular intervals especially
if it is operating in an environment with high levels of dust, smoke
or nicotine. The cleaning intervals are of course dependent on the
level of air borne contaminants.
Modest use with minimum contaminant levels indicates the need to
clean the top of the coin path once a year. Open the coin path door
and wipe the exposed surfaces with an alcohol moistened cloth.
The light sensors may be cleaned with a soft brush or air spray
duster.
