AUTO BOOSTER

Original Instructions

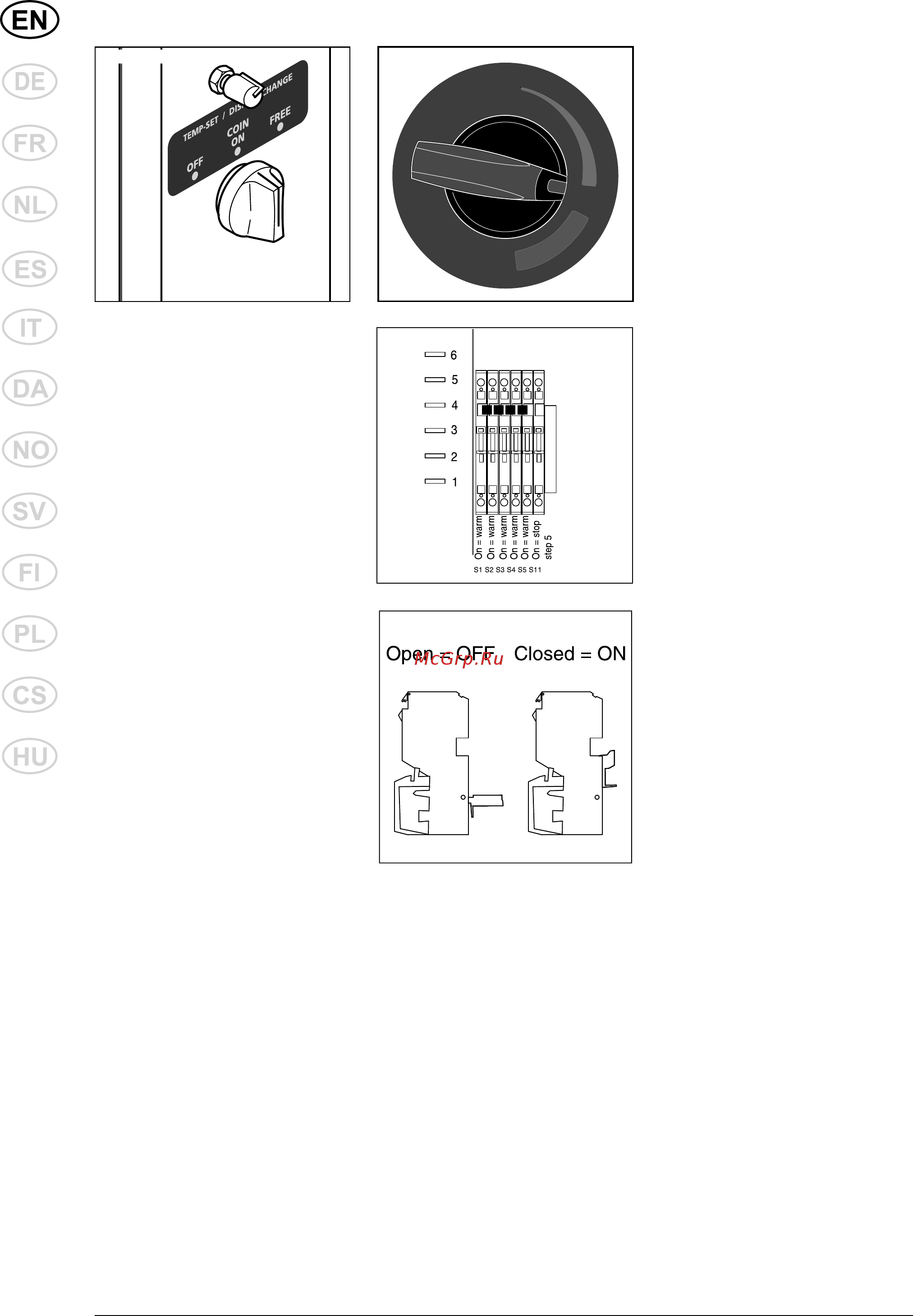

4.1.7 Temperature setting

The overall setting of the hot

water temperature, is done on

the Thermostat (5) (max 60º C).

AUTO BOOSTER D: Adjust-

ment on the side of the electric

box. Temperature appears from

display. Change of digital rea-

dout- press potentiometer.

Recommended temperature for

car cleaning: 40°C.

Each program step can be

assigned either cold or hot

(thermostat temperature) water,

which is done on the 5 “Hot/

Cold” switches S1, S2, S3, S4,

S5 (one pr. program) located

inside the electric box.

20°

40°

60°

C°

An Open switch assigns cold

water.

A closed switch assigns hot

water.

AUTO BOOSTER EAUTO BOOSTER D
