AUTO BOOSTER
Original Instructions
To ease access to the label and
coin selector switches, the coin
selector can be unclipped from
the front panel.
Upon reception of the AUTO
BOOSTER all the coins of the
currencies listed on the label
will be accepted.

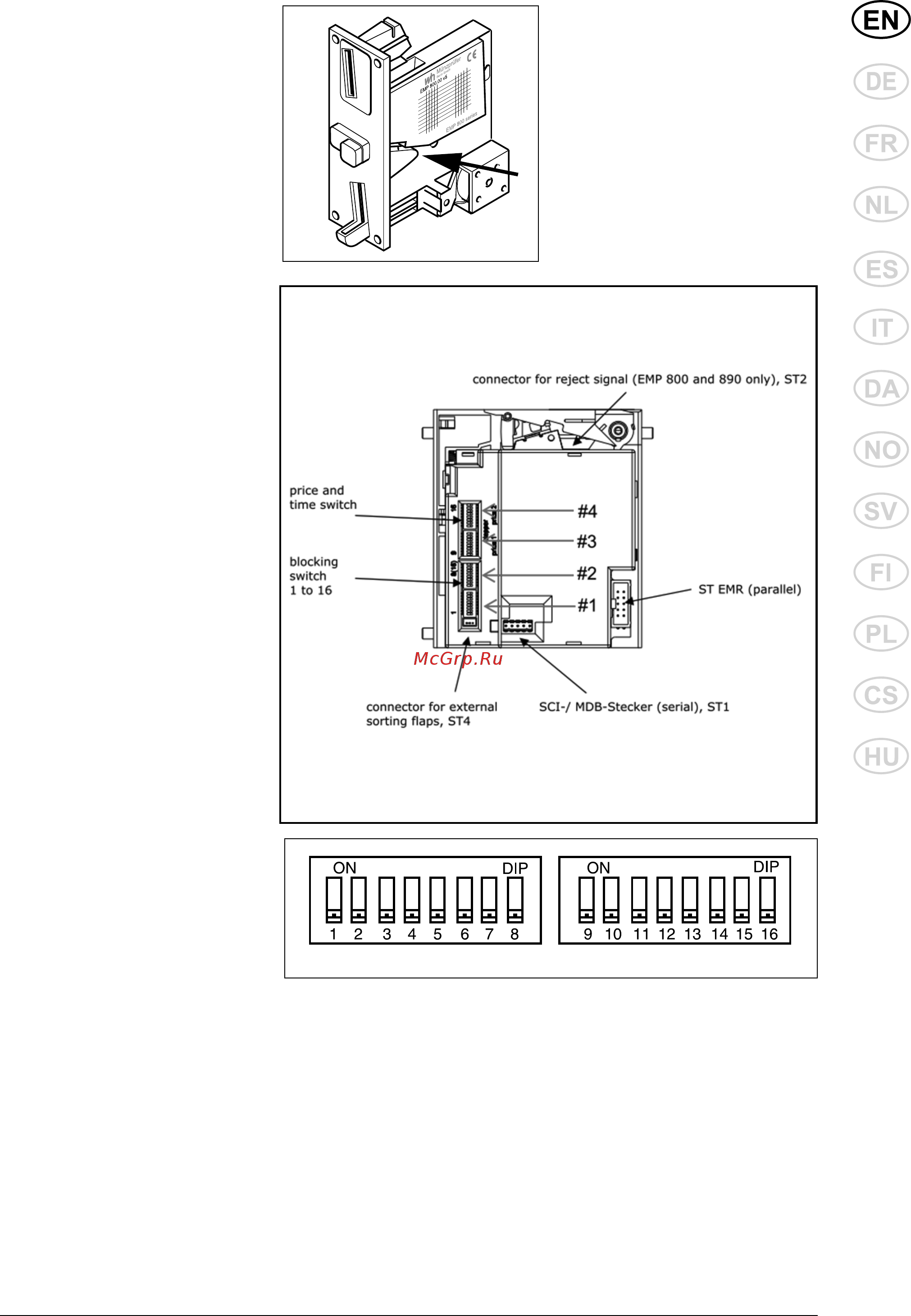

The owner can “block” coins of the currencies not valid in his coun-
try with the “blocking switches” on the side of the coin selector .
European type:
● Blocking switch 7 = “ON”, blocks all € - coins
● Blocking switch 9 = “ON”, blocks all CHF-coins
● Blocking switch 10 = “ON”, blocks all £ - coins
Example: An owner in Germany wants the AUTO BOOSTER coin
selector to accept only € - coins.
● Blocking switch 7 must be in “OFF” position to accept € coins
(0.50€ - 1.00€ - 2.00€).
● Blocking switches 9 and 10 must be “ON” to disable CHF and £
coins.
