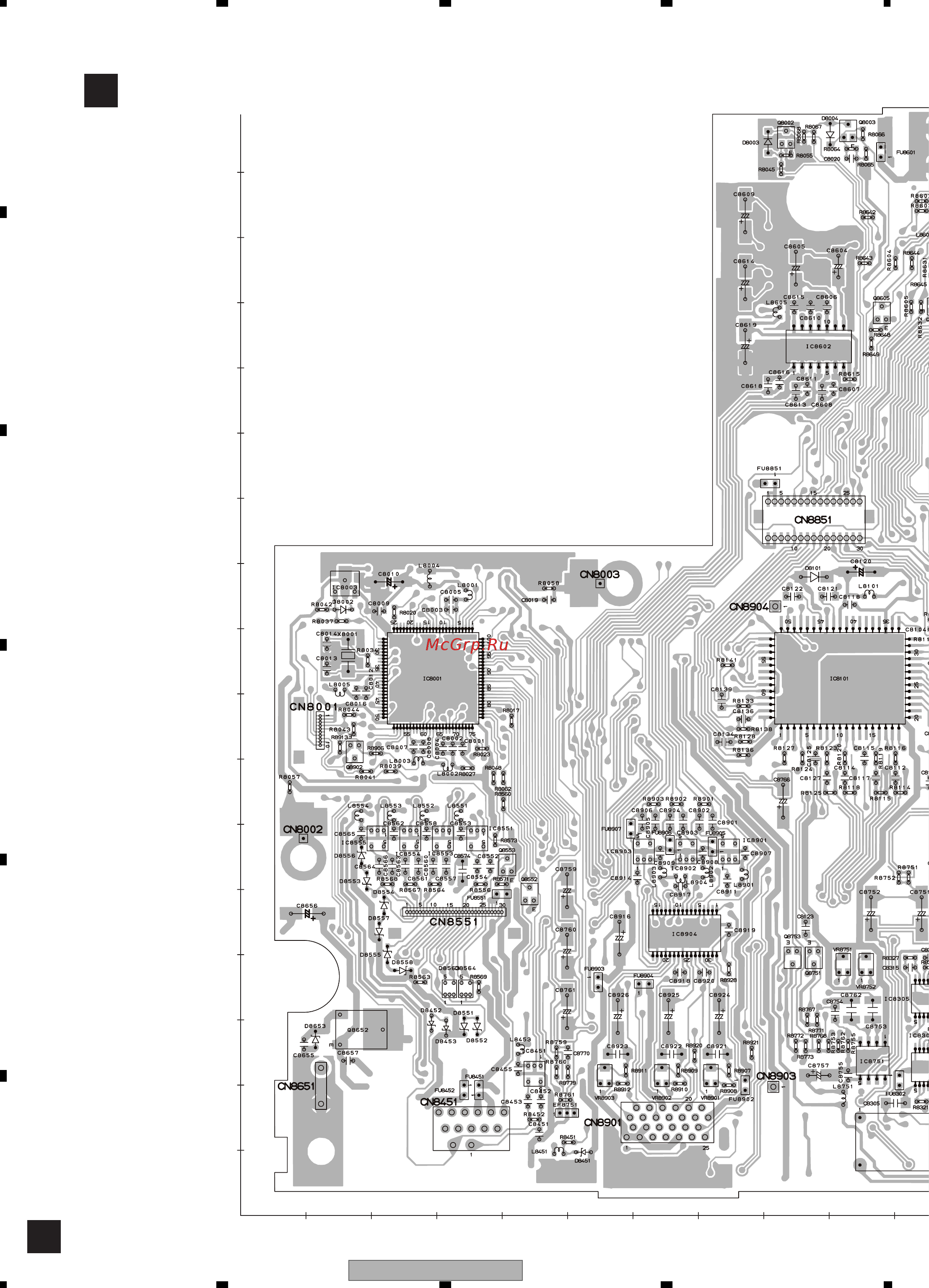

4.8 TUNER SELECTOR UNIT
I
I
TUNER SELECTOR UNIT
10 20 30 40 50 60 70 80 90 100
X
0
160
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
Y
>FU 8251 (A,121,31) Fuse 3 A CEK1286
>FU 8301 (A,115,27) Fuse 3 A CEK1286
>FU 8451 (A,36,19) Fuse 3 A CEK1286
>FU 8452 (A,34,19) Fuse 5 A CEK1289
>FU 8601 (A,98,163) Fuse 3 A CEK1286
>FU 8751 (A,138,21) Fuse 3 A CEK1286
>FU 8752 (A,170,18) Fuse 3 A CEK1286
>FU 8902 (A,77,20) Fuse 3 A CEK1286
>FU 8903 (A,55,36) Fuse 3 A CEK1286
>FU 8904 (A,62,35) Fuse 3 A CEK1286
>FU 8905 (A,72,56) Fuse 3 A CEK1286
>FU 8906 (A,66,57) Fuse 3 A CEK1286
>FU 8907 (A,60,59) Fuse 3 A CEK1286
AV BUS IN COMPONENT OUT
BAC
K
