AVH-P7800DVD/UC
233
5678
56
7
8
C
D
F
A
B
E
11
3
3
3
3
22
3
3
1
3
2
4
7
Caution:
Be careful as the DVD Mechanism
Module will drop down if the screws are
removed with the product being held
upside down.
Tilt the bracket toward the Upper Case.
Disconnect the two connectors and
then remove the DVD Mechanisum
Module.
Fig.4
Lower Case
Panel Unit
Cover
Upper Case
Bracket
DVD Mechanism Module
(Bottom side)

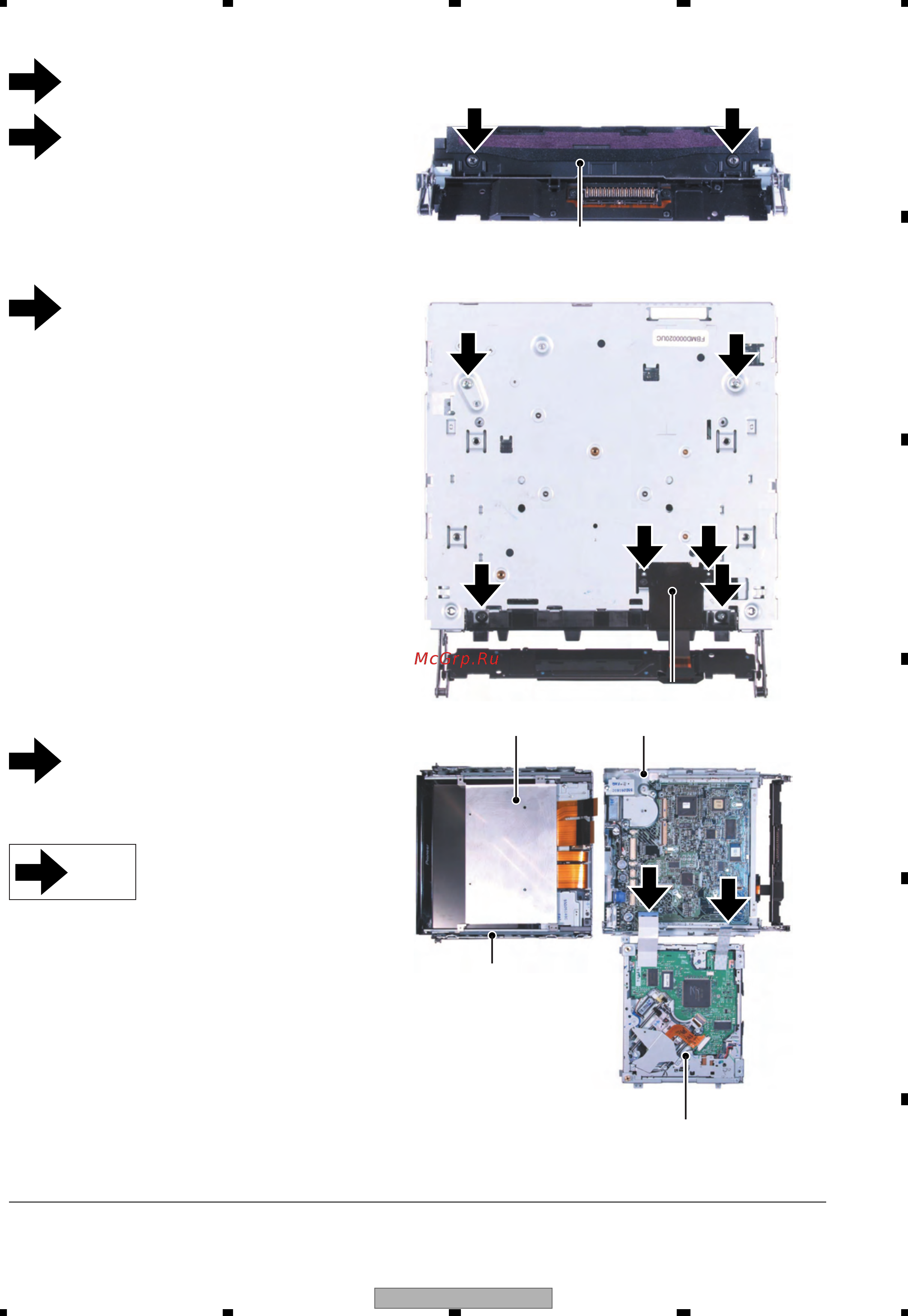

- Removing the DVD Mechanism Module (Fig.4)
Remove the two screws.
Remove the two screws.
Remove the cover.
Remove the Panel Unit.
Remove the four screws.
Note) Be careful not to damage a screen.
of Fig. 3 Disconnect the connector.
