AVH-P7800DVD/UC
222
1234
1234
C
D
F
A
B
E

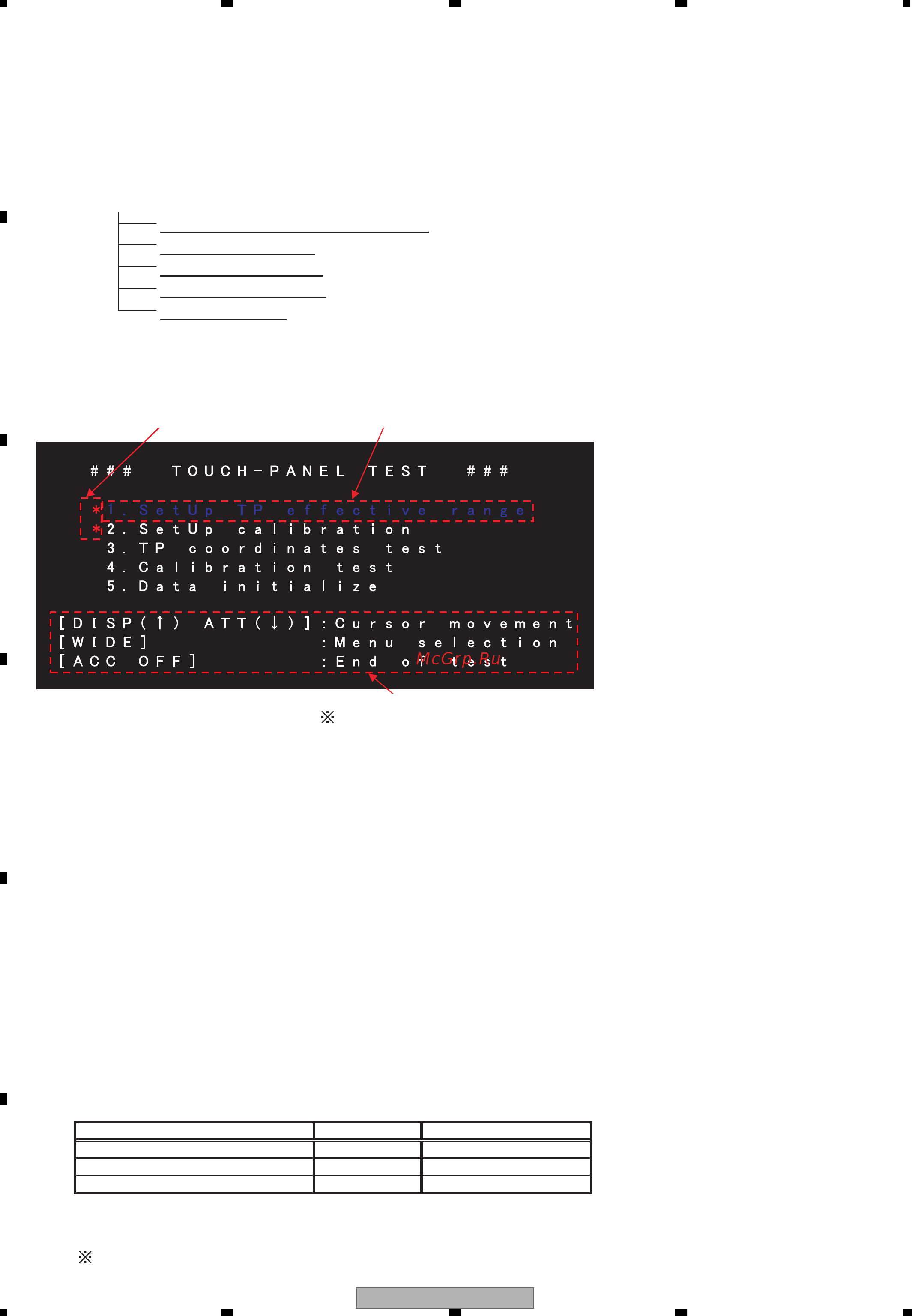

6.8 TOUCH PANEL TEST MODE
[How to activate]
■ Turn the power on while pressing TI and OPEN/CLOSE, the system will proceed to the calibration test mode.
[Menu types in the mode]
■ The calibration test mode consists of the following menus.
Top menu
[Description of the top menu]
[Display specifications]
Outermost circumference inspection
Coordinate inspection
Calibration verification
16 points adjustment
Data initialization
■ Conditions for the adjustment completion mark (*) to be lighted up.
(The mark will be lighted up if one of the multiple conditions is met.)
■
Outermost circumference inspection
• When the outermost circumference inspection of the calibration for line has been completed normally.
■
16 points adjustment
• When the calibration inspection for line has been completed normally.
■ Conditions for the adjustment completion mark (*) to go out.
(The mark will go out if one of the multiple conditions is met.)
■
Outermost circumference inspection
• When the above mentioned lighting conditions are not applicable.
• When the adjusted value has been initialized (Data initialize).
• When the EEPROM has been initialized.
■
16 points adjustment
• When the above mentioned lighting conditions are not applicable.
• When the adjusted value has been initialized (Data initialize).
• When the EEPROM has been initialized.
[Key operation specification]
■ Select a menu desired to be adjusted by using the key allocated for "selected cursor up/down movement",
and enter the selected menu by using the key allocated for "menu enter".
There is no condition for the menu entering.
Selected cursor down movement ATT
↓
Selected cursor up movement BAND
↓
Menu enter WIDE MENU_ENTER
Operational description Main unit key Remote controller key
Operational specifications are displayed.
Operation procedure by the main unit keys only is displayed
due to the limitation of the display space. When operating by
the remote controller, refer to these specifications.
Adjustment completion indicator mark Item being selected is indicated in blue
