AVH-P7800DVD/UC
188
1234
1234
C
D
F
A
B
E

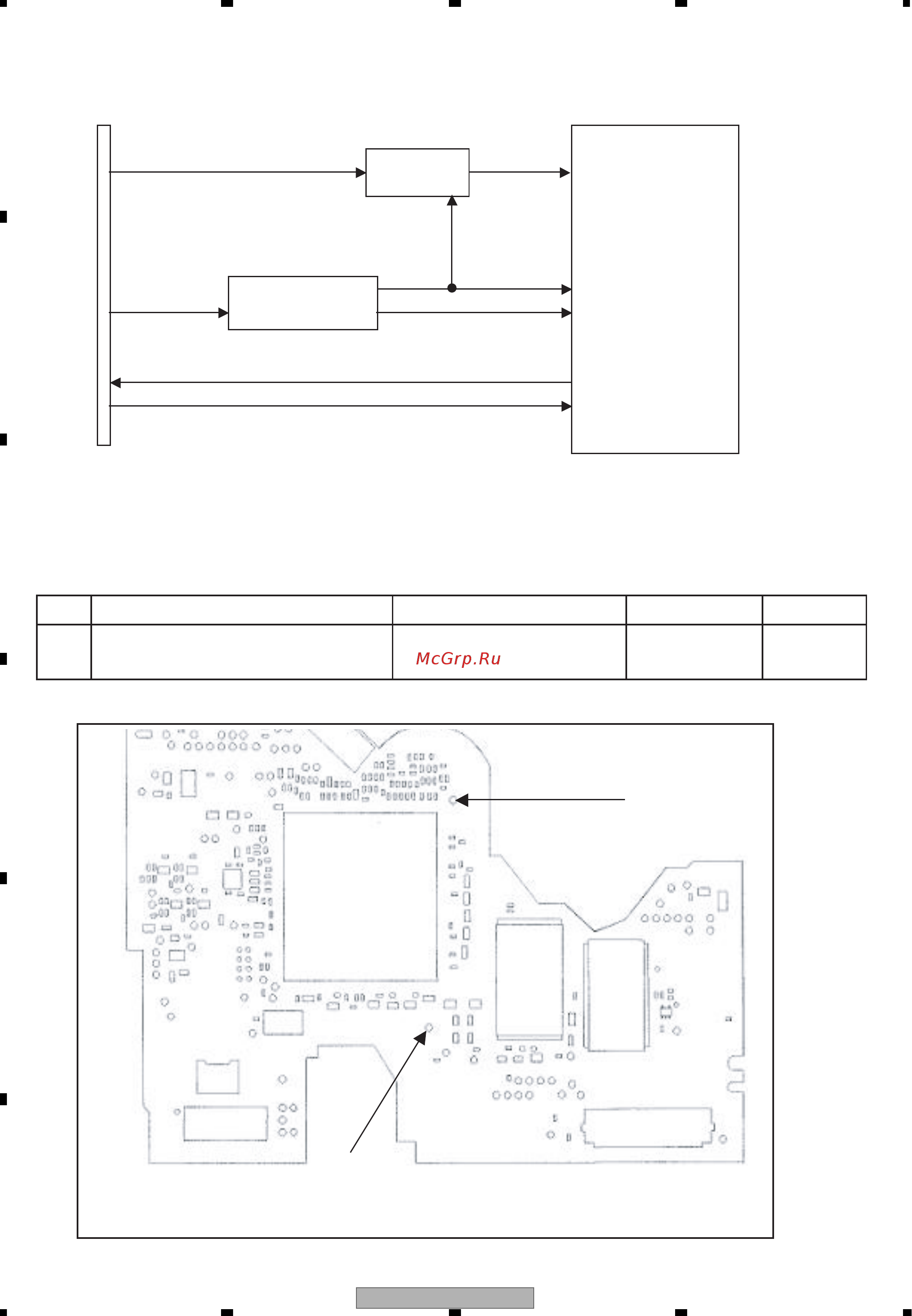

Fig.4.2 : VSENS check point
VSENS
DGND1
CN1901
HOST I/F
VD8
VSENS
VCC33
VDD5 VCC12
STANBY
XRES
Fig.4.1 : Power supply and VSENS
1 VSENS - DGND1 ALL VCC33 x 0.7
or over
V
Side A
IC1501
DVD-LSI
IC1003
DC/DC converter
IC1002
Detection IC
Check 4 : VSENS OK?
<Check>
Verify the voltage of the sensing pin in the state where the power supply is on.
It checks on the basis of DGND.
No. Verification location Module No. Rated value Unit
