AVH-P7800DVD/UC
4
1234
1234
C
D
F
A
B
E

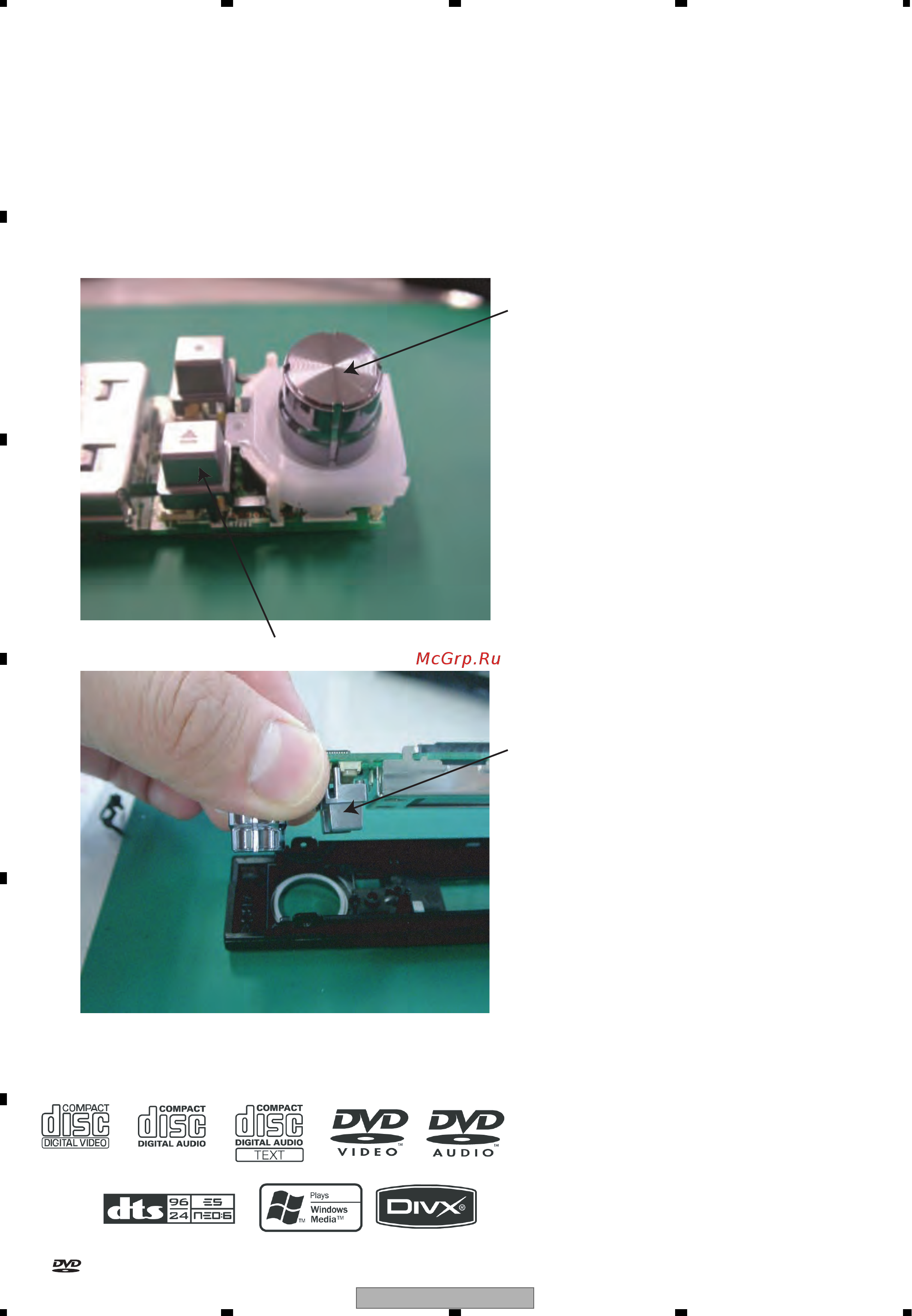

Note) Button unit (CXC6641) is a non-reusable part. When repairing a PCB, repair without removing the button unit.
In case the button unit must be removed, do not reuse the removed button unit and use a new one.
For this product, the button unit, CXC6641, is designated as a non-reusable part because the hook part will come
off once the part is removed from the device.
When repairing the grill, repair without removing CXC6641.
A special technique will be required to install the PCB into the grill with CXC6641 mounted.
As shown in the picture below, assemble CXC9683 with the PCB beforehand. And insert the PCB into the grill by
holding CAC9683 and CXC6641 so that they will not drop off.
CXC6641
Insert into the grill while holding the parts.
Assemble CAC9683 beforehand as shown in the picture.
is a trademark of DVD Format/Logo Licensing Corporation.
