AVH-P7800DVD/UC
73
5678
56
7
8
C
D
F
A
B
E
VHALF
VHALF
VHALF
0
VHALF VHALF
VHALF VHALF

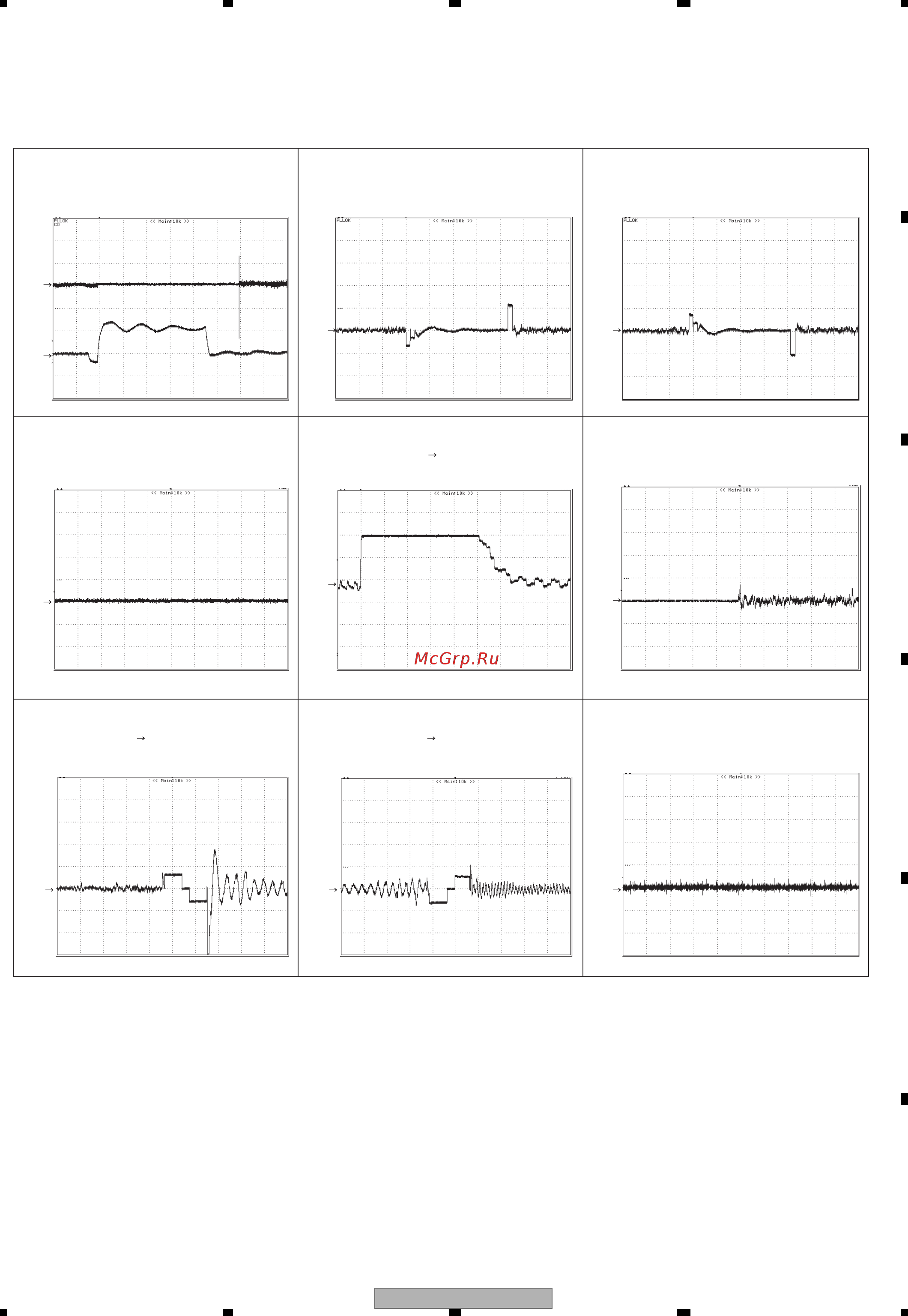

2CH1 : TD1 0.5 V/div 20 ms/div
3CH2 : COP-COM 2.0 V/div 20 ms/div
Traverse 5000 REV
2TD1 0.5 V/div 500 us/div
Multi 32 FWD
2TD1 0.5 V/div 500 us/div
Multi 32 REV
2TD1 0.5 Vdiv 20 ms/div
Play TD
4CRGDRV 0.5 v/div 100 ms/div
ID search Inside Outside
5FD1 0.5 V/div 1 ms/div
Focus Close
5FD1 0.5 V/div 500 us/div
Focus Jump L0 L1
5FD1 0.5 V/div 500 us/div
Focus Jump L1 L0
5FD1 0.5 V/div 20 ms/div
Play FD
VHALF
VHALF
Note:1. The encircled number denote measuring pointes in the circuit diagram.
2. Reference voltage VHALF : 1.65 V(TD1,FD1,CRGDRV)
: 1.55 V (RF)
In this waveform, it is seeing on the GND standard.
Offset of 1.65 V or 1.55 V is put in.
