Ricoh Aficio SP 1210N [39/129] Advanced tab

Driver and Software

Advanced tab 3

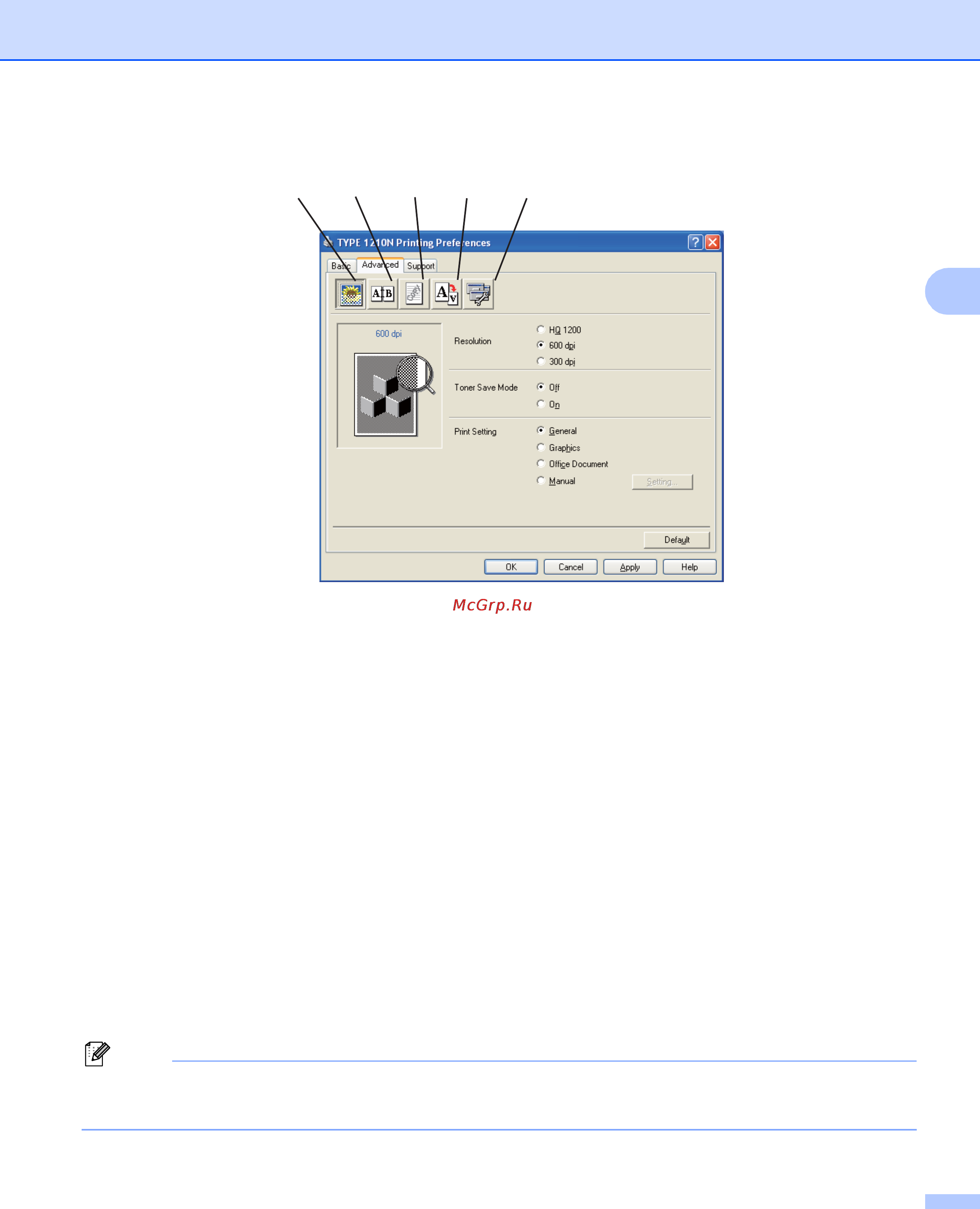

Change the tab settings by clicking one of the following icons:

 Print Quality (1)

 Duplex (2)

 Watermark (3)

 Page Setting (4)

 Device Options (5)

Print Quality 3

 Resolution

You can change the resolution as follows:

•HQ1200

• 600 dpi

• 300 dpi

 Toner Save Mode

You can save running costs by turning on the Toner Save Mode, which reduces the print density (print

appears lighter).

Note

• We do not recommend Toner Save Mode for printing Photo or Greyscale images.

• Toner Save Mode is not available for HQ 1200 resolution.

12 34 5
