Ricoh Aficio SP 1210N [63/129] Replacing the toner cartridge

Routine Maintenance

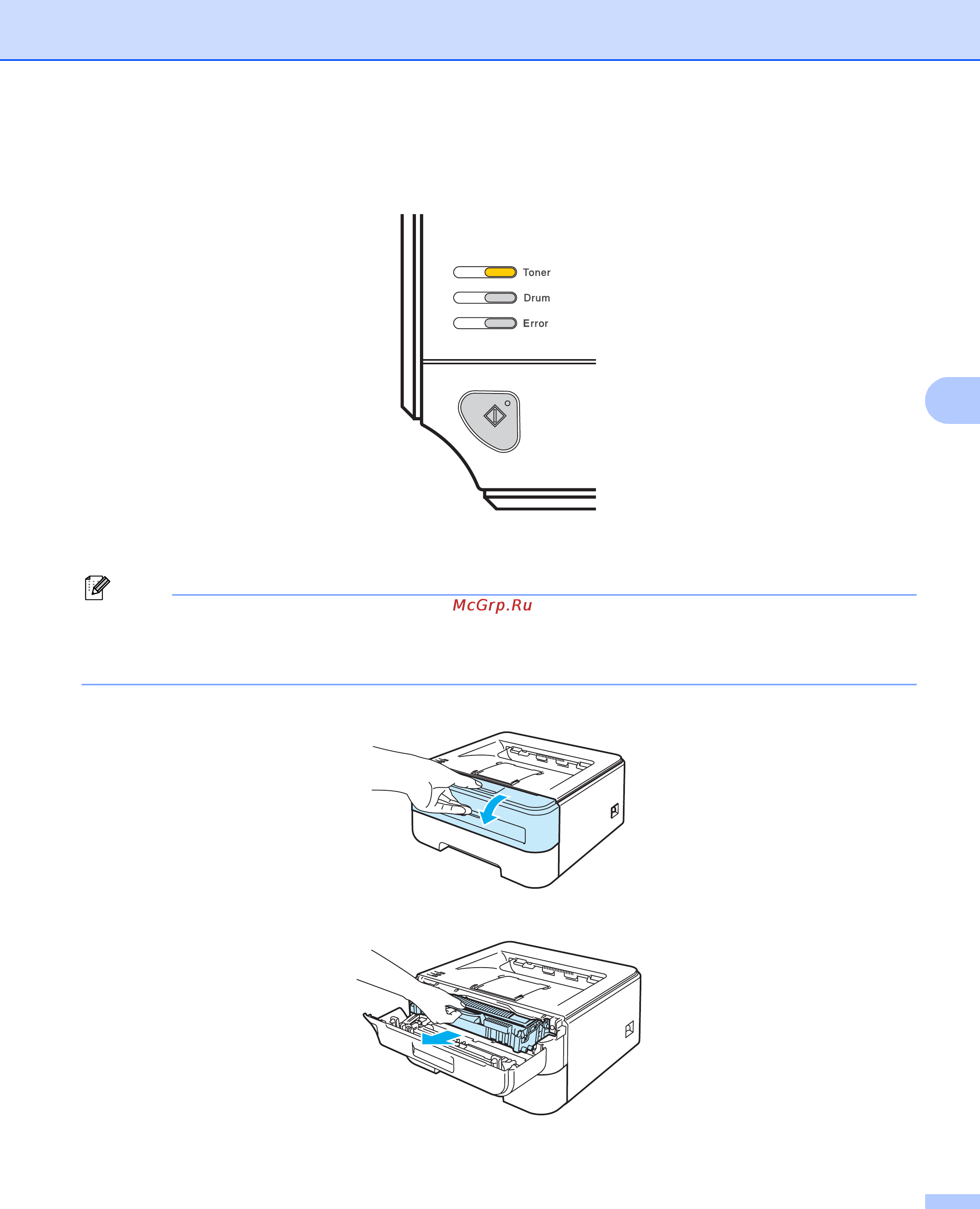

Toner Life End message 5

The printer will stop printing until you replace the toner cartridge with a new one.

Replacing the toner cartridge 5

Note

• To ensure high quality printing, we recommend that you use only genuine toner cartridges. When you want

to buy toner cartridges, call your dealer or Ricoh Customer Service.

• We recommend that you clean the printer when you replace the toner cartridge. See Cleaning on page 65.

a Make sure that the printer is turned on. Open the front cover.

b Take out the drum unit and toner cartridge assembly.
