Troubleshooting

Wrinkles or creases

 Make sure that the paper is loaded properly. See Printing on plain paper and

transparencies from the paper tray on page 9.

 Check the paper type and quality. See About paper on page 5.

 Turn over the stack of paper in the tray or try rotating the paper 180° in the input

tray.

Poor fixing

 Choose Improve Toner Fixing mode in the printer driver. See Improve Print

Output in Advanced tab on page 30.

If this selection does not provide enough improvement, select Thicker paper in

Media type settings.

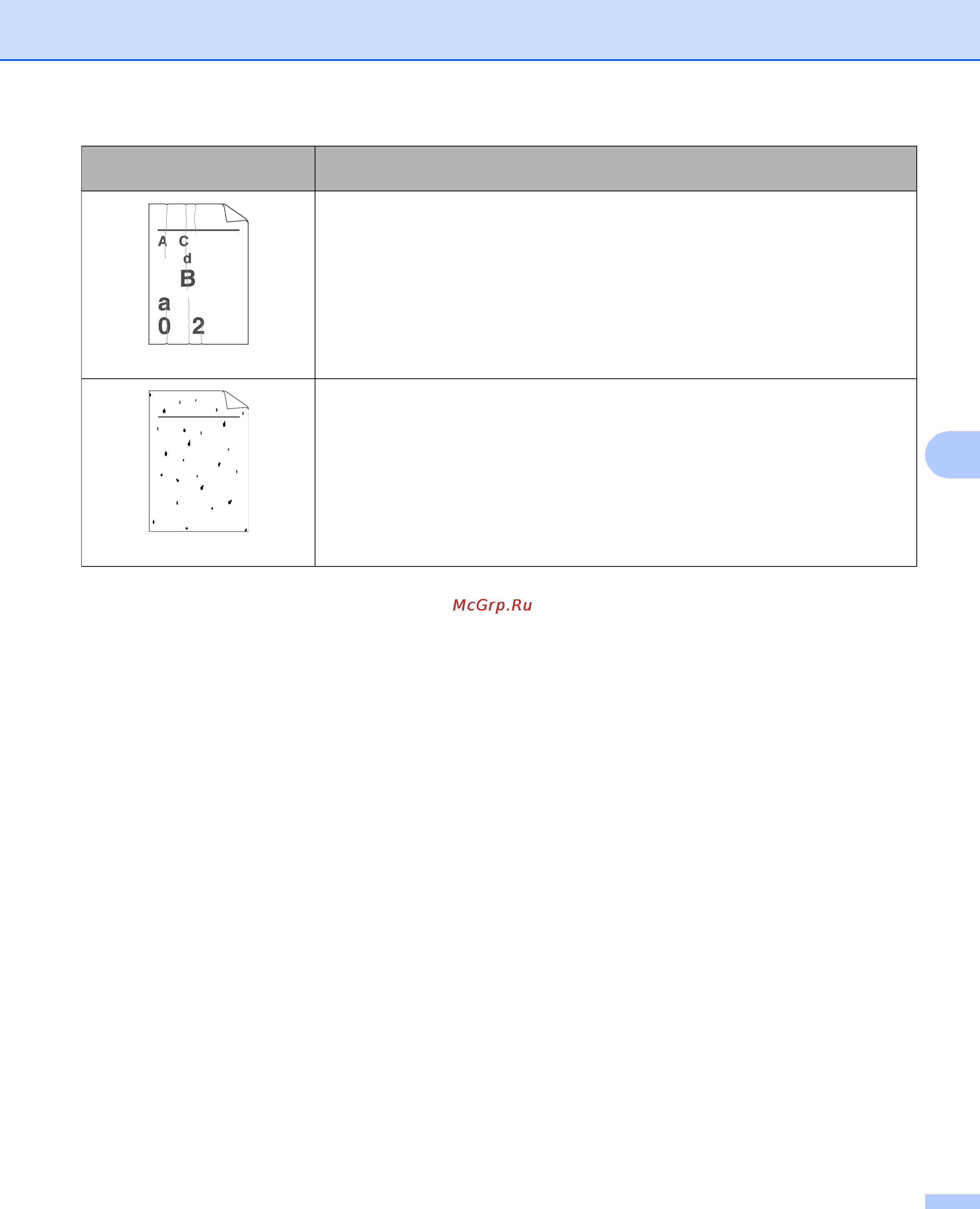

Examples of poor print

quality

Recommendation

B DEFGH

abc efghijk

ACD

bcde

134

ABCDEFGH

abcdefghijk

ABCD

abcde

01234
