Ricoh Aficio SP 1210N [41/129] Device options

Driver and Software

Device Options 3

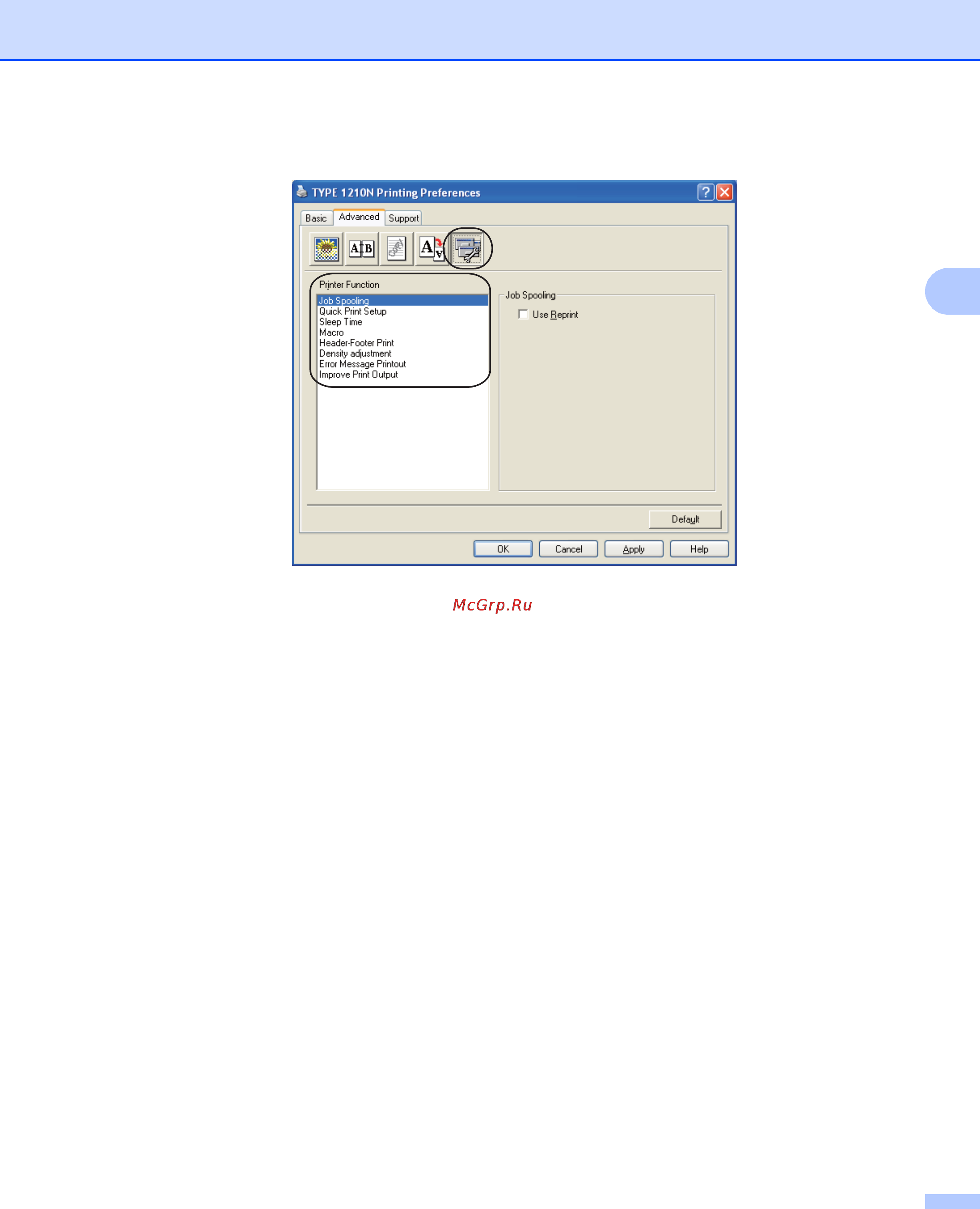

You can set the following in Printer Function:

 Job Spooling

 Quick Print Setup

 Sleep Time

 Macro

 Header-Footer Print

 Density adjustment

 Error Message Printout

 Improve Print Output
