Routine Maintenance

d Wipe the scanner window with a dry, lint-free cloth.

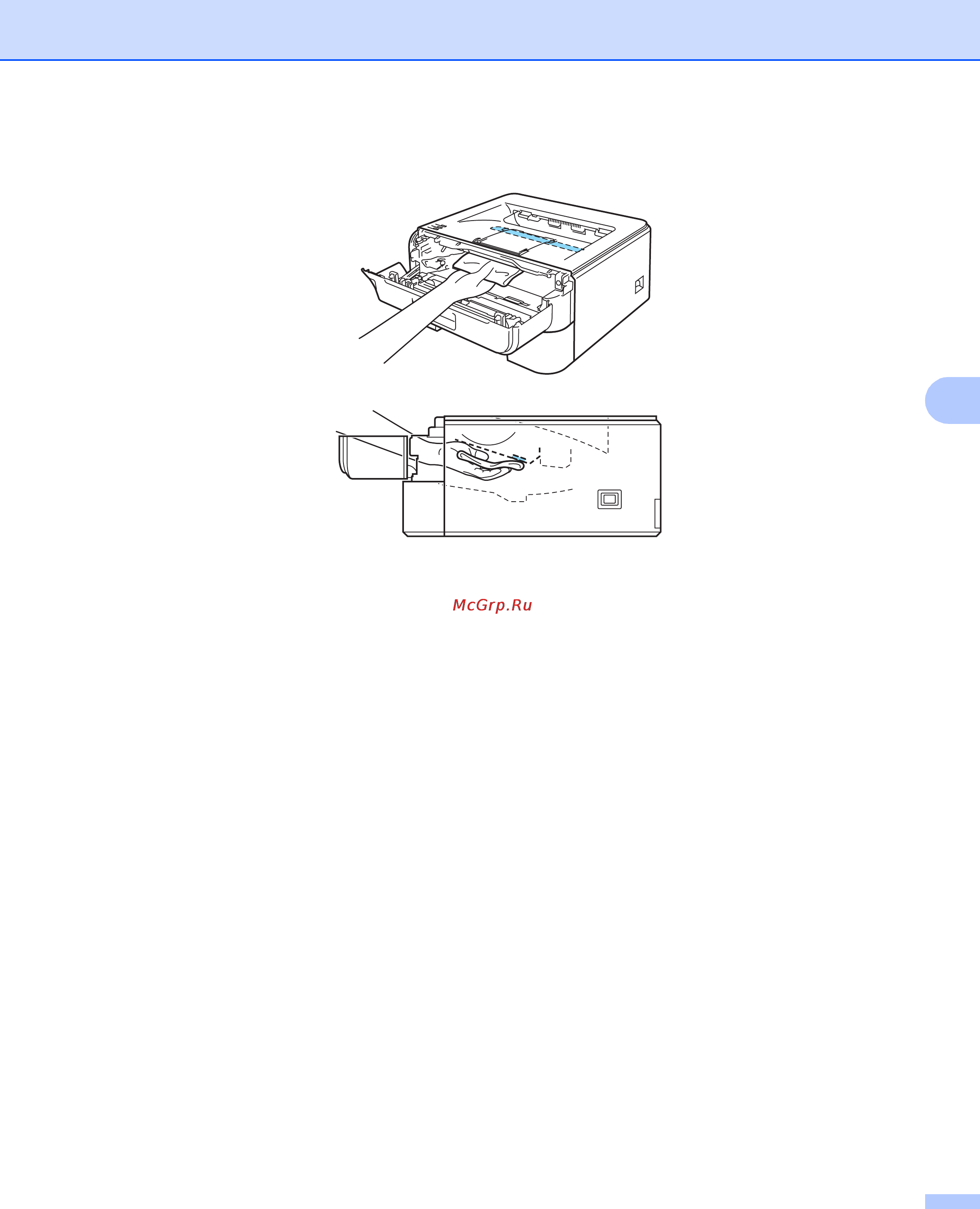

e Put the drum unit and toner cartridge assembly back in the printer.

f Close the front cover.

g Plug the printer back in, and then turn on the power switch.
