Troubleshooting

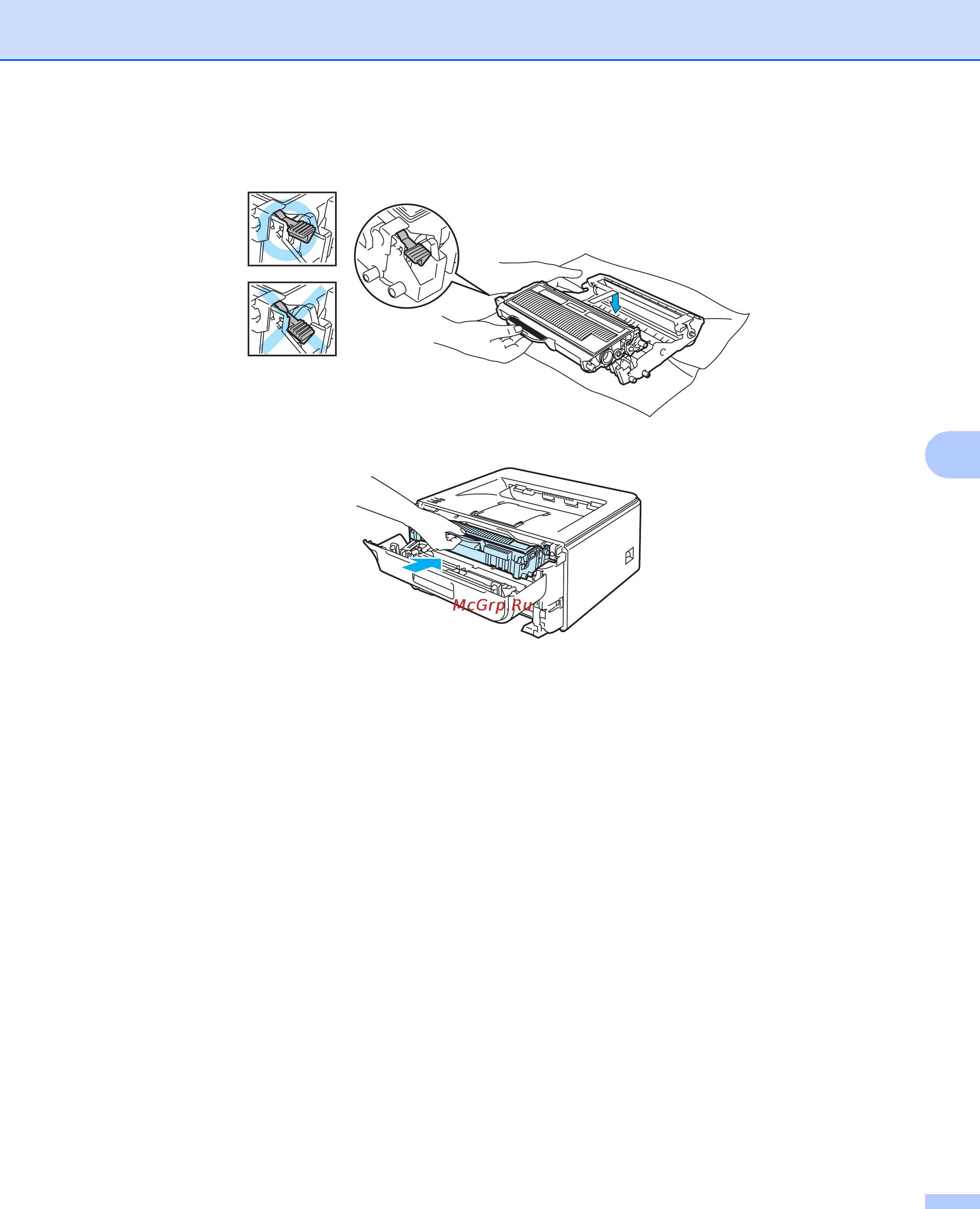

k Put the toner cartridge back into the drum unit until you hear it lock into place. If you put the cartridge in

properly, the green lock lever will lift automatically.

l Open the front cover. Put the drum unit and toner cartridge assembly back in the printer.

m Put the paper tray firmly back in the printer.

n Close the front cover.

o Make sure that the Error LED is now off.
