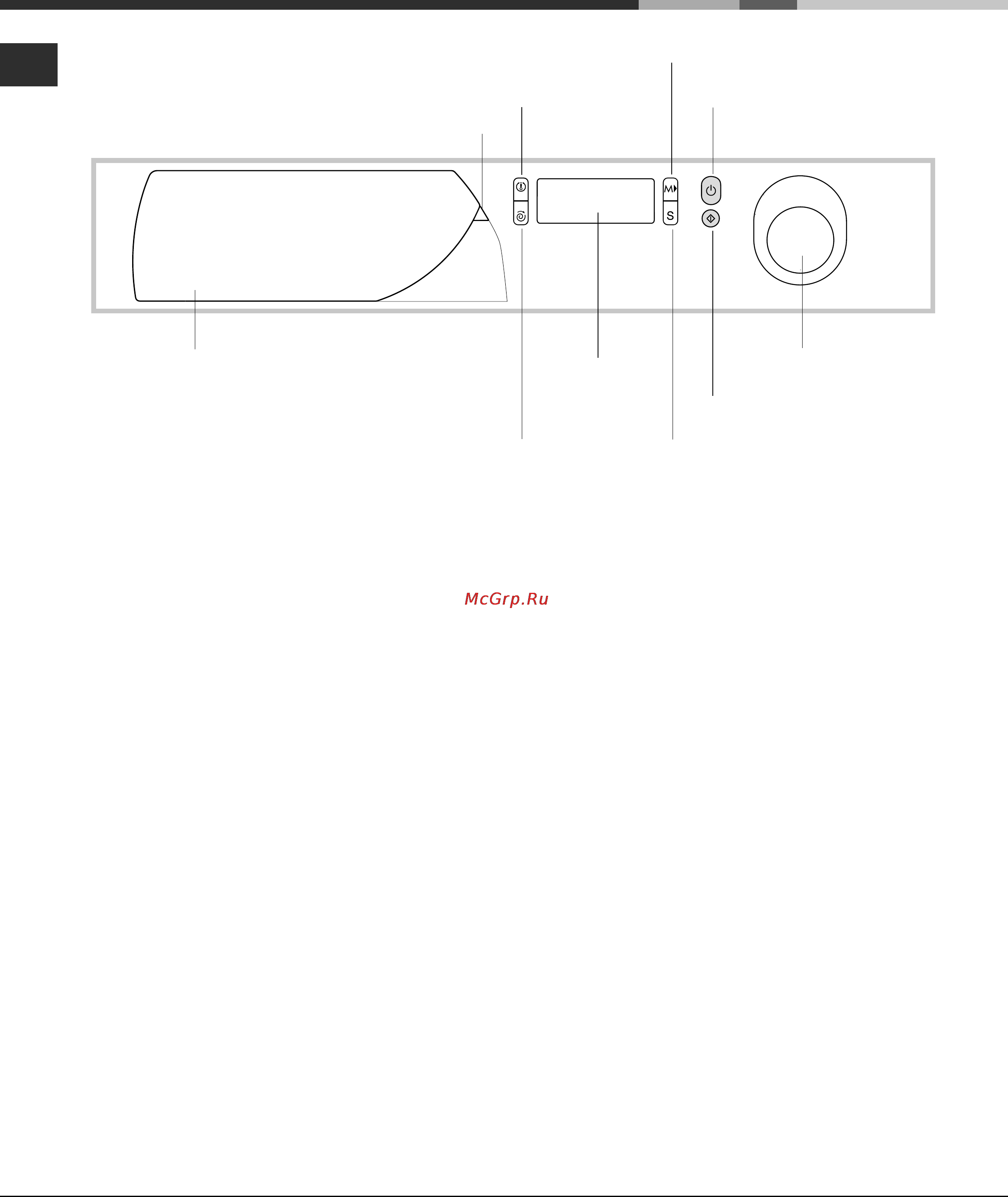

Control panel
Washing machine description
Control knob
Display
Detergent dispenser
Programme key
SPIN
button
TEMPERATURE
button
MODE
button
SELECT
button
START/STOP
button
START/RESET
button
Detergent dispenser to add detergent and fabric
softener (see page 8).
Programme key to consult a straightforward chart
of the different programmes available: pull the grey
tab outwards to open it.
TEMPERATURE button to adjust the wash tempe-
rature (see page 7).
SPIN button to adjust the spin speed or exclude it
altogether (see page 7).
Display to programme the washing machine and
follow the wash cycle progress (see opposite page).
MODE button to choose the options for the
appliance personalisation (see page 7).
SELECT button to set the options for the appliance
personalisation (see page 7).
START/STOP button to turn the washing machine
on and off.
START/RESET button to start the programmes or
cancel any incorrect settings.
Control knob to select the wash programmes. The
retractable control knob: press the centre of the
knob for it to pop out. The knob stays still during the
cycle.
Note: to avoid excessive vibrations, before every spin cycle the machine distributes the load in a uniform manner
by continuously rotating the drum at a speed which is slightly faster than the normal washing speed.
When, despite repeated attempts, the load is still not evenly distributed, the machine spins at a lower speed than
the set frequency.
If the load is excessively unbalanced, the machine attempts to distribute it instead of spinning.
The balancing attempts may extend the total duration of the cycle, up to a maximum of 10 minutes.
