Troubleshooting by Indication on the Remote Controller Si39-501
204 Troubleshooting
3.28
“
J7
”
Malfunction of Receiver Outlet Liquid Pipe
Thermistor (R6T)
Remote
Controller
Display
J7
Applicable
Models
RXQ5MA~48MA
Method of
Malfunction
Detection
Malfunction is detected according to the temperature detected by receiver outlet liquid pipe
thermistor.
Malfunction
Decision
Conditions
When the receiver outlet liquid pipe thermistor is short circuited or open.
Supposed
Causes
Faulty receiver outlet liquid pipe thermistor (R6T)
Faulty outdoor unit PC board

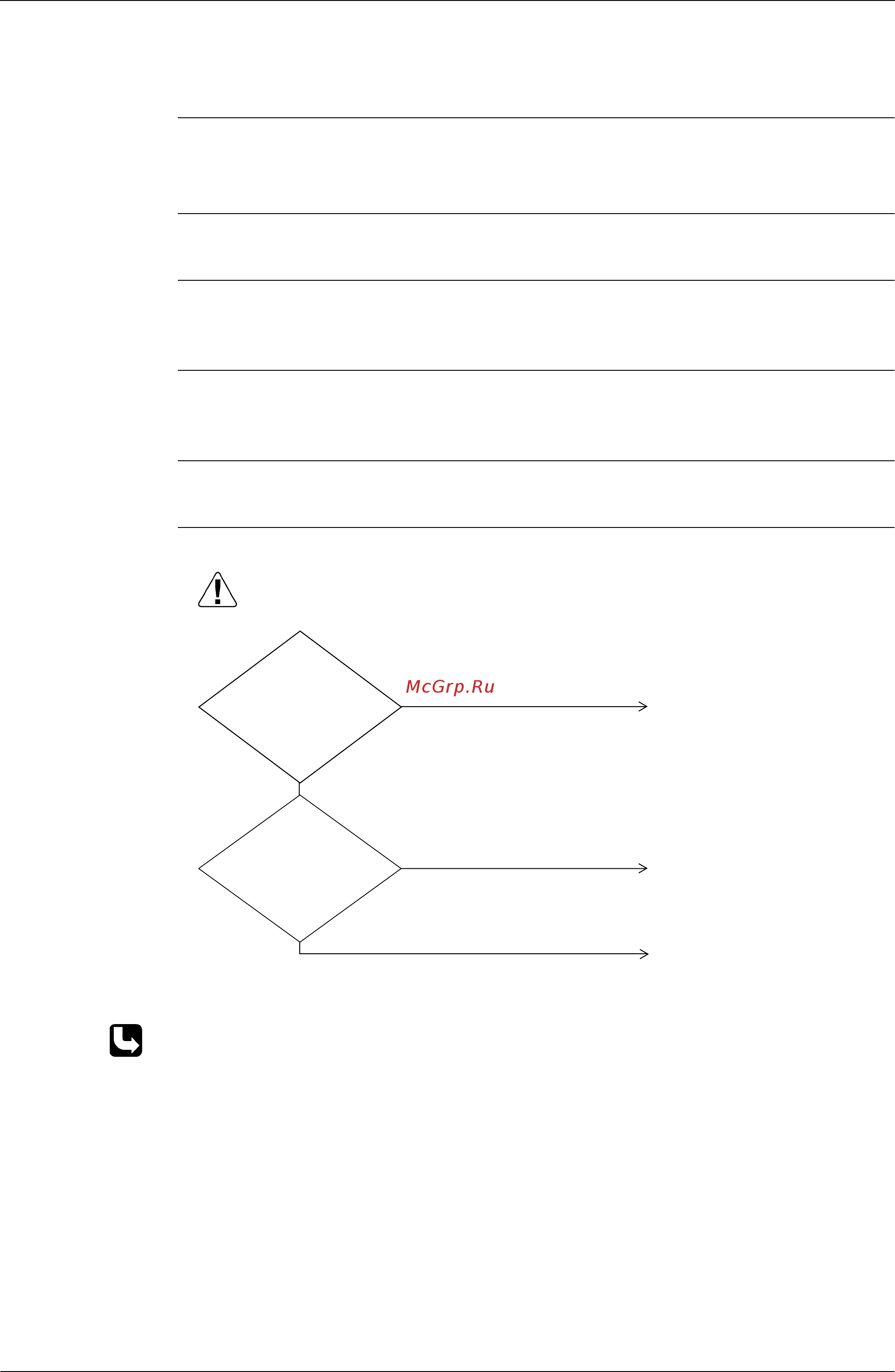

Troubleshooting
∗2: Refer to “Thermistor Resistance / Temperature Characteristics” table on P312.
(V3075)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Is the
resistance
measured after
removing the thermistor
(R6T) from outdoor unit PC
board normal?
(3.5 kΩ to
360 kΩ)
Replace outdoor unit PC board
(A1P).
Connect the connector and
operate unit again.
NO
NO
Replace thermistor (R6T).
YES
YES
Is
the connector
for receiver outlet
liquid pipe thermistor
connected to X37A on
outdoor unit PC
board (A1P)?
