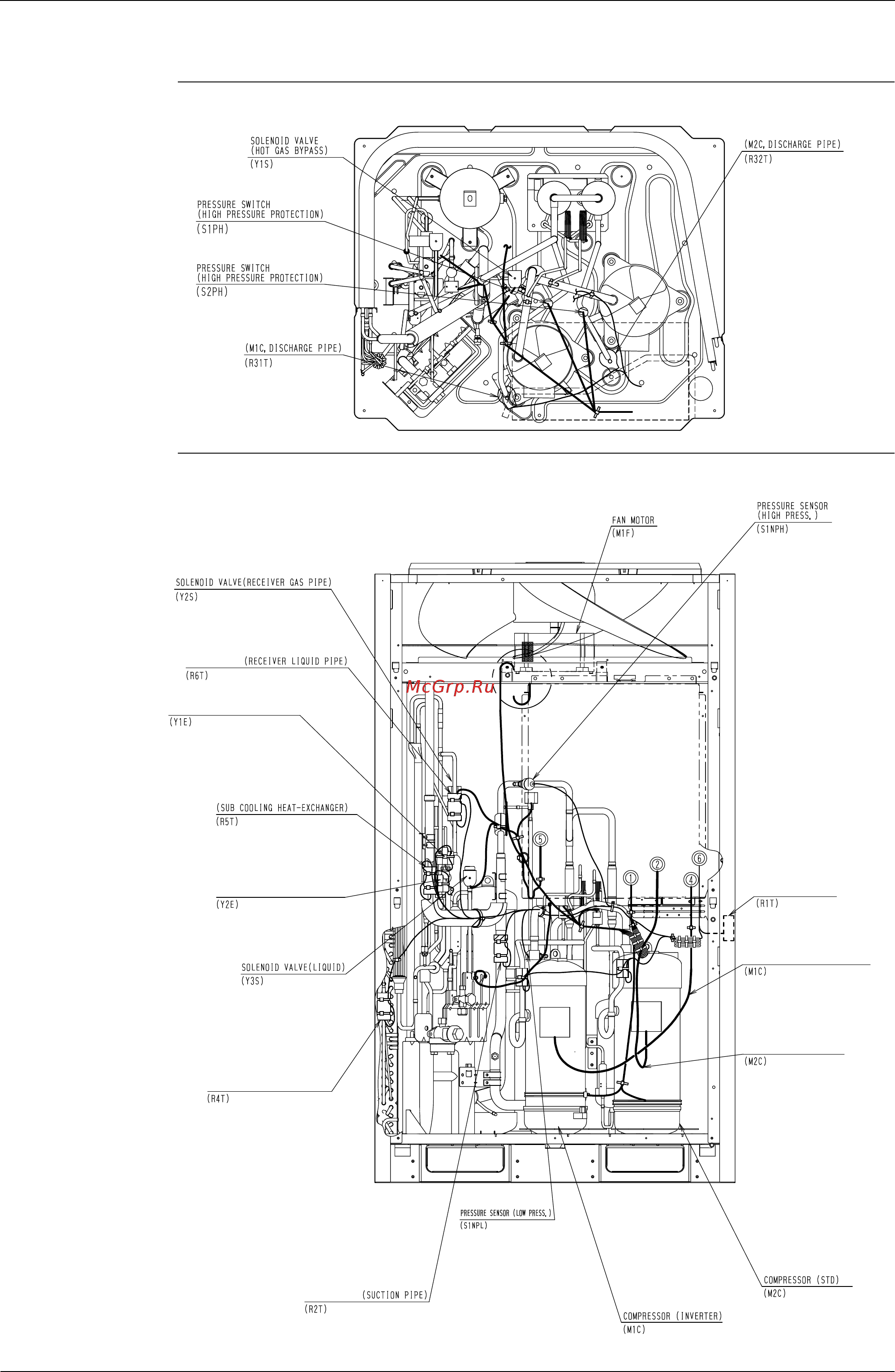

Functional Parts Layout Si39-501
62 Refirgerant Circuit
2.2 RXQ8MA, 10MA, 12MA
Plan
Front View
THERMISTOR
THERMISTOR
THERMISTOR
COIL FOR EXPANSION VALVE
THERMISTOR
COIL FOR EXPANSION VALVE
THERMISTOR
(HEAT EXCHANGER OUTLET)
THERMISTOR
COMP. LEAD WIRE (STD)
COMP. LEAD WIRE (INVERTER)
THERMISTOR (AIR)
